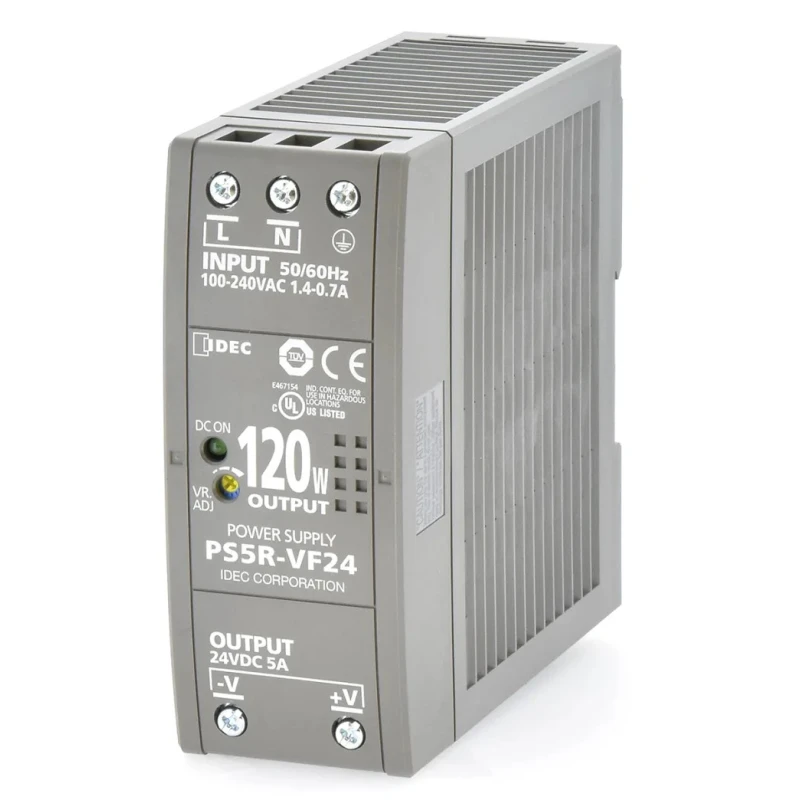

Idec Switched Mode DIN Rail Power Supply 24V DC, 5A Output, 120W, Universal AC/DC Input PS5R
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Idec |
| Power | 120W |
| Efficiency | 89% |
| Height | 115mm |
| Model | PS5R |
| Depth | 121mm |
| IP Rating | IP20 |
| Width | 46mm |
| Series | PS5R |
| Output Current | 5A |
| Maximum Operating Temperature | 65°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Electrical Phase | 1 |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Supports universal AC and DC input voltage ranges for versatile installation.
- Compact and slim design saves panel space and supports six mounting directions.
- High efficiency of up to 89% reduces energy consumption.
- Wide operating temperature range from -25°C to 65°C suits various industrial environments.
- Equipped with overcurrent protection with auto-reset for safety.
- LED status indicator provides visual operation feedback.
- Spring terminals accommodate wires up to 2.5 mm² for secure connections.
- IP20 rated enclosure offers protection against solid objects.
Product Description
Idec PS5R switched mode DIN rail power supply (model PS5R) offers a robust 24V DC output at 5A and a total power of 120W with universal AC/DC input voltage compatibility ranging from 85VAC to 264VAC and 100VDC to 370VDC. It is designed to optimize panel space with a compact profile measuring 115mm height, 46mm width, and 121mm depth and can be mounted in six directions for flexible installation.
This power supply features high energy efficiency of up to 89%, reducing operational costs and heat generation, making it suited for demanding industrial environments. It operates reliably within a temperature range of -25°C to 65°C and includes overcurrent protection with auto-reset to ensure device safety during electrical faults.
The device is equipped with spring terminals supporting wires up to 2.5 mm² and provides a ripple factor and noise level of approximately 4%. An LED status indicator allows quick visual confirmation of operating condition. The enclosure has an IP20 rating, providing protection against solid foreign objects.
This model complies with a broad set of standards and certifications including ANSI/ISA, EN 61204-3, CE, TUV, CSA C22.2 No 107.1.213.223, cULus, EN 50178, EN 60950-1, UL 508, and UL 310, ensuring it meets global safety and reliability requirements.
Applications include industrial automation, process control, industrial controls, and power management across manufacturing and commercial equipment. This power supply is built for high reliability and longer mean time between failures (MTBF), suited for continuous operation in industrial setups.
Supports universal AC/DC input voltage ranges for versatile installation. Compact and slim design saves panel space and supports six mounting directions. High efficiency of up to 89% reduces energy consumption. Wide operating temperature range from -25°C to 65°C suits various industrial environments.
Equipped with overcurrent protection with auto-reset for safety. LED status indicator provides visual operation feedback. Spring terminals accommodate wires up to 2.5 mm² for secure connections. IP20 rated enclosure offers protection against solid objects.
Certified to multiple international standards including CE, UL, CSA, TUV, and ANSI. Ideal for industrial automation, process control, and power management applications. Explore more power supplies and DIN rail equipment on EnvMart to meet your industrial automation and electrical distribution needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a maximum output current of 5A.
The efficiency rating of this power supply is up to 89%.
The dimensions of this model are 115mm in height, 46mm in width, and 121mm in depth.
It operates reliably within a temperature range of -25°C to 65°C.
It is equipped with overcurrent protection that features auto-reset for safety.
This model uses spring terminals that accommodate wires up to 2.5 mm² for secure connections.
The enclosure has an IP20 rating, providing protection against solid foreign objects.
This power supply complies with multiple certifications including CE, UL, CSA, TUV, and ANSI.
It is suitable for applications in industrial automation, process control, and power management.
The ripple factor and noise level of the power supply is approximately 4%.
