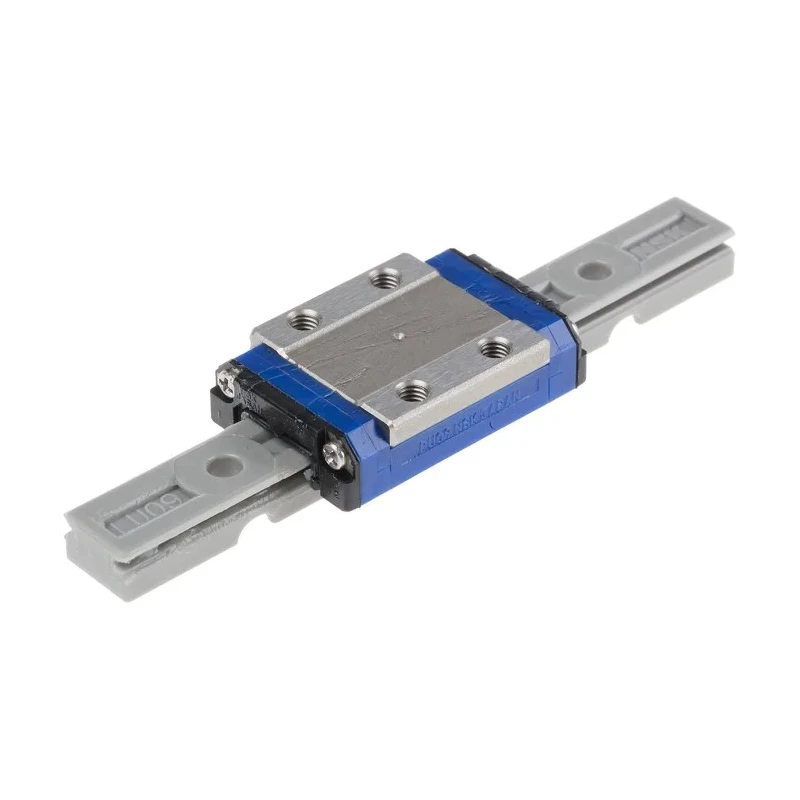

NSK Linear Guide Carriage Polyurethane Series 30mm Length 20mm Width 1490N Dynamic Load PAU09TRS

NSK PAU09TRS Linear Guide Carriage Polyurethane Series features a dynamic load rating of 1490 N, carriage length of 30mm, and carriage width of 20mm. This new linear guide carriage is designed for high precision linear motion applications in industrial environments such as measuring instruments, semiconductor manufacturing, computer peripherals, and medical instrumentation.

The PU series is fully interchangeable with the LU Series, maintaining identical mounting dimensions and load ratings, facilitating easy replacement or upgrades. It incorporates resin ball recirculation components to improve dynamic friction characteristics, generating smoother motion and reducing noise levels significantly.

Enhanced engineering includes superior dust proofing, low dust generation during operation, and high corrosion resistance due to its use of martensite stainless steel as standard, extending service life in demanding environments. The ball slide weighs approximately 20% less than comparable models, attributable to the strategic use of resin in its body construction, resulting in reduced inertia and enhanced efficiency.

Key design features include retainers to prevent ball loss when the carriage is removed from the rails, ensuring assembly safety and ease of maintenance. This Linear Guide Carriage is offered with a variety of common rail sizes, all featuring stainless steel materials for robust industrial use.

Common industrial applications include precision equipment such as measuring instruments, semiconductor wafer handling systems, computer peripheral automation, medical devices, and office automation machinery. Its smooth, quiet operation and high stiffness aid in achieving superior product quality and equipment reliability.

This carriage series is interchangeable with the LU Series for its mounting dimensions and load ratings. Resin ball recirculation components improve dynamic friction characteristics and reduce noise. Enhanced dust proofing and low dust generation increase durability.

High corrosion resistant martensite stainless steel construction. Ball slide is about 20% lighter than conventional models due to resin application. Retainer prevents ball loss when the carriage is removed from the rails.

Range of common rail sizes available with stainless steel construction. Complies with ISO basic load rating standards for reliable performance. Explore more industrial mechanical components and linear guides at EnvMart to optimize your precision machinery and automation systems.
