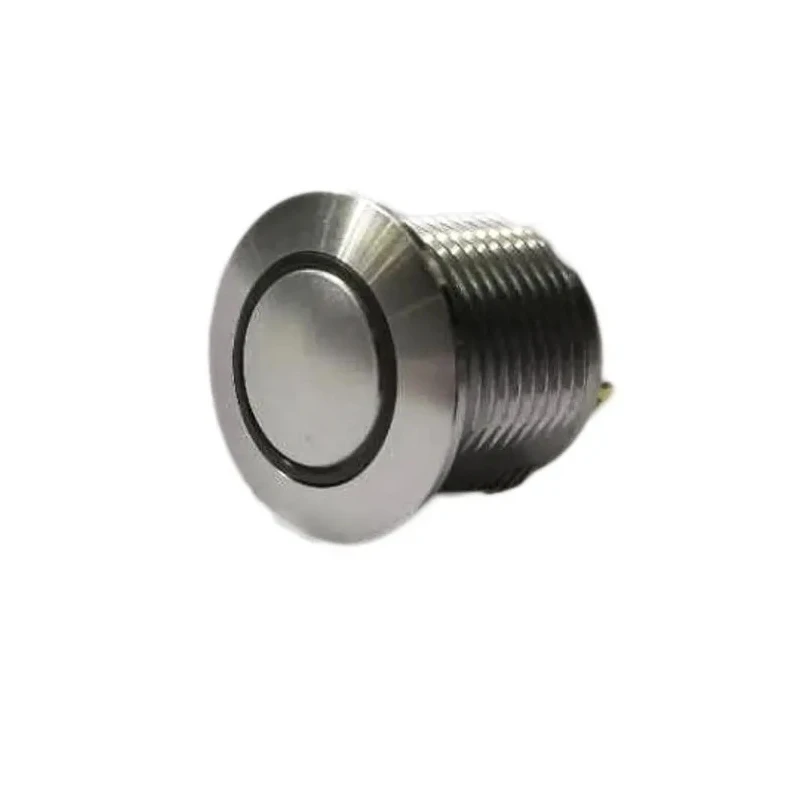

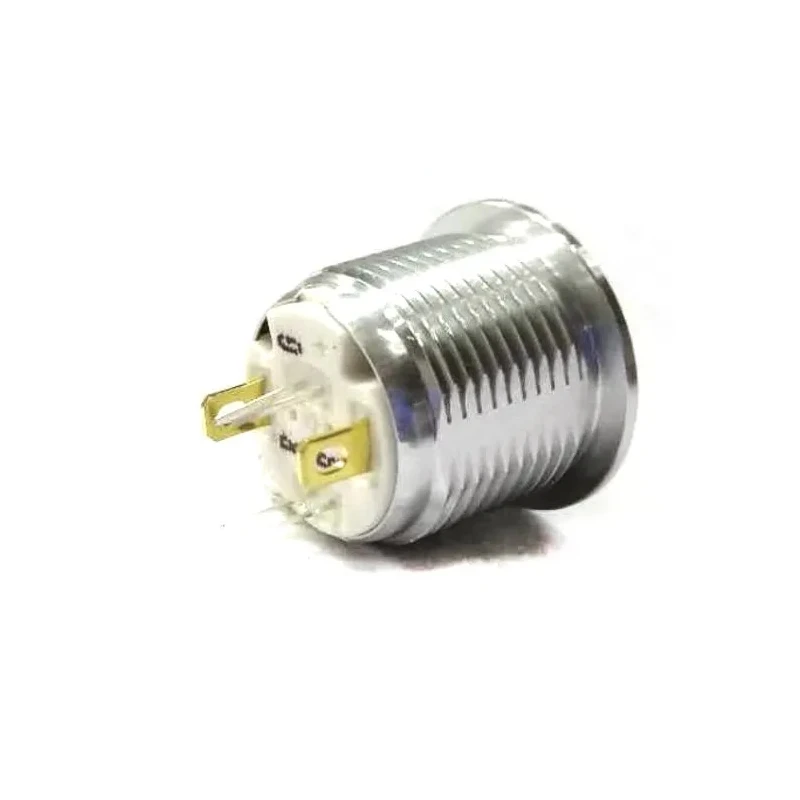

RS PRO Illuminated Momentary Push Button Switch Panel Mount 16 mm Cutout SPST RGB LED IP67 36V dc 175-9518

Name: RS PRO Illuminated Momentary Push Button Switch Panel Mount 16 mm Cutout SPST RGB LED IP67 36V dc 175-9518
Brand: RS PRO
SKU: 415612
Price: 2296.17 INR
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	175-9518
IP Rating	IP67
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	16 mm
Terminal type	Solder
Standards/Approvals	UL 94 V-0, UL 94 V-2
LED Colour	Blue, Green, Red
Switch Operation	Momentary
Contact DC Voltage	36V dc
Actuator Style	Round
Switch Contact Current	2A

Key Features

The switch operates in momentary mode for precise control applications.
Panel mount design with a 16 mm cutout ensures easy installation.
RGB LED provides blue, green, and red illumination options.
Constructed with a round actuator style for ergonomic use.
IP67 rating offers robust protection against dust and water.
Functions under a contact DC voltage of 36 V dc and supports 2A contact current.
Suitable for extreme temperatures from -20°C to 70°C.
Terminals use solder type connections for secure wiring.

Product Description

RS PRO 175-9518 is an illuminated momentary push button switch designed for panel mounting with a 16 mm cutout size. It features Single Pole Single Throw (SPST) contact configuration and an RGB LED available in blue, green, and red colors. The switch is rated IP67, offering excellent dust and water ingress protection, making it suitable for harsh environments.

The round actuator style and solder terminal type facilitate easy integration into control panels and electronic devices. Operating at 36 V dc contact voltage with a switch contact current rating of 2A, it supports reliable switching performance within industrial controls, medical instruments, security monitoring, and audio-visual systems.

This push button switch operates reliably within a temperature range from -20°C up to 70°C and complies with UL 94 V-0 and UL 94 V-2 flame retardant standards. The robust metal construction ensures corrosion resistance, lightweight handling, and efficient heat dissipation, enhancing durability and lifetime even under continuous use.

The IP67 rating enhances its utility in applications subject to moisture and contaminants, affirming its vandal resistance commonly required in public and industrial environments. This switch series offers a wide variety of sizes and configurations for customized industrial control needs.

The switch operates in momentary mode for precise control applications. Panel mount design with a 16 mm cutout ensures easy installation. RGB LED provides blue, green, and red illumination options. Constructed with a round actuator style for ergonomic use.

IP67 rating offers robust protection against dust and water. Functions under a contact DC voltage of 36 V dc and supports 2A contact current. Suitable for extreme temperatures from -20°C to 70°C. Terminals use solder type connections for secure wiring.

Complies with UL 94 V-0 and UL 94 V-2 standards for flame retardancy. Designed for industrial, medical, security, and audio-visual equipment applications. Explore RS PRO Push Button Switches and related products in the Electronics & Electricals category at EnvMart for reliable industrial and commercial solutions.
