TE Connectivity PCB Signal Relay 12V DC Coil 2A DPDT IM06DGR 1-1462039-8

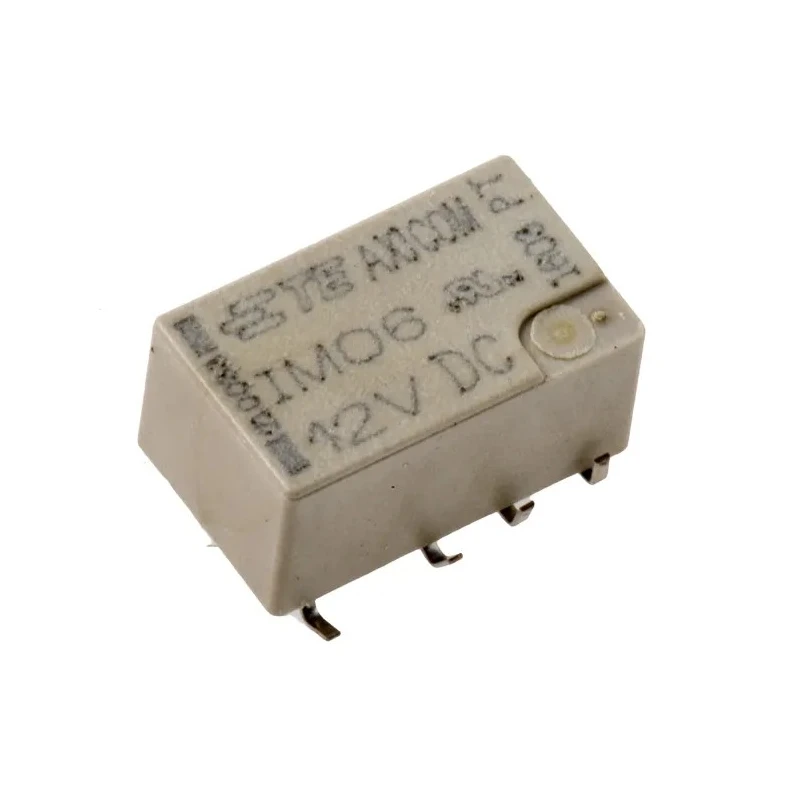

TE Connectivity IM06DGR 1-1462039-8 PCB Signal Relay is a high-performance DPDT non-latching relay designed for reliable signal switching in electrical and automation applications. It features a 12V DC coil voltage and supports a 2A switching current, making it suitable for a wide range of industrial and telecommunications uses. This relay has a slimline, low-profile design with surface mount gull-wing terminals that facilitate seamless PCB mounting.

The relay contacts are gold-plated and bifurcated for superior conductivity and longevity. With its hermetically sealed construction, the relay is protected against environmental contaminants, ensuring consistent performance under rigorous conditions. It withstands mechanical shocks up to 300G during operation and up to 500G survival levels, guaranteeing durability in industrial environments.

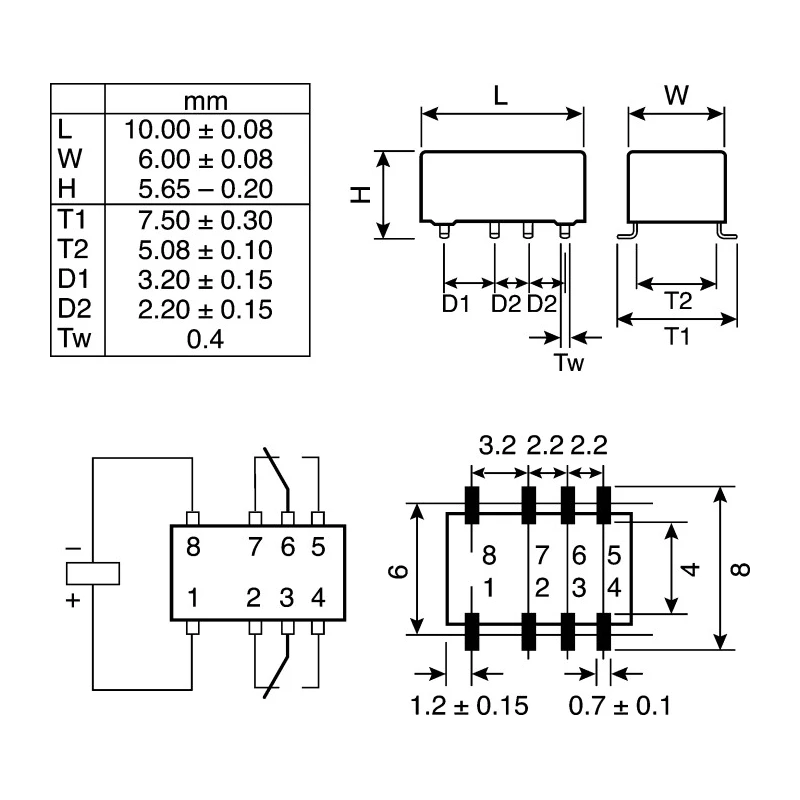

Designed to operate reliably across a temperature range of -40°C to 85°C, it is compliant with RoHS standards, affirming its eco-friendly manufacture. The coil power consumption is low at 140mW with a coil resistance of 1.029 kΩ, contributing to efficient power usage. The relay's compact dimensions (length 10mm, width 7.5mm, height 5.65mm) make it an excellent choice for space-constrained circuit boards.

Coil voltage of 12V DC ensures low power consumption. Dual Pole Double Throw (DPDT) contact configuration suits versatile circuit connections. Compact PCB mount with a slimline low profile design. Gold-plated bifurcated contacts offer high reliability and conductivity.

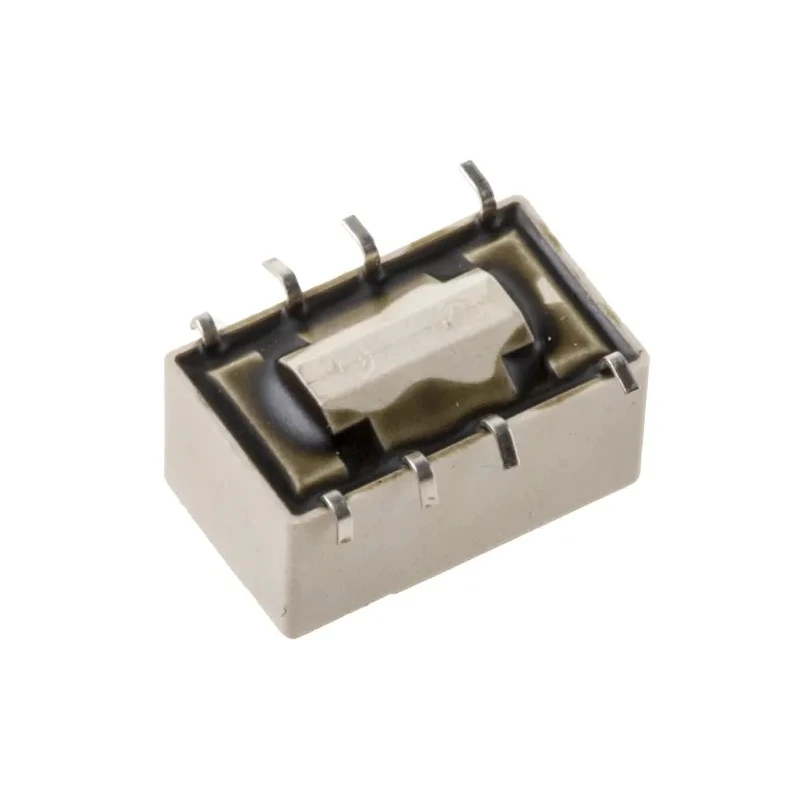

Surface mount terminal type with gull-wing legs for easy PCB integration. Operational temperature range from -40°C to 85°C for harsh environments. Coil power consumption is 140mW with a coil resistance of 1.029 kΩ. Hermetically sealed construction enhances durability and performance.

High mechanical shock resistance up to 300G functional and 500G survival. RoHS compliant for environmentally safe usage.

This Signal Relay is ideal for industrial automation, telecommunications, manufacturing equipment, and PCB assemblies requiring reliable signal switching. It integrates seamlessly into control panels and electronic devices, improving operational efficiency and longevity.
