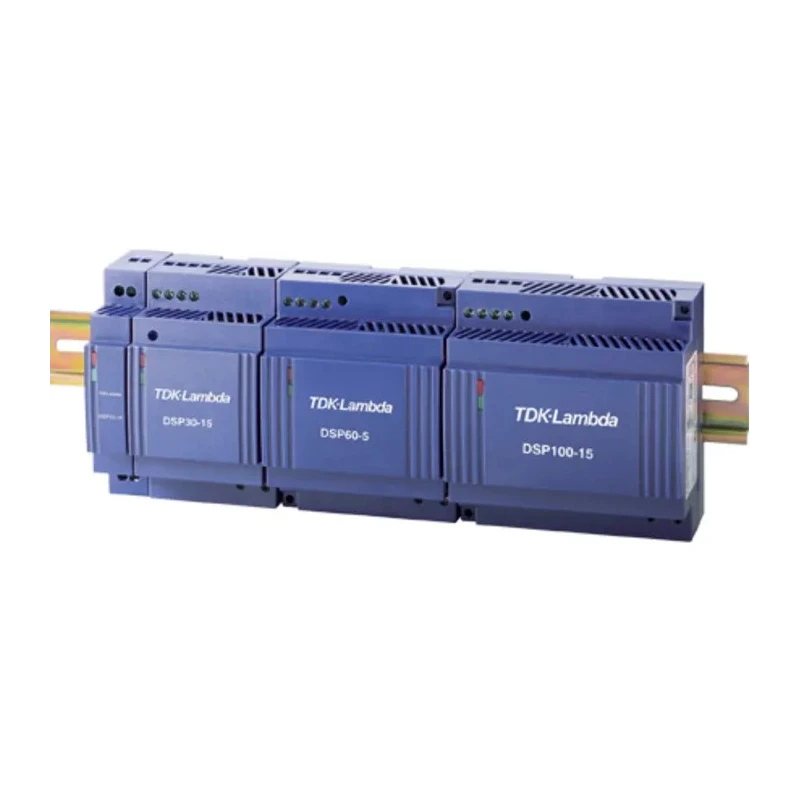

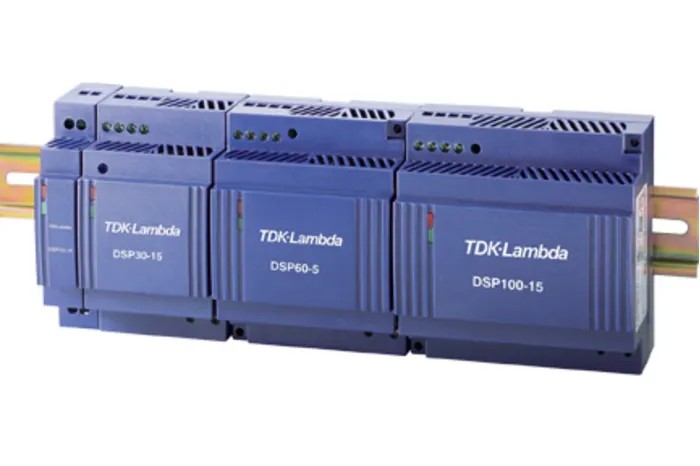

TDK-Lambda DSP Switched Mode DIN Rail Power Supply 12V DC, 4.5A Output, 60W DSP-60-12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TDK-Lambda |
| Power | 60W |
| Efficiency | 84% |
| Height | 91mm |
| Model | DSP-60-12 |
| Depth | 55.6mm |
| Width | 71mm |
| Series | DSP |
| Output Current | 4.5A |
| Maximum Operating Temperature | 71°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Electrical Phase | 1 |
| Standards/Approvals | UL 508, UL 60950-1, UL 94 V-0, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-6, UL 1310 Class 2, EN 61000-3-3, EN 61000-3-2, EN 60950-1, EN 55022, CE |
| Maximum Output Voltage | 12V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- Supports wide AC/DC input voltage range with maximum input voltage of 370 V DC and 264 V AC.
- Single output power supply suitable for building automation systems.
- Convection cooled with low profile design for easy DIN rail or chassis mounting.
- Operates reliably within temperature range from -25°C to 71°C.
- High efficiency at 84% to reduce energy losses and heat generation.
- Complies with multiple international standards including UL 508, UL 60950-1, and CE certification.
- Double insulated construction ensuring safety and durability in industrial environments.
Product Description
TDK-Lambda DSP-60-12 is a switched mode DIN rail power supply designed to provide stable DC power for various industrial and automation applications. It offers a maximum output voltage of 12V DC and supports an output current of 4.5A, delivering 60W of power.
This power supply supports a wide input voltage range accommodating both AC and DC inputs, with a maximum voltage of 370 V DC and 264 V AC, and a minimum input voltage of 90 V AC. Its double insulation and UL 94 V-0 rated material contribute to enhanced safety and reliability in electrical installations.
The device operates efficiently at 84%, ensuring minimal energy loss and reduced operating temperatures. It performs reliably across a broad temperature range from -25°C to 71°C, making it suitable for demanding industrial environments including building automation and manufacturing equipment.
The TDK-Lambda DSP-60-12 features a low profile, compact design with dimensions of 91mm in height, 71mm in width, and 55.6mm in depth. It is convection cooled and can be mounted easily on DIN rails or chassis, providing installation flexibility.
Wide AC/DC input voltage range compatible with industrial power systems. Single 12V DC output with 4.5A current capacity. Compact and low profile for efficient space utilization. Robust compliance with multiple international safety and EMC standards.
Suits building automation, industrial control panels, and electrical enclosures. Convection cooling for maintenance-free operation. Durable and double insulated housing for enhanced protection.
This power supply is an optimal choice for industrial, laboratory, and commercial applications requiring reliable and efficient DC power. Browse more TDK-Lambda power supplies and related products on EnvMart for comprehensive industrial electrical solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 12V DC.
It operates with an efficiency of 84%.
The maximum input voltage is 370V DC and 264V AC.
This unit has an output current capacity of 4.5A.
The dimensions are 91mm in height, 71mm in width, and 55.6mm in depth.
It operates reliably within a temperature range from -25°C to 71°C.
It complies with multiple international standards including UL 508, UL 60950-1, and CE certification.
This model is convection cooled, allowing for maintenance-free operation.
It is suitable for building automation systems and industrial control panels.
This power supply has a single output.
It is a switched mode DIN rail power supply.
The country of origin is Taiwan.
