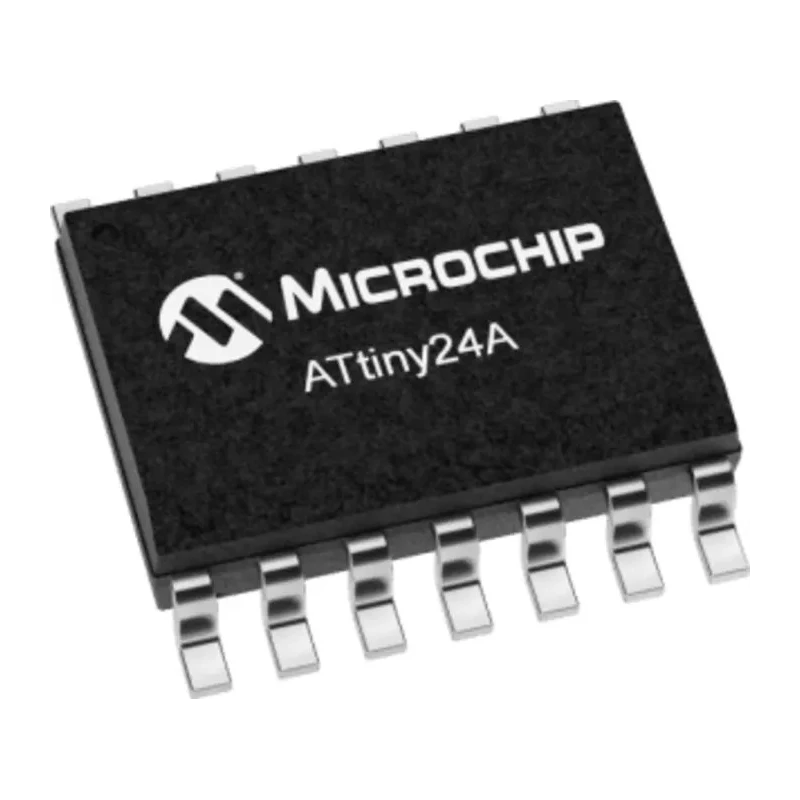

Microchip 8 bit AVR ATTINY24A Microcontroller 20 MHz, 2kB FLASH, 14-Pin SOIC ATTINY24A-SSUR

Microchip ATTINY24A-SSUR is a high-performance 8-bit AVR RISC-based microcontroller designed for compact embedded applications. Operating at a maximum frequency of 20 MHz, it features 2kB ISP flash memory combined with 128 bytes EEPROM and 128 bytes SRAM, providing ample memory capacity for diverse applications.

This microcontroller employs an advanced RISC architecture with 120 powerful single-cycle instructions, allowing efficient and fast processing for industrial, laboratory, and embedded systems. It includes 12 general purpose programmable I/O lines facilitating flexible interfacing capabilities.

Equipped with an 8-channel 10-bit analog-to-digital converter (ADC) featuring programmable gain, it supports precise analog signal measurements. The device also contains one analog comparator and dual timers - an 8-bit timer with two PWM channels and a 16-bit timer with two PWM channels - ideal for timing and control applications.

The power supply voltage ranges from 1.8V to 5.5V, suitable for low-voltage embedded designs. The operating temperature range extends from -40°C up to 85°C, making it reliable for both commercial and industrial temperature environments.

The microcontroller is offered in a compact 14-pin SOIC surface mount package with physical dimensions approximately 8.74 mm length, 3.99 mm width, and 1.5 mm height, enabling efficient PCB layout in space-constrained applications.

Typical industries and use cases include smart sensors, industrial controllers, consumer electronics, and embedded system prototyping. The device supports SPI interface communication for peripheral connectivity.

Features 8-bit AVR architecture with RISC instruction set. Includes 2kB ISP flash memory for program storage. Operates with maximum clock frequency of 20 MHz. Equipped with 128 bytes of EEPROM and 128 bytes of SRAM. Supports 12 programmable general purpose input/output pins.

Has 8-channel 10-bit ADC with programmable gain stage. Includes 8-bit and 16-bit timers with PWM channels. Operates between supply voltage range 1.8V to 5.5V. Works within temperature range -40°C to 85°C. Packaged in 14-pin SOIC surface mount package.

This Microchip Microcontroller is a reliable choice for embedded system developers seeking efficient processing and versatile I/O capabilities in a small footprint. Explore more Microcontrollers and electronic components on EnvMart for your design and manufacturing needs.
