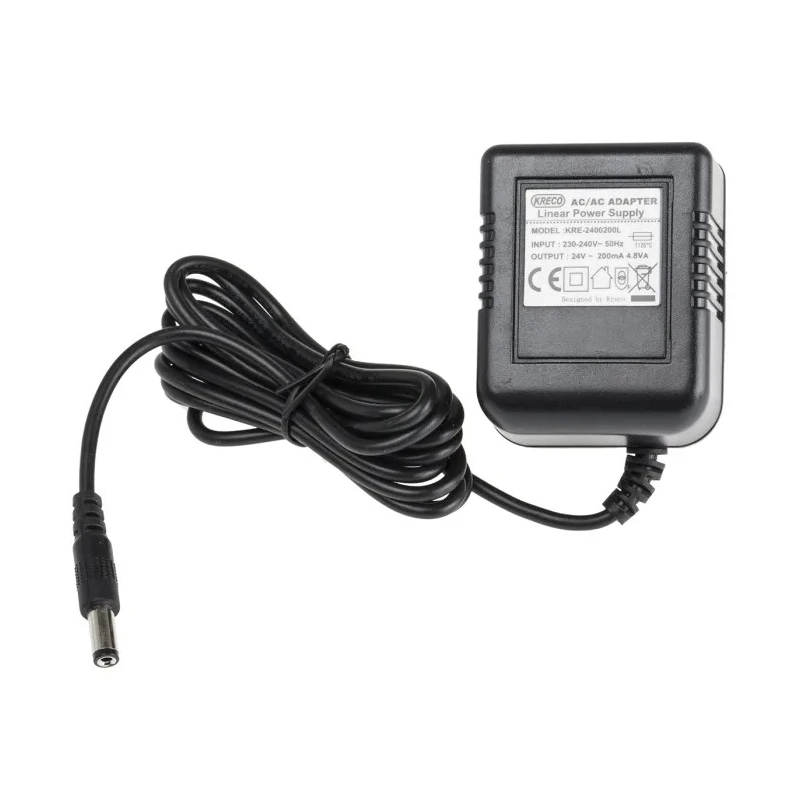

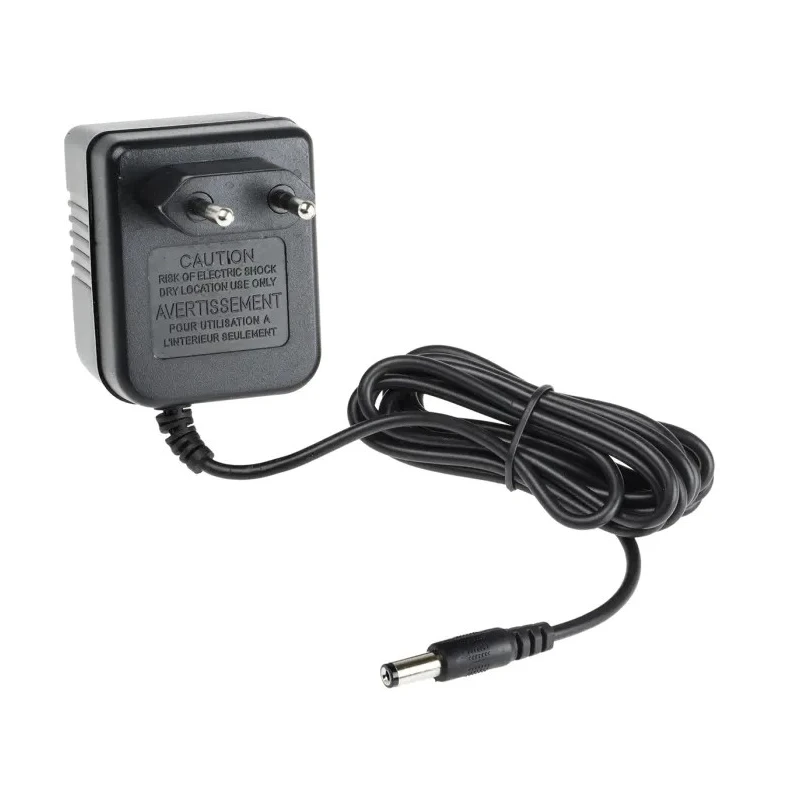

RS PRO 5 W 24V AC Output AC/AC Adapter Type C Plug 2.1 x 5.5 x 12 mm Centre Positive 200 mA 139-1766

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 5 W 24V AC Output AC/AC Adapter Type C Plug 2.1 x 5.5 x 12 mm Centre Positive 200 mA 139-1766

Name: RS PRO 5 W 24V AC Output AC/AC Adapter Type C Plug 2.1 x 5.5 x 12 mm Centre Positive 200 mA 139-1766
Brand: RS PRO
SKU: 414373
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Power	5W
Length	62mm
Model	139-1766
Depth	42mm
Cable Length	1.8m
Width	51mm
Series	RS PRO
Maximum Operating Temperature	40°C
Sub Type	AC/AC Adapter
Load Regulation	±1 %
Minimum Operating Temperature	-20°C
Plug Type	Type C
Number of outputs	1
Maximum Input Voltage	240V ac
Output Voltage	24V ac
Standards/Approvals	IEC/EN 61558
Minimum Input Voltage	230V ac
Output Connector Type	2.1 x 5.5 x 12 mm Centre Positive
Input Connector Type	EU Plug
Adapter Current	200mA

Key Features

Equipped with a Type C EU mains plug for standard compatibility.
Fitted with a 2.1 x 5.5 x 12 mm centre positive output connector.
Includes a 1.8 meter cable for flexible placement.
Operates reliably within the temperature range of -20°C to +40°C.
Complies with IEC/EN 61558 safety standards.
Load and line regulation maintained within ±1% for output stability.
Compact dimensions of 62 mm length, 51 mm width, and 42 mm depth.
Designed for single output use with maximum input voltage of 240V AC.

Product Description

RS PRO 139-1766 AC/AC Adapter is a high-quality linear power supply providing 5 watts output power with 24V AC voltage and 200 mA output current. It is designed to power small electrical appliances such as lamps, radios, and fans with a reliable and stable power source.

The adapter features a Type C plug suitable for EU mains sockets and a 2.1 x 5.5 x 12 mm centre positive output connector ensuring proper fitment with compatible devices. It includes a 1.8-meter long cable that offers convenient flexibility in positioning the connected equipment.

Engineered for safety and performance, this power supply operates in ambient temperatures ranging from -20°C up to +40°C and includes thermal cut-off protection to prevent damage to connected devices. The adapter meets IEC/EN 61558 international safety standards, ensuring quality and durability.

With its compact size measuring 62 mm in length, 51 mm in width, and 42 mm in depth, it is suitable for installation in tight spaces. The device features single output with load and line regulation maintained within ±1%, delivering consistent output voltage under different loading conditions.

This RS PRO AC/AC adapter is ideal for industrial, laboratory, and commercial applications needing a dependable low-power AC output. Its 230 - 240V AC input voltage and 50 to 60 Hz frequency range support compatibility with common electrical systems.

Equipped with Type C mains plug for EU standard use. 2.1 x 5.5 x 12 mm centre positive output connector for device compatibility. 1.8 meter cable length for flexible installation. Operates safely within -20°C to 40°C ambient temperature range.

Compliance with IEC/EN 61558 safety standards for reliable operation. Single output design delivering 24V AC at 200 mA current. Compact size for easy integration in equipment setups. Thermal cut-off protection to prevent overheating and damage.

Discover more RS PRO AC/DC adapters and related power supply products in our comprehensive electronics category to suit diverse industrial and commercial power requirements.
