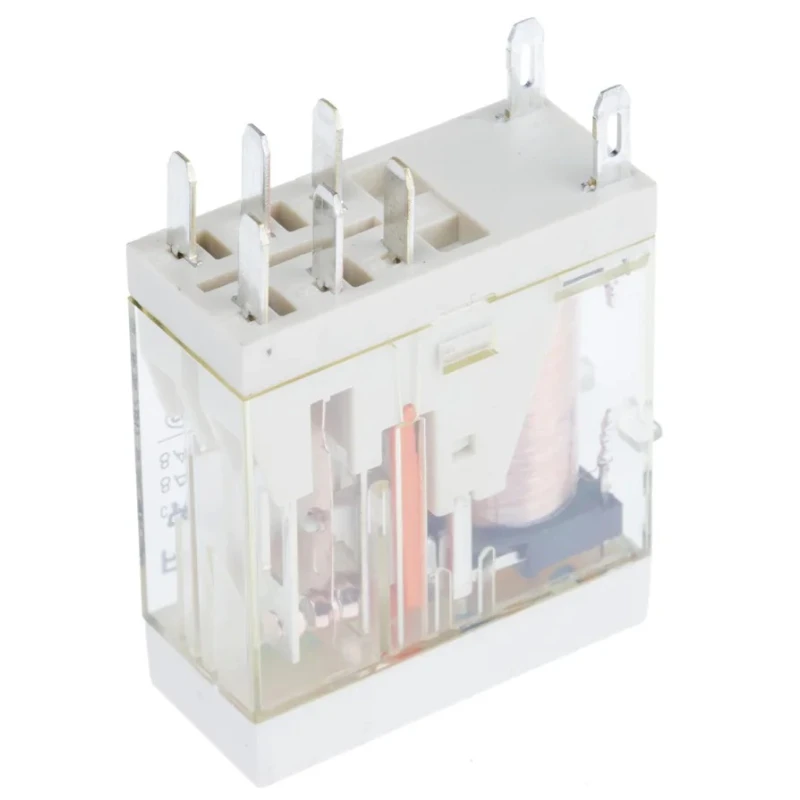

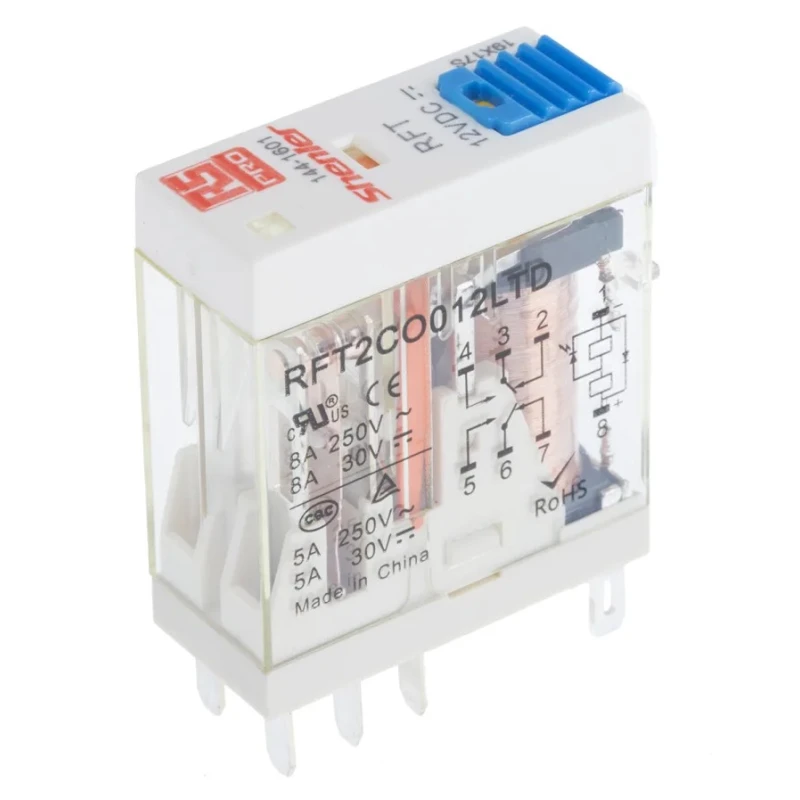

RS PRO Power Relay 12V Coil 8A Switching Current DPDT 144-1601
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 28mm |
| Length | 29mm |
| Model | 144-1601 |
| Width | 12.6mm |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 270Ω |
| Coil Voltage | 12V |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- Features a 12V coil voltage ideal for control circuits.
- Utilizes a PCB pin terminal type for easy board mounting.
- Switching current rated at 8A for reliable load control.
- Compact dimensions of 29mm length, 28mm height, and 12.6mm width.
- Contact material is silver alloy ensuring good conductivity and durability.
- Coil power consumption is low at 530mW enhancing energy efficiency.
- Operates reliably within temperature range from -40°C to 55°C.
- Switching capability includes up to 30V DC and 250V AC voltages.
Product Description
RS PRO 144-1601 power relay is a high-quality DPDT relay featuring a 12V coil and 8A switching current, designed for demanding industrial and electronic applications. The relay provides reliable switching of electrical loads in compact, plug-in interface form factor.
It includes silver alloy contacts offering robust conductivity and low contact resistance of 50mΩ, ensuring efficient and durable switching performance. The relay supports switching of both AC and DC voltages up to 250V AC and 30V DC respectively, suitable for many control systems.
Designed with a PCB pin terminal type, it allows straightforward circuit board integration. The coil operates at 12V with a coil resistance of 270Ω and consumes 530mW power, making it energy efficient. The relay can operate safely across a wide temperature range from -40°C to 55°C, suitable for harsh industrial environments.
Its compact dimensions (29mm length, 28mm height, and 12.6mm width) enable flexible installation in constrained spaces. This power relay meets RoHS standards, ensuring compliance with environmental regulations.
Commonly used in industrial automation, machine building, HVAC systems, and electrical enclosure applications, the RS PRO 144-1601 relay enhances control reliability and system safety. For extended functionality, optional DIN rail bases are available separately.
Features a 12V coil voltage ideal for control circuits. Utilizes a PCB pin terminal type for easy board mounting. Switching current rated at 8A for reliable load control. Compact dimensions of 29mm length, 28mm height, and 12.6mm width.
Contact material is silver alloy ensuring good conductivity and durability. Coil power consumption is low at 530mW enhancing energy efficiency. Operates reliably within temperature range from -40°C to 55°C. Switching capability includes up to 30V DC and 250V AC voltages.
High-quality silver alloy contacts with 50mΩ contact resistance. Complies with RoHS standards, ensuring environmental safety. Designed for use in industrial controls, machine building, HVAC, and automation. Explore more RS PRO Power Relays and electronic components in the Electronics & Electricals category at EnvMart, the trusted marketplace for professional industrial products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V, making it suitable for control circuits.
This model can handle a maximum switching current of 8A, ensuring reliable load control.
The dimensions of this relay are 29mm in length, 28mm in height, and 12.6mm in width, allowing for flexible installation in compact spaces.
This relay features a DPDT (Double Pole Double Throw) contact configuration, suitable for various switching applications.
The contact material is silver alloy, which provides good conductivity and durability.
The coil power consumption is low at 530mW, enhancing energy efficiency during operation.
This model operates reliably within a temperature range from -40°C to 55°C, making it suitable for harsh environments.
The contact resistance of this power relay is 50mΩ, ensuring efficient switching performance.
It can switch voltages up to 30V DC and 250V AC, making it versatile for various control systems.
This relay utilizes a PCB pin terminal type, allowing for easy integration into circuit boards.
Yes, this relay complies with RoHS standards, ensuring it meets environmental regulations.
This relay is commonly used in industrial automation, machine building, HVAC systems, and electrical enclosure applications.
