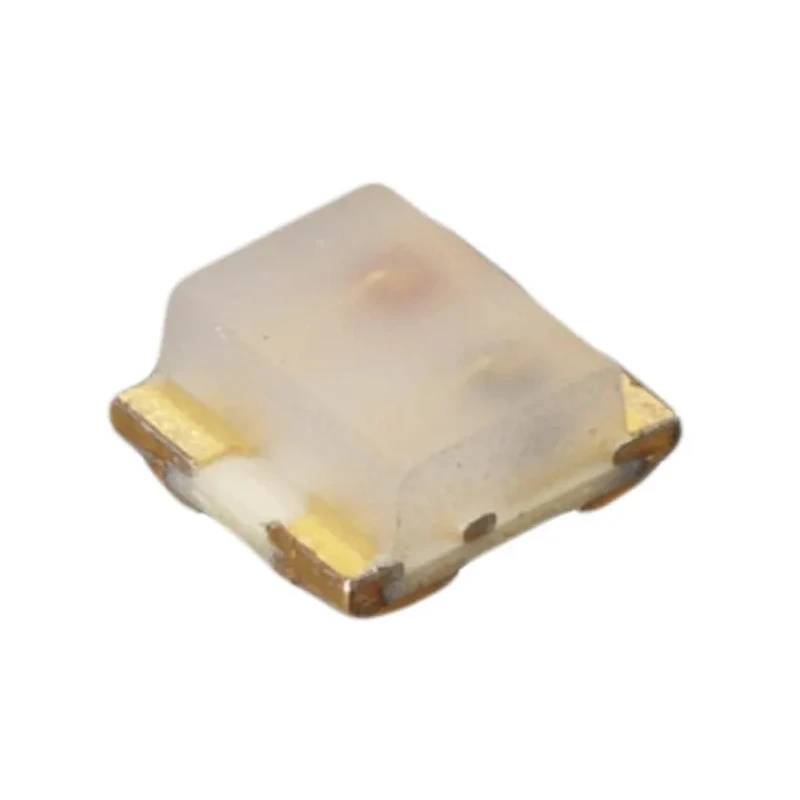

Lite-On 2.4 V Green, Blue, Orange LED PLCC Surface Mount 3 LEDs LTST-C19FD1WT

Lite-On LTST-C19FD1WT is a new, surface mount PLCC LED component designed for electronic applications requiring red-green-blue (RGB) LED functionality with a 2.4 V forward voltage and a maximum power dissipation of 75 mW. It features three LEDs in one package emitting green, blue, and orange light, suitable for a wide range of industrial uses including electronics components, signaling, displays, and instrumentation.

This LED's surface mount design accommodates modern automatic assembly lines, with tape and reel packaging facilitating efficient placement. The compact lens dimensions of 2.1 x 1.6 x 0.55 mm and a lens shape that is rectangular with a diffused white finish ensure reliable light diffusion and effective illumination with a broad viewing angle of 130 degrees.

The LEDs produce bright light output levels: 450 mcd for green and 180 mcd for both blue and orange LEDs, enabling clear and vivid visual signals. Rated for a maximum forward current of 100 mA and forward voltage of 2.4 V, they provide stable operation within electronic circuits.

The product complies with RoHS environmental standards, ensuring it meets regulatory requirements for hazardous substance restrictions. Its dominant wavelengths (470, 525, and 605 nm) make it useful in various applications requiring specific LED colors.

Typical applications include replacement or design use in LED lighting assemblies, indicator panels, electronic instrument backlighting, and other commercial and industrial lighting needs. Its tape & reel packaging supports automated PCB assembly lines common in high-volume production environments.

This LED component incorporates three LEDs in one package capable of displaying green, blue, and orange colors. It features surface mounting with a PLCC package type, compatible with SMT assembly. The maximum forward current rating is 100 mA with a forward voltage of 2.4 V.

Lens is diffused white rectangular with dimensions 2.1 x 1.6 x 0.55 mm, contributing to wide viewing angle of 130°. The LED luminosity is 450 mcd (green), and 180 mcd each for blue and orange. Conforms to RoHS standards ensuring non-toxic composition and regulatory compliance.

Dominant wavelengths for colors are 470 nm (blue), 525 nm (green), and 605 nm (orange).

This component is manufactured in China and is ideal for industrial, commercial, and electronics manufacturing use cases. It is designed to meet modern LED lighting and signaling requirements.
