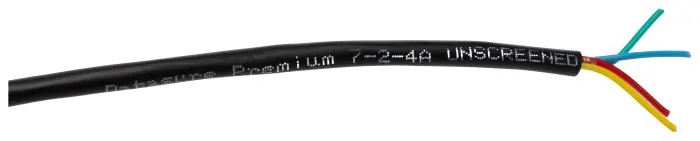

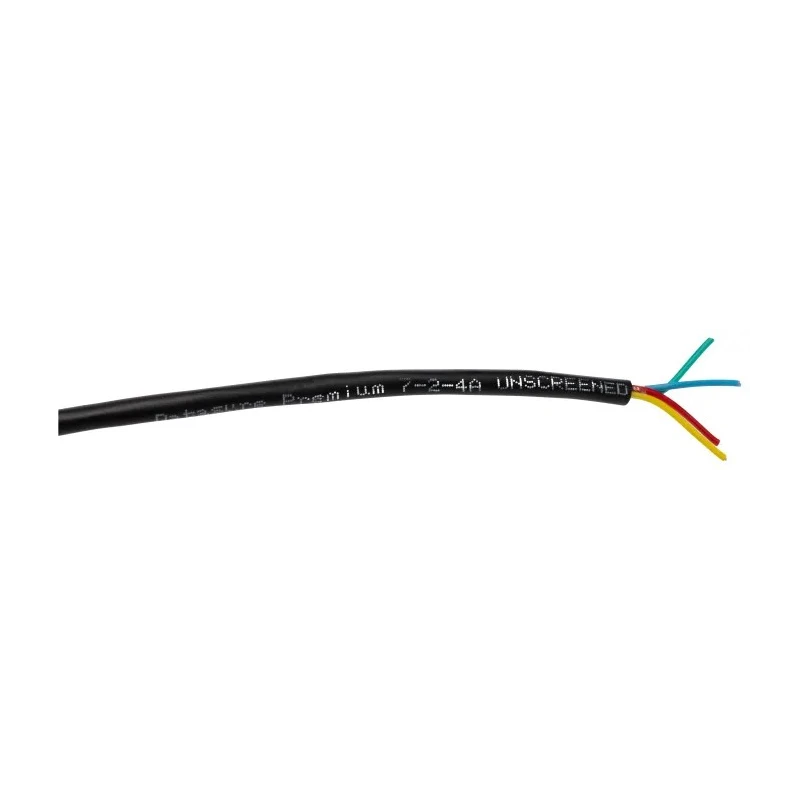

RS PRO DEF STAN Multi-Core Industrial Cable 4 Cores 0.22mm² Unscreened Armoured Black PVC Sheath 25 m 236-9261
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 236-9261 |
| Cable Length | 25m |
| Series | DEF STAN |
| Outside diameter | 11mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, EN, EAC |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 0.22mm² |
| 4 cores - RS stock no | 236-9261 |
| 6 cores - RS stock no | 236-9267 |
| 8 cores - RS stock no | 236-9271 |
| 12 cores - RS stock no | 236-9246 |
| 20 cores - RS stock no | 236-9251 |
| 36 cores - RS stock no | 236-9256 |
| 2 cores - RS stock no | 236-9255 |
| 3 cores - RS stock no | 236-9259 |
Key Features
- The cable is unscreened and armoured for enhanced protection and reliability.
- It features stranded conductor type for flexibility.
- The cable length is 25 meters, with an outside diameter of 11 mm.
- Operates effectively in temperatures ranging from -15°C to 70°C.
- Flame retardant fire behavior ensures safety in industrial settings.
- Complies with CE, EN, and EAC standards for quality assurance.
- Ideal for low-frequency industrial applications such as machines, control equipment, and conveyor belts.
- Constructed with high-quality tin copper wire and a protective PVC jacket.
Product Description
RS PRO 236-9261 Multi-Core Industrial Cable is a high-quality unscreened armoured cable designed for industrial and electrical automation uses. This cable features 4 cores, each with a 0.22mm² cross-sectional area made from durable tin copper wire housed in a flame retardant polyvinyl chloride (PVC) black sheath providing excellent mechanical and chemical resistance.
The stranded conductors enhance flexibility while the armoured design adds robust protection against mechanical damage and external impacts. With an outside diameter of 11 mm and a length of 25 meters, this cable meets Defence Standard 61-12 Part 4 and is compliant with CE, EN, and EAC standards. It is designed to operate within a temperature range of -15°C to 70°C, making it suitable for diverse industrial environments.
This multi-core unscreened cable offers cost-effective and efficient connectivity solutions for applications requiring multiple cores, such as industrial machinery, factory control equipment, conveyor systems, and large control pads. Its flame retardant properties increase safety compliance in industrial settings.
Applications span entertainment and audio industries, machine controls, DIN-Rail terminals, and other demanding installations requiring reliable conductor organization and cable protection. The cable's black PVC jacket offers durable protection against environmental factors ensuring long service life.
The cable features 4 cores with 0.22mm² tin copper conductors for reliable signal transmission. It is unscreened and armoured, enhancing cost-efficiency and protection. The black PVC jacket is flame retardant, providing high safety standards.
Compliant with CE, EN, and EAC standards and Defence Standard 61-12 Part 4. Operating temperature ranges from -15°C to 70°C suitable for varied environments. The cable length is 25 meters with an 11 mm outside diameter. Flexible stranded conductors accommodate installation requirements.
Designed for low-frequency industrial applications, including machine control and conveyor belts. Ideal for electrical, automation, and control cable needs.
This cable is manufactured in China and represents a trusted choice for industrial wiring requiring durability and specification compliance. Explore the Electronics & Electricals category for more high-quality cables on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length is 25 meters.
It can operate effectively at a maximum temperature of 70°C.
This model features 4 cores.
Each conductor has a cross-sectional area of 0.22mm².
The conductors are made from tin copper wire.
The outside diameter of the cable is 11 mm.
This cable is unscreened.
The jacket is made of polyvinyl chloride (PVC).
It has flame retardant properties, enhancing safety in industrial settings.
It complies with CE, EN, and EAC standards.
It is designed for low-frequency industrial applications such as machine control and conveyor belts.
This cable is manufactured in China.
