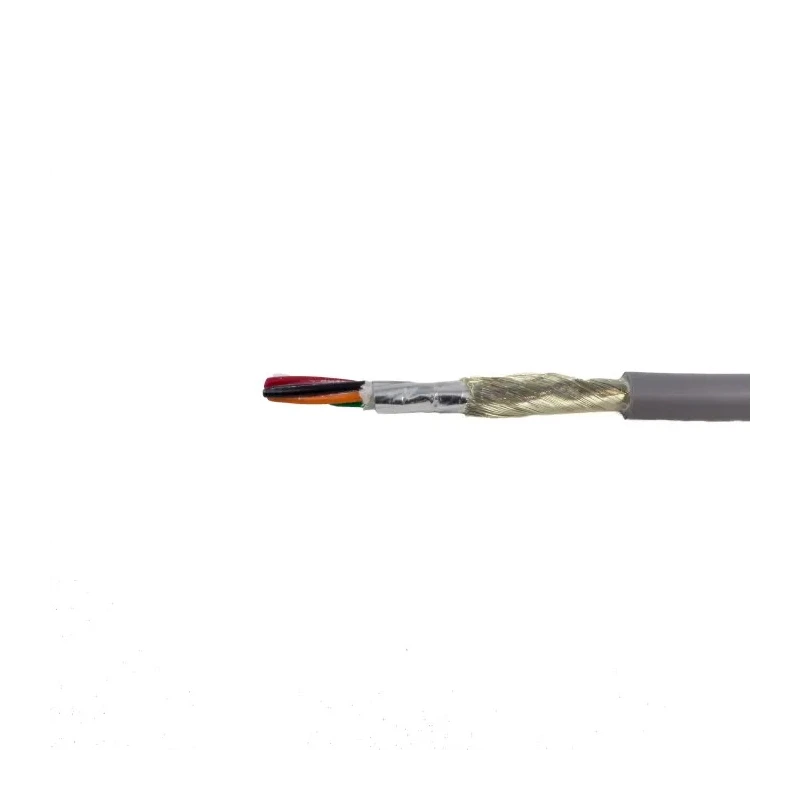

Alpha Wire XTRA-GUARD FLEX Multi-Core Industrial Cable 0.38 mm², 4 Core, 30m, PVC Sheath, 300V 86304CY SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.38mm² |
| Model | 86304CY SL005 |
| Cable Length | 30m |
| Series | XTRA-GUARD FLEX |
| Outside diameter | 5.87mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -10°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, UL, CSA |
| Jacket Colour | Slate |
| Conductor Type | Copper |
| Number of Strands | 19 |
| Core Strands | 19 x 0.16mm |
| Size of Strands | 0.16mm |
Key Features
- Features robust PVC outer sheath for enhanced durability and resistance to oil and sunlight.
- Includes tin-plated copper conductors in a 19-strand configuration for reliable flexibility and corrosion resistance.
- Supports continuous-flex applications with minimum bend radius recommendations for both static and dynamic cable carrier use.
- Complies with CE, UL, and CSA standards as well as RoHS and REACH requirements for industrial, process control, and machine tool wiring.
- Operates reliably from -10°C up to +105°C, ensuring performance in challenging environments.
- Offers shielded construction with aluminium/Mylar tape and braided tinned-copper for effective noise reduction and safe earthing path.
- Ideal for automation, robotics, panel interconnection, and factory control signal transmission.
- Compact 5.87 mm outside diameter helps facilitate space-efficient cable organization.
Product Description
Alpha Wire 86304CY SL005 Multi-Core Industrial Cable with 0.38 mm² conductor cross-section and four cores is designed for demanding industrial and automation environments requiring superior flexibility and reliable signal integrity. Its XTRA-GUARD FLEX series construction combines high-strand-count tin copper wires and a slate-colored Polyvinyl Chloride (PVC) sheath, delivering oil, sunlight, and abrasion resistance while maintaining compact cable routing.
The cable incorporates tin-plated 19-strand copper conductors for improved flexibility with reduced fatigue over repeated bending cycles. Each core is insulated with semi-rigid PVC, and the overall bundle is protected by a polyester tape, topped with a nominal 0.040 inch extruded PVC jacket for additional mechanical robustness and environmental protection.
With an outside diameter of 5.87 mm and a rated voltage of 300V, this cable is ideally suited for control panels, cable carrier systems, robotics harnesses, automated machinery, and process instrumentation wiring, where reliable compact wiring and electromagnetic shielding are essential. The shield construction, using an aluminium/Mylar tape and braided tinned-copper drain, provides at least 90% coverage, effectively minimizing external electrical interference and ensuring signal clarity.
The multi-core configuration (19 strands of 0.16 mm per core) ensures dependable current capacity, while the operating temperature range from -10°C to 105°C enables installation and use across varied industrial conditions. The minimum recommended bend radius (eight times cable diameter) supports safe installation in both static and dynamic applications, and a maximum pull tension of 29 lb prevents conductor damage during installation.
Alpha Wire 86304CY SL005 cable meets international standards including CE, UL, CSA, and is compliant with RoHS and REACH directives for European and global projects. It is free of listed SVHCs above threshold levels, allowing use in environments with strict regulatory requirements. Multiple applications include factory automation controls, machine tool wiring, panel-mounted interconnections, signal transmission in cable carriers, and instrumentation cabling for process control equipment. The shielded design assures noise suppression, safe earthing, and improved reliability for critical industrial, laboratory, and manufacturing installations.
Enhanced flexibility and mechanical durability suitable for moving cable installations. Corrosion resistant, tin-plated conductors ensure long-term electrical performance. Shielded and noise-protective design supports sensitive signal transmission.
PVC jacket resists oil and sunlight, ideal for exposed cable runs. Certified to industry and environmental standards for global project compatibility. Compact form enables dense wiring and efficient panel cabling.
Explore more industrial-grade signal, power, and control cables from Alpha Wire in the Multi-Core Industrial Cable category on EnvMart for reliable solutions across automation, manufacturing, robotics, and laboratory use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductor cross-sectional area of this model is 0.38 mm².
It can operate reliably at a maximum temperature of 105°C.
This cable features four cores.
The outside diameter of this model is 5.87 mm.
The jacket is made of Polyvinyl Chloride (PVC), which provides resistance to oil and sunlight.
It complies with CE, UL, and CSA standards, as well as RoHS and REACH requirements.
The minimum operating temperature is -10°C.
This model has a length of 30 meters.
It uses tin-plated copper conductors arranged in a 19-strand configuration for flexibility and corrosion resistance.
The rated voltage for this cable is 300V.
It is suitable for automation, robotics, panel interconnection, and factory control signal transmission.
The cable features shielded construction with aluminium/Mylar tape and braided tinned-copper for effective noise reduction.
