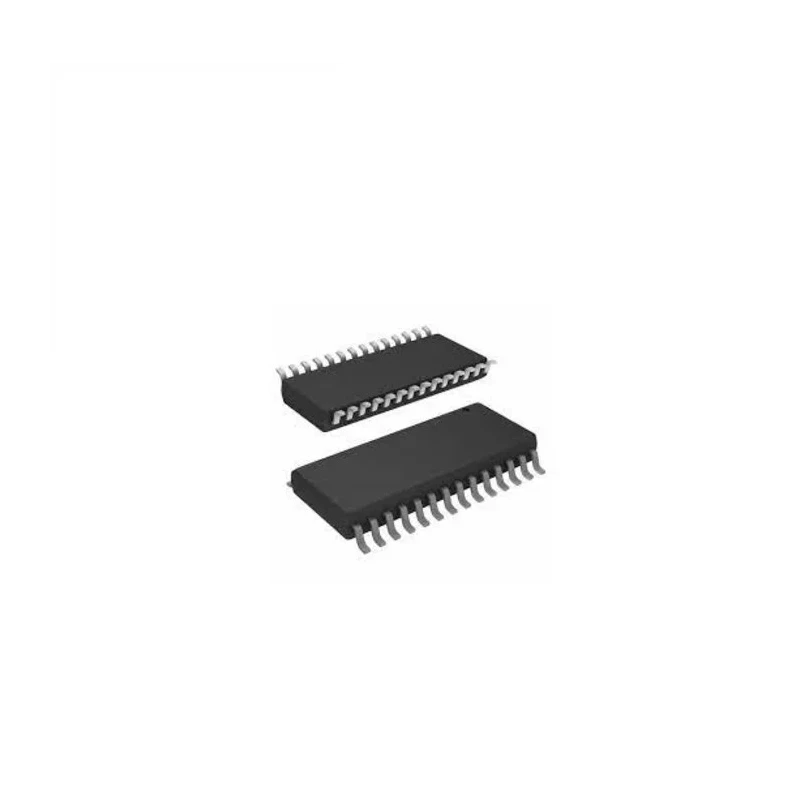

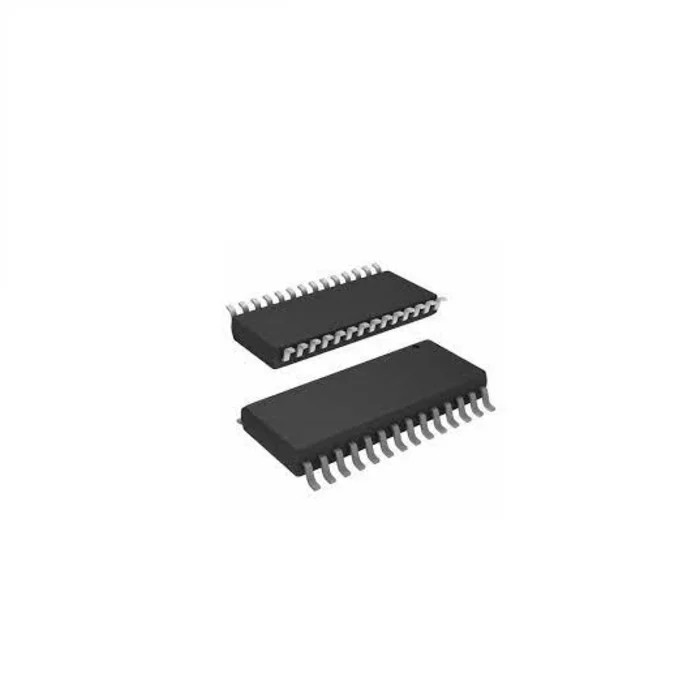

Microchip PIC Microcontroller PIC18F26K42-I/SO 64 MHz 64kB Flash 28-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC18F26K42-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH, RoHS3 |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 25 |
| Instruction Set Architecture | RISC |
| ADCs | 24 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates at supply voltages from 2.3V to 5.5V ensuring versatile power compatibility.
- Features a RISC architecture with 25 programmable input/output pins for flexible interfacing.
- Includes a 24 channel 12-bit ADC with Computation for advanced analog-to-digital conversions.
- Integrates a 5-bit DAC, temperature sensor, and advanced capacitive touch sensing capabilities.
- Operating temperature ranges from -40°C to 85°C suitable for industrial applications.
- Supports various communication protocols including UART with DMX, DALI, LIN, SPI, and I2C.
- Memory Access Partition and Device Information Area enhance code protection and calibration accuracy.
- Compliant with RoHS3 and REACH standards to meet environmental regulations.
Product Description
Microchip PIC18F26K42-I/SO PIC microcontroller is engineered for high-performance embedded applications requiring a robust 64 MHz clock frequency and 64kB FLASH program memory. Encased in a compact 28-pin SOIC surface mount package, it supports voltages between 2.3V and 5.5V, accommodating a wide range of power supplies.
This device’s core is based on a RISC architecture delivering efficient processing with 25 programmable I/O pins enhancing interface versatility in embedded systems. It features an advanced 24-channel 12-bit ADC with computation and capacitive voltage divider techniques for precise analog input measurements and touch sensing applications.
Additional integrated peripherals include a 5-bit DAC, a factory-calibrated temperature sensor, a vectored interrupt controller with fixed latency, and direct memory access (DMA) capabilities. Communication versatility is supported through UART with asynchronous, DMX, DALI, and LIN protocols, plus SPI and I2C interfaces.
The microcontroller incorporates a Memory Access Partition (MAP) to safeguard bootloader and application code, as well as a Device Information Area (DIA) that stores unique device identifiers and factory calibration data to optimize sensor accuracy.
Operating temperature extends from -40°C to 85°C, making it suitable for industrial, commercial, and automotive applications where temperature resilience is critical. Compliance with RoHS3 and REACH ensures environmental standards are met.
The compact 7.5 mm width SOIC package allows for efficient PCB layouts and surface mounting assembly techniques. This Microchip PIC18F26K42-I/SO microcontroller is ideal for embedded control in industrial automation, instrumentation, and consumer electronics.
Operates between 2.3V and 5.5V supply voltage. 24-channel 12-bit ADC with computation and capacitive touch sensing. Advanced communication peripherals including UART, SPI, and I2C. Memory code protection and device calibration features.
RoHS3 and REACH compliant. Explore more Microcontrollers and electronic components for your projects on EnvMart.
