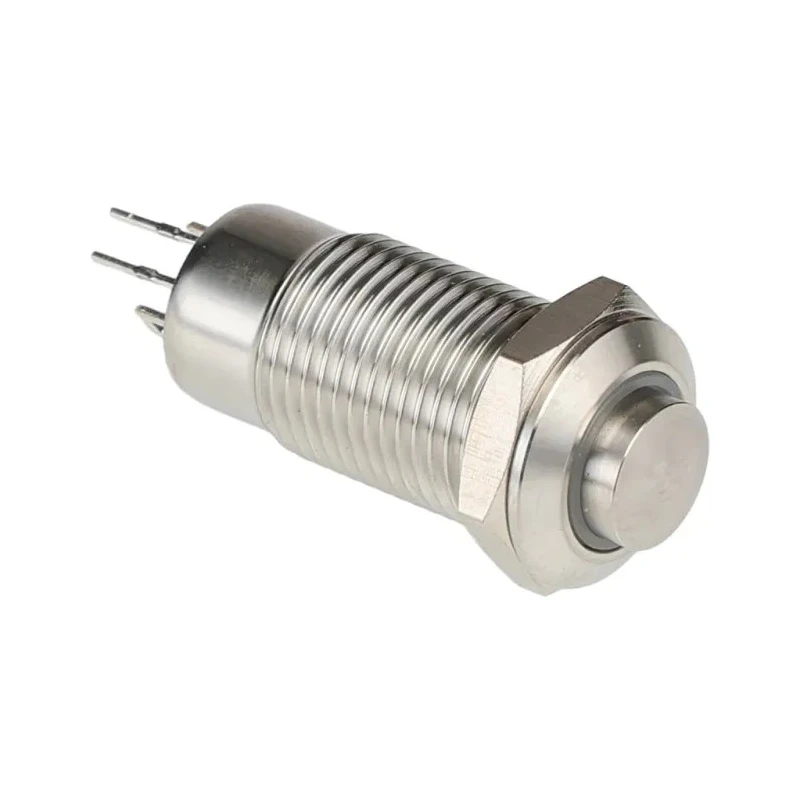

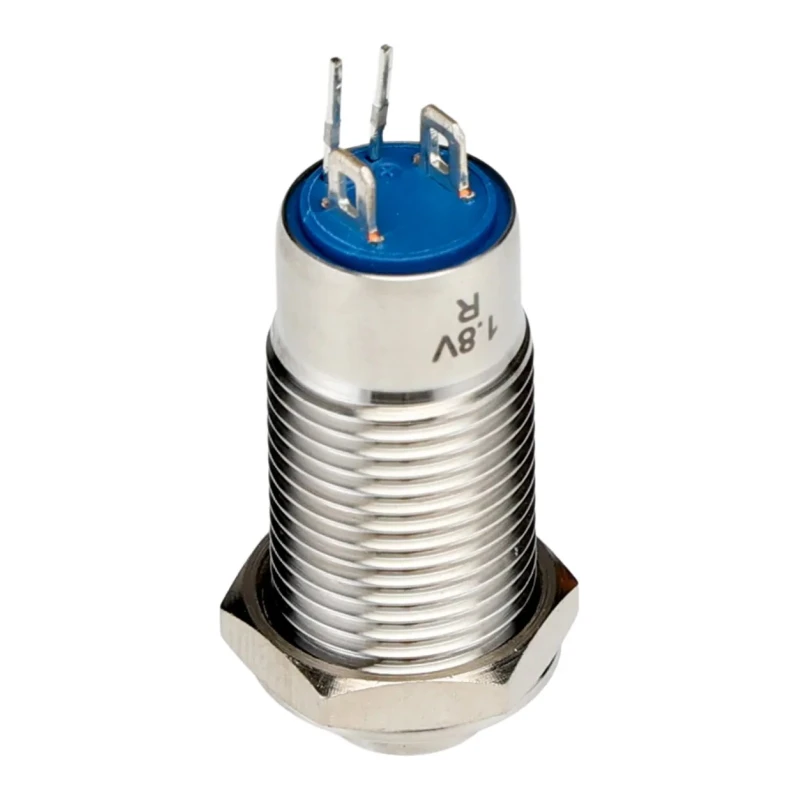

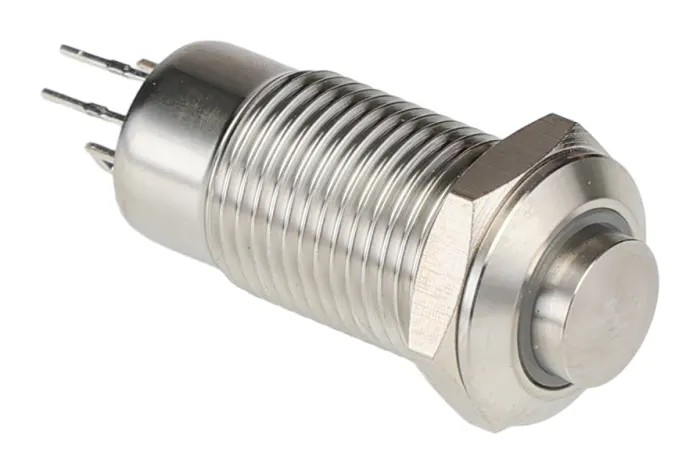

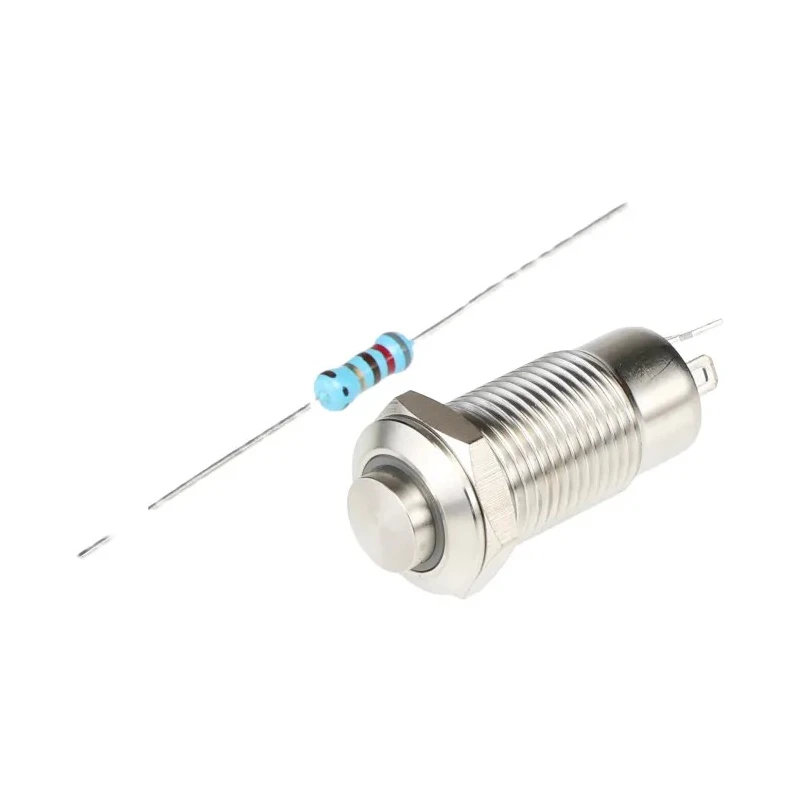

RS PRO Illuminated Push Button Switch Latching Panel Mount 12 mm Cutout SPST Red LED IP40 36V dc 111-6517

RS PRO 111-6517 Illuminated Push Button Switch is a high-quality latching switch designed for panel mounting applications requiring a 12 mm cutout. It features a durable silver-colored round actuator making it easy and ergonomic to operate.

This Single Pole Single Throw (SPST) switch is illuminated with a red LED that provides clear visual status indication ensuring operators can quickly identify switch states. The quick-connect terminal design facilitates easy and secure installation and maintenance.

The switch operates reliably on 12 V AC/DC with the capability to handle contact currents up to 1 amp and contact DC voltage of 36 V. Its design supports a temperature range from -20°C up to 55°C, making it suitable for various industrial and commercial applications.

The device meets RoHS standards, ensuring it is environmentally compliant and safe for use in electronic and electrical systems. Its IP40 rating offers protection against solid objects larger than 1 mm, suitable for protected indoor environments where dust and contact intrusion is minimal.

Typical use cases include controlling circuits in automation, industrial machinery, public infrastructure such as vending machines, pedestrian crossings, security keypads, and maintenance equipment. Its vandal-proof features and high impact resistance enhance durability in demanding environments.

The silver actuator colour ensures visible and tactile operation. Red LED illumination signals switch status clearly. Robust SPST contact configuration provides reliable circuit control. Quick-connect terminals enable efficient installation.

Latching operation retains switch position until manually changed. IP40 protection suitable for safe indoor usage. Wide operational temperature range supports varied applications. This product is manufactured in Taiwan, Province Of China, ensuring quality and reliability for demanding industrial applications.
