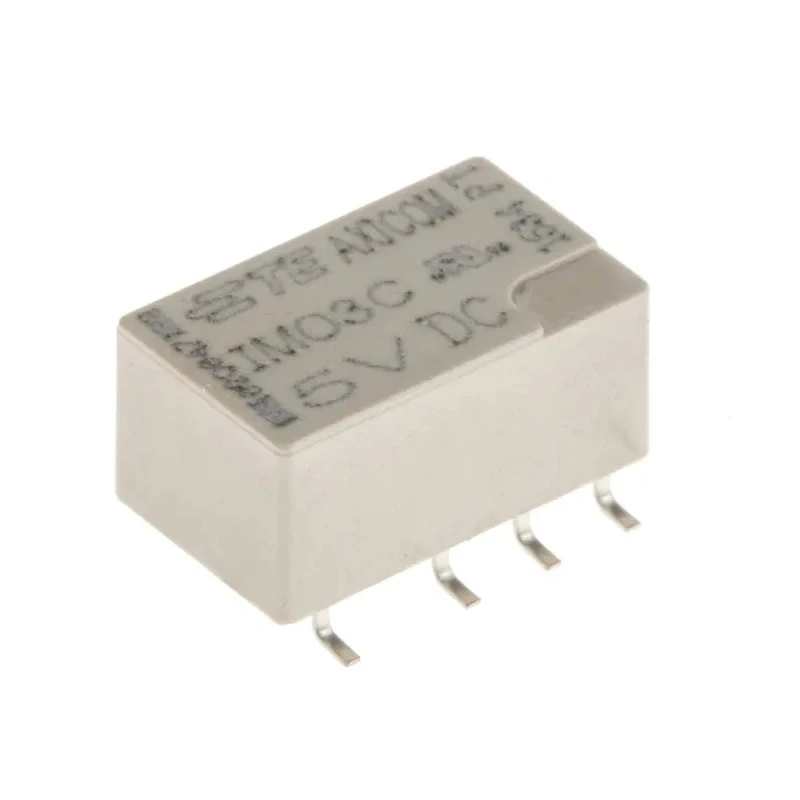

TE Connectivity Surface Signal Relay, 5V DC Coil, 2A Switching Current, DPDT Contact Configuration, Surface Mount IM03CGR

TE Connectivity IM03CGR Surface Signal Relay is a high-quality signal relay designed with a 5V DC coil voltage and a 2A maximum switching current. This relay features a double-pole double-throw (DPDT) contact configuration suitable for a variety of industrial and telecommunications applications.

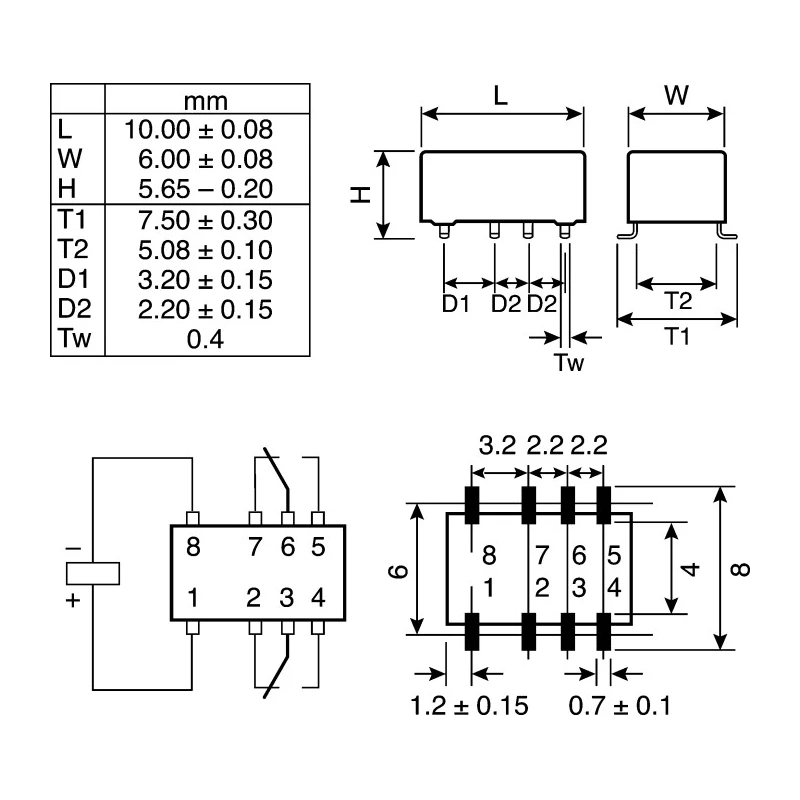

With a slimline and low-profile form factor measuring 10mm in length, 6mm in width, and 5.65mm in height, the relay is optimized for surface mounting on printed circuit boards (PCB) using gull wing SMT legs. It employs bifurcated contacts made of palladium and ruthenium that are gold plated to ensure excellent conductivity and durability.

The relay is hermetically sealed and rated IP67, providing protection against dust and water ingress. It offers high mechanical shock resistance, surviving functional shocks up to 300G and survival shocks up to 500G, making it robust for demanding industrial environments.

Operating temperature ranges from -40°C to 85°C, extending its usability across various climatic conditions. The device maintains insulation resistance above 10⁹Ω at 500V DC and has a high surge capability compliant with Telcordia TR-NWT-001089 and EC 60950 standards, ensuring reliable performance under transient voltage conditions.

Its coil power consumption is low at 140mW with a coil resistance of 178Ω, making it an energy-efficient component. Terminal connection is via solder type terminals enabling secure mounting and electrical connection on PCBs.

This signal relay from TE Connectivity is ideal for industrial, telecommunications, automation, and signal conditioning applications where reliable signal switching in a compact size is required.

Operates within a temperature range of -40°C to 85°C. Compact slimline design measuring 10mm length, 6mm width, and 5.65mm height. Equipped with palladium and ruthenium bifurcated gold-plated contacts for reliable conduction.

Hermetically sealed with IP67 rating ensuring protection against dust and water. High mechanical shock resistance tolerating up to 300G functional shock and 500G survival shock. Insulation resistance exceeding 10⁹Ω at 500V DC for optimal electrical isolation.

High surge capability compliant with Telcordia TR-NWT-001089 and EC 60950 standards. Solder type terminals with gull wing SMT leg mounting for ease of PCB integration. Low coil power consumption of 140mW with coil resistance of 178Ω.

Suitable for telecom and signal relay applications requiring reliable switching and compact form factor. Explore further Signal Relays and electrical components within EnvMart's Electronics & Electricals category to meet varied industrial and commercial operational needs.
