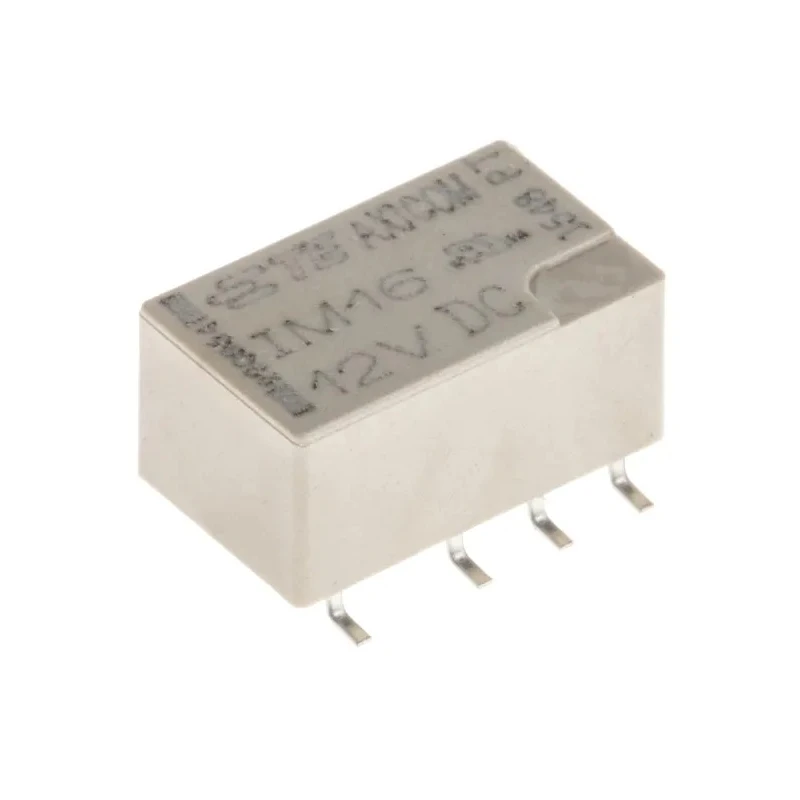

TE Connectivity Surface Signal Relay 12V DC Coil 2A DPDT IM16GR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM16GR |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Rhodium Plated Palladium Nickel, Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 1165Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 110mW |
Key Features
- Compact size with dimensions 10mm length, 6mm width, and 5.65mm height.
- Surface mount type with gull wing SMT legs for PCB mounting.
- Coil resistance of 1165Ω and coil power consumption of 110mW.
- Rhodium plated palladium nickel contacts with gold plating for durability.
- Wide operating temperature range from -40°C to 85°C.
- Switching voltage rated at 250V AC and 220V DC.
- Hermetically sealed housing with IP67 rating for protection and high mechanical shock resistance.
- Meets RoHS standards and Telcordia surge capability standards.
Product Description
TE Connectivity IM16GR surface signal relay is a slimline, low profile device designed for reliable switching in electrical and automation applications. It operates with a coil voltage of 12V DC and supports a switching current of 2A with DPDT contact configuration, ideal for signal relay tasks in telecom and industrial environments.
The relay offers compact dimensions of 10mm length, 6mm width, and 5.65mm height, optimized for space-constrained PCB layouts with gull wing SMT legs for surface mounting. It features a coil resistance of 1165Ω and consumes 110mW coil power, supporting efficient operation.
The contact material is rhodium plated palladium nickel with gold plating, ensuring excellent conductivity and corrosion resistance. This relay withstands a wide temperature range from -40°C to 85°C, making it suitable for harsh environments. It switches AC voltages up to 250V and DC voltages up to 220V.
The hermetically sealed relay housing provides IP67 ingress protection and high mechanical shock resistance up to 300G functional and 500G survival, assuring durability under demanding conditions. High insulation resistance and surge capability compliant with Telcordia TR-NWT-001089 and EC 60950 standards further enhance reliability.
Compact 10x6x5.65 mm slimline relay optimized for surface mounting on PCBs. 12V DC coil with 1165Ω resistance and low coil power consumption of 110mW. DPDT contact configuration with a switching current of 2A rated for 250V AC and 220V DC.
Durable rhodium plated palladium nickel contacts with gold plating. Wide operational temperature range of -40°C to 85°C for industrial use. Hermetically sealed with IP67, shock resistant and high surge tolerance.
This TE Connectivity IM16GR surface signal relay is suitable for use in telecom, industrial automation, signal conditioning, and other applications requiring reliable low-power switching solutions. It complies with RoHS environmental standards and is approved under UL for quality assurance.
Explore further products and components within the Signal Relay category at EnvMart to complete your design and automation projects efficiently with trusted brands like TE Connectivity.
