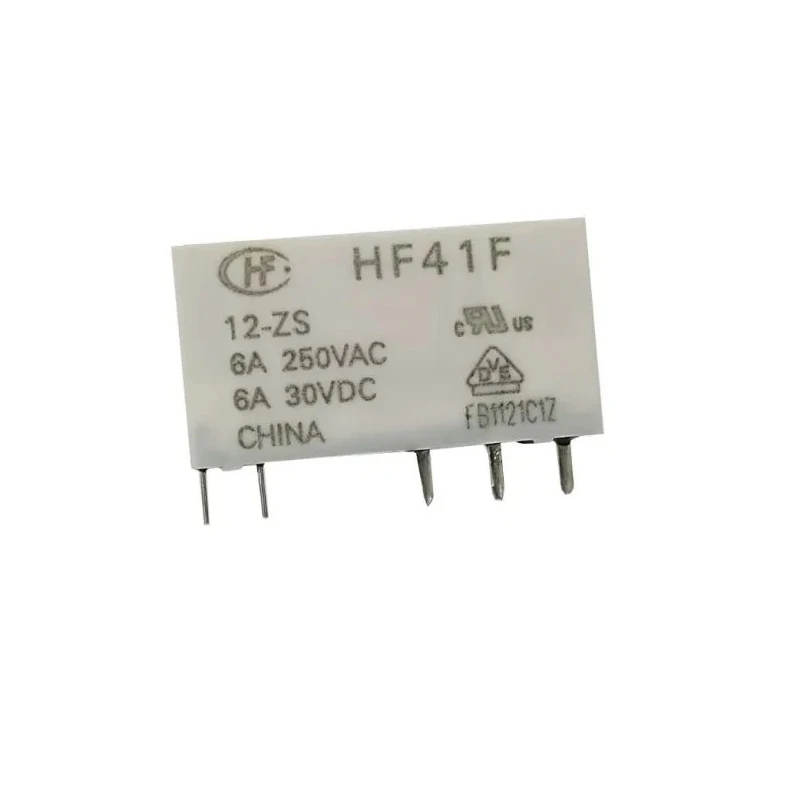

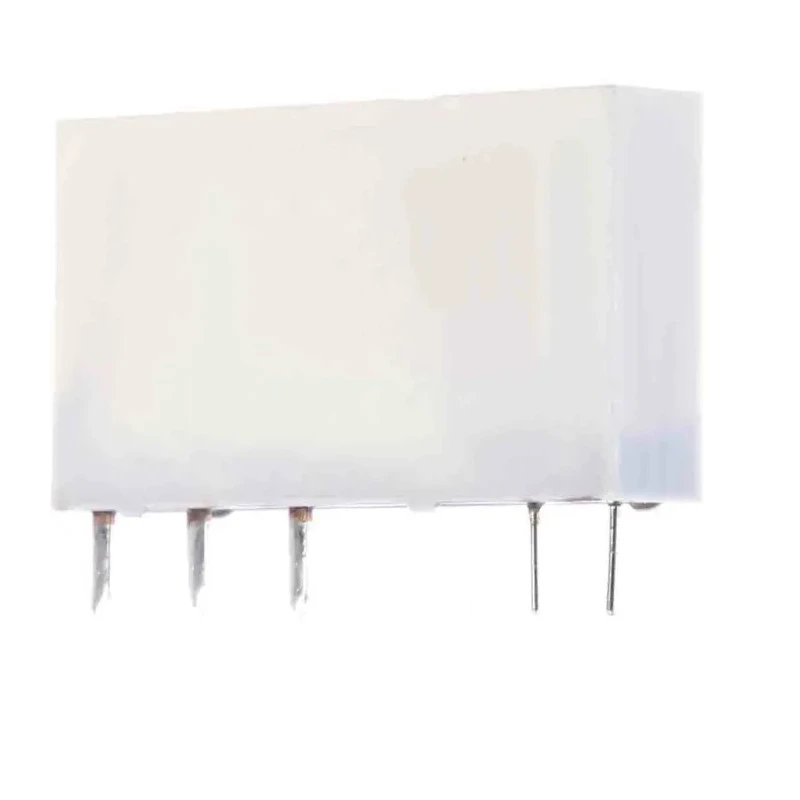

RS PRO PCB Power Relay 12V dc Coil 6A Switching Current SPDT 476-634
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15mm |
| Length | 28mm |
| Model | 476-634 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Vibration resistance | 10Hz to 55Hz 1mm DA |
| Terminal type | Solder |
| Ambient Temperature | -40°C up to +85°C |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 848Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 170mW |
Key Features
- The relay features a compact PCB mount design with solder terminals.
- It supports a maximum switching power of 1.5 kVA and switching voltages of 125V AC and DC.
- Coil resistance is precisely 848Ω, ensuring efficient operation at 170mW coil power.
- Operates reliably in extreme temperatures from -40°C to +85°C, with vibration resistance from 10Hz to 55Hz and 1mm DA.
- Contacts are made of silver alloy with low contact resistance of 100mΩ for dependable electrical performance.
- Complies with RoHS standards, UL E133481 and VDE 40020043 for environmental and safety assurance.
Product Description
RS PRO 476-634 PCB Power Relay is a single-pole double-throw (SPDT) component engineered for industrial and electronic applications requiring reliable switching capabilities. Featuring a 12V DC coil voltage and a switching current capacity of 6A, this relay ensures robust performance across a wide range of ambient conditions.
The relay’s compact size, with a width of just 5mm, length of 28mm, and height of 15mm, makes it ideal for PCB mounting in space-constrained assemblies. Its solder terminal type facilitates secure and efficient PCB connections.
Designed to operate in demanding environments, it tolerates temperatures from -40°C to +85°C and resists vibration frequencies between 10Hz and 55Hz with 1mm displacement amplitude. The silver alloy contact material guarantees low wear and high conductivity, maintaining contact resistance as low as 100mΩ for long-lasting reliability.
RS PRO 476-634 complies with RoHS directives, ensuring it is environmentally friendly and meets safety standards UL E133481 and VDE 40020043, with high flammability rating UL94 V-O and CTI 250 certification. The relay offers a maximum switching power of 1.5 kVA and supports switching voltages up to 125V AC/DC.
This power relay is commonly used in automotive engines, household appliances, industrial machinery, medical devices, and telecommunications equipment, providing precise and enduring switching action.
Compact PCB mount design with solder terminals for easy integration. Robust coil resistance of 848Ω with low coil power consumption of 170mW. Wide operating temperature range from -40°C to +85°C for harsh environments. Compliance with RoHS, UL, and VDE safety and environmental standards.
Silver alloy contacts deliver consistent low resistance and high durability. Vibration resistant design ensures stable function under mechanical stress. Suitable for diverse applications in industrial, automotive, and household sectors.
Explore more Power Relays and electronics components at EnvMart for reliable solutions tailored to your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a maximum switching power of 1.5 kVA.
This model operates with a coil voltage of 12V DC.
It has a switching current capacity of 6A.
The relay has a width of 5mm, a length of 28mm, and a height of 15mm.
It features a single-pole double-throw (SPDT) contact configuration.
It operates reliably in temperatures ranging from -40°C to +85°C.
The coil resistance is precisely 848Ω.
It uses solder terminals for secure PCB connections.
The contact resistance is low, at 100mΩ.
It complies with RoHS standards and has approvals from UL E133481 and VDE 40020043.
It is resistant to vibrations from 10Hz to 55Hz with a displacement amplitude of 1mm.
This power relay is commonly used in automotive engines, household appliances, industrial machinery, medical devices, and telecommunications equipment.
