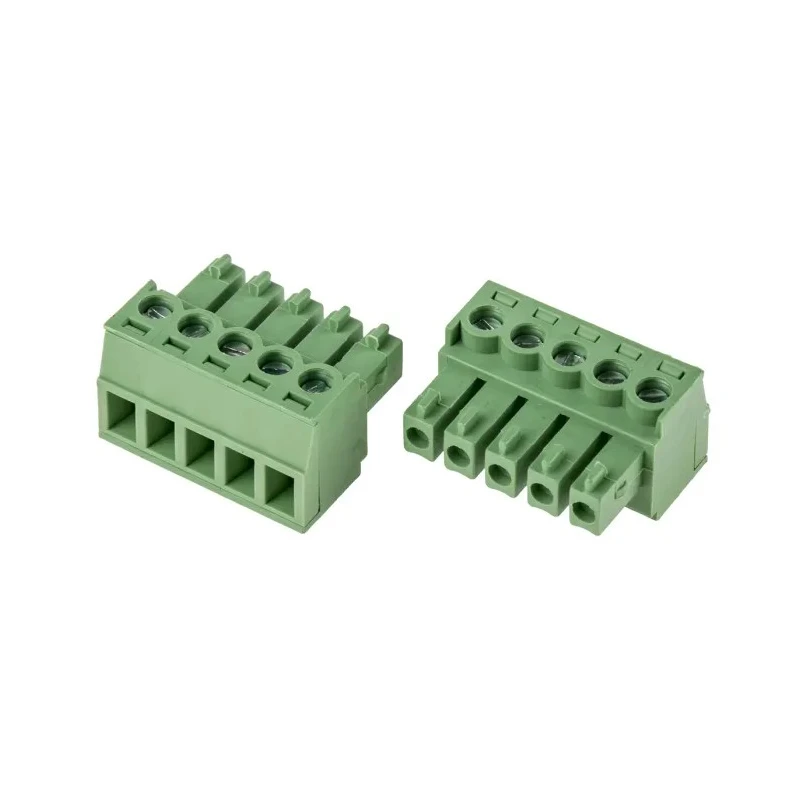

RS PRO Pluggable Terminal Block, 5-Contact, 3.81 mm Pitch, 1 Row, 125 V, 8 A, Polyamide Housing 897-1086

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Pluggable Terminal Block, 5-Contact, 3.81 mm Pitch, 1 Row, 125 V, 8 A, Polyamide Housing 897-1086

Name: RS PRO Pluggable Terminal Block, 5-Contact, 3.81 mm Pitch, 1 Row, 125 V, 8 A, Polyamide Housing 897-1086
Brand: RS PRO
SKU: 412178
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	125V
Brand	RS PRO
Colour	Green
Orientation	Right Angle
Current	8A
Length	19.05mm
Model	897-1086
Depth	15.5mm
Width	11.2mm
Housing Material	Polyamide
Series	RS PRO
Number of Rows	1
Pitch	3.81mm
Number of Contacts	5
Minimum Wire Size mm²	0.13mm²
Maximum Wire Size mm²	1.31mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	26AWG
Wire Connection Method	Screw

Key Features

Polyamide housing ensures high flame retardance and mechanical durability.
Screw termination provides secure and durable wire connections.
Rated for 125 volts and 8 amps suitable for diverse electrical applications.
Compact dimensions with 19.05 mm length, 11.2 mm width, and 15.5 mm depth.
Supports wire sizes from 0.13 mm² to 1.31 mm² and AWG 16 to 26.
Right-angle orientation fits space-constrained PCB layouts.
Resistant to impact and wear with a wide operating temperature range.
Suitable for electronics manufacturing, industrial machinery, and control systems.

Product Description

RS PRO 897-1086 Pluggable Terminal Block is a 5-contact, single-row electrical connector designed for mounting on printed circuit boards with a 3.81 mm pitch. Constructed from flame-retardant polyamide (PA66), it offers enhanced durability and safety in demanding environments. The terminal block features screw termination with tin-plated steel screws, ensuring rust-proof and long-lasting reliability.

Its rated current of 8 amperes and voltage rating of 125 volts make it suitable for various electronics and industrial applications including control panels, automation gear, and circuit connections. The right-angle orientation allows for efficient PCB design and space utilization.

With compact dimensions of 19.05 mm length, 11.2 mm width, and 15.5 mm depth, this terminal block supports wire sizes ranging from 0.13 mm² to 1.31 mm² (AWG 16 to 26). The green polyamide housing is impact and wear resistant and meets UL 94-V0 flame retardance standards, safe for operation in temperatures from -33°C to +120°C.

Polyamide housing provides excellent flame retardant and mechanical protection. Screw connection method for secure electrical wiring. Current rating up to 8 A and voltage rating of 125 V. Compact size with precise 3.81 mm pitch and right-angle design.

Supports a wide range of wire sizes and standards. Suitable for electronics, manufacturing machinery, HVAC, and industrial control. Durable tin-plated steel screws ensure corrosion resistance. Operating temperature range from -33°C to +120°C.

Easy to mount through-hole type for PCB integration.

This terminal block is ideal for applications requiring reliable electrical connections and ease of installation on PCBs. It is commonly used in industrial automation systems, electronic equipment manufacturing, and control gear assemblies.
