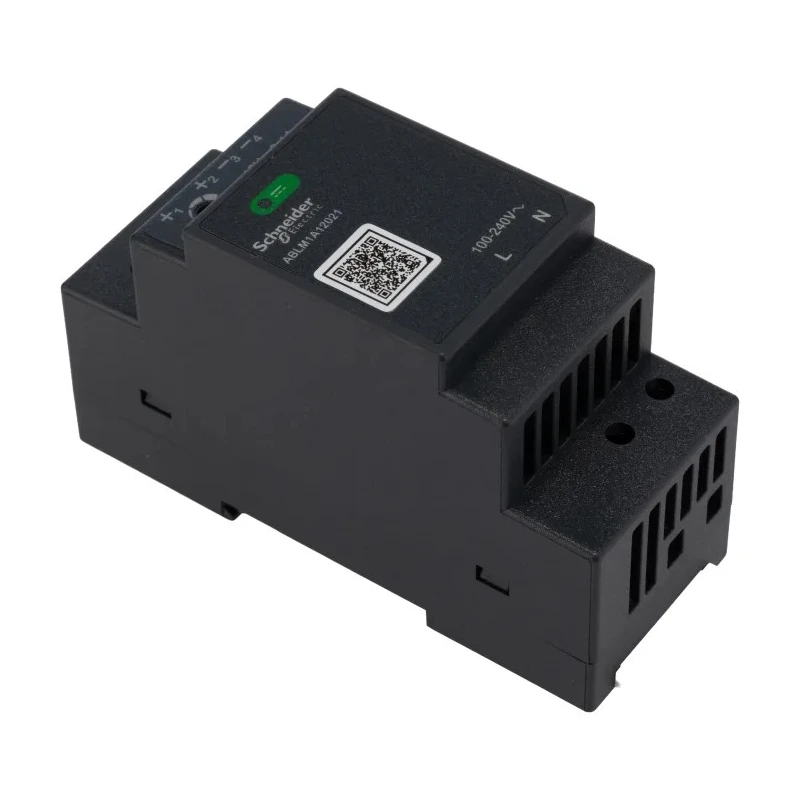

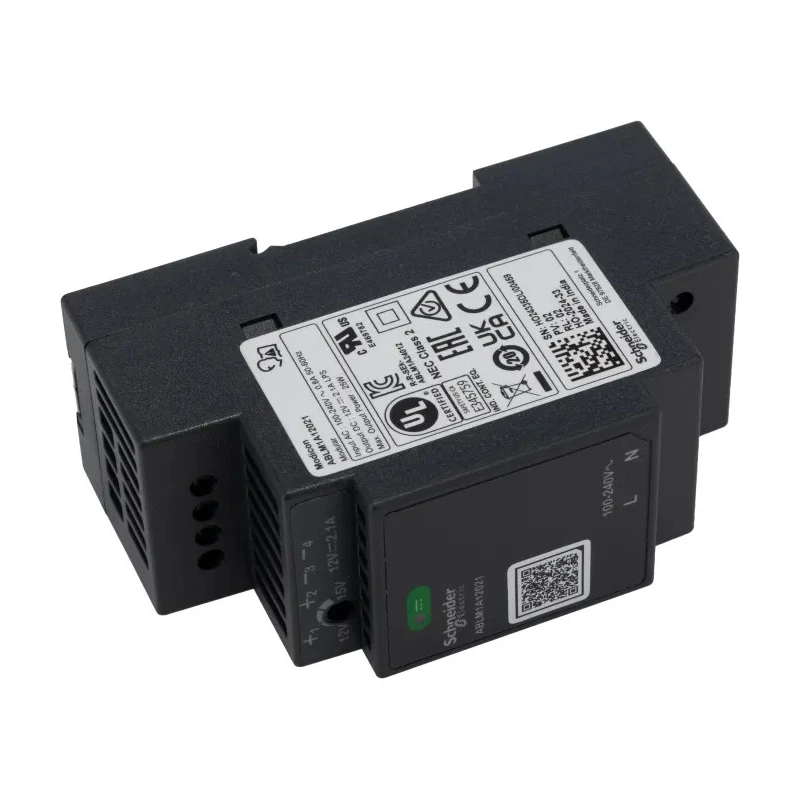

Schneider Electric Modicon ABL Switched Mode DIN Rail Power Supply 240V AC Input 12V DC, 2.1A Output, 25W ABLM1A12021
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Power | 25W |
| Efficiency | 85% |
| Height | 91mm |
| Model | ABLM1A12021 |
| Depth | 55.6mm |
| IP Rating | IP20 |
| Width | 36mm |
| Series | Modicon ABL |
| Output Current | 2.1A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 240V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 12V dc |
| Minimum Input Voltage | 100V ac |
Key Features
- Designed for DIN rail mounting with a compact footprint of 36x91x55.6 mm.
- Operates on input voltage range from 100V to 240V AC.
- High efficiency of 85% reduces heat generation and eliminates need for heatsink.
- Features overload and short-circuit protection with automatic restart functionality.
- Certified to multiple international standards including UL, EN/IEC, CSA, and CE compliance.
- Suitable for industrial automation, packaging, food and beverage, mining, oil and gas, and water treatment sectors.
- LED indicator on front panel shows DC output voltage presence.
- Operating temperature range from -25°C to 70°C facilitates versatile installations.
Product Description
Schneider Electric ABLM1A12021 is a Modicon ABL series switched mode DIN rail power supply designed to provide regulated DC voltage output with high reliability and efficiency. It accepts AC input voltage from 100V to 240V and delivers stable 12V DC output at a maximum current of 2.1A, with a power rating of 25W. This compact unit measures 36 mm in width, 91 mm in height, and 55.6 mm in depth, making it well-suited for space-constrained industrial control panels.
The power supply is engineered for applications in industrial, commercial, and residential environments including automation systems, conveying equipment, packaging machinery, food and beverage processing, mining operations, oil and gas installations, and water treatment plants. Its robust design includes protection against overload and short circuits with an automatic restart function to ensure continuous operation once fault conditions are cleared.
Certification to globally recognized standards such as UL 62368-1, EN/IEC 61010, EN 62368-1, CSA C22.2, and CE marking ensures compliance with safety and electromagnetic compatibility requirements. The IP20 rated enclosure safeguards the internal electronics in typical industrial conditions.

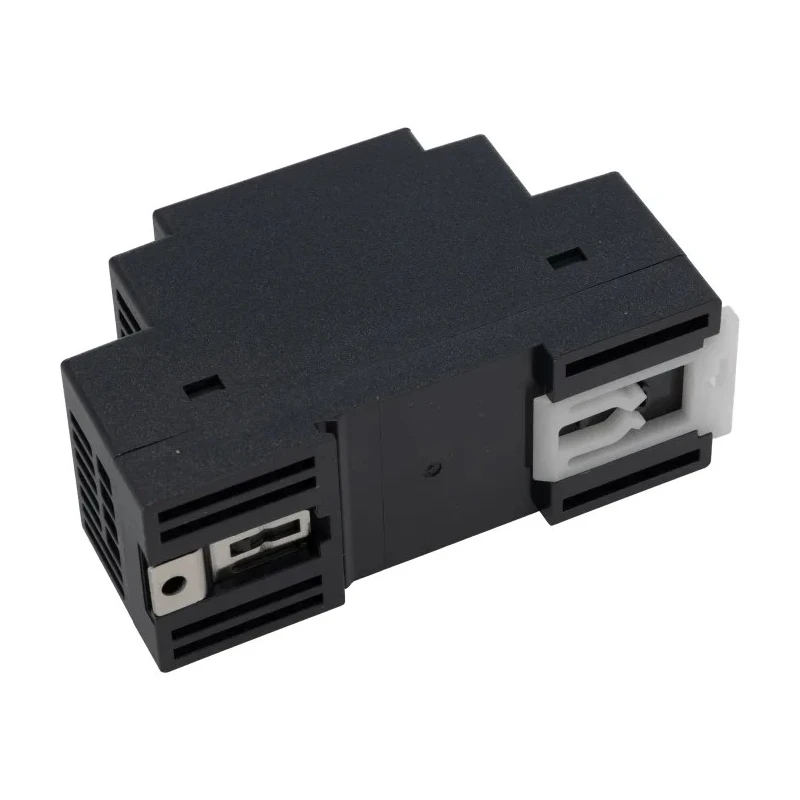

Installation is simplified by its modular housing that snaps onto a 35 mm omega DIN rail or can be secured by screws, enabling quick deployment without specialized tools. The unit includes an LED on the front face that indicates presence of the DC output voltage and a QR code for quick access to technical documentation.
Designed for safety in TT, TN, and IT earthing systems. 85% efficiency rating ensures low heat dissipation without the need for heatsinks. Compatible with wire sizes from 0.5 to 1.5 mm² (20 to 16 AWG). Recommended to be used with Acti9 iC60 miniature circuit breakers rated at 4A with B or C curve for upstream protection.
Compact and modular design enables easy integration into industrial enclosures and panels.
This robust DIN rail power supply is ideal for powering automation equipment and control systems across multiple industrial sectors. Browse EnvMart’s full range of Schneider Electric products for complementary equipment and accessories.
Explore more products in our Electronic Components, Power & Connectors category.
