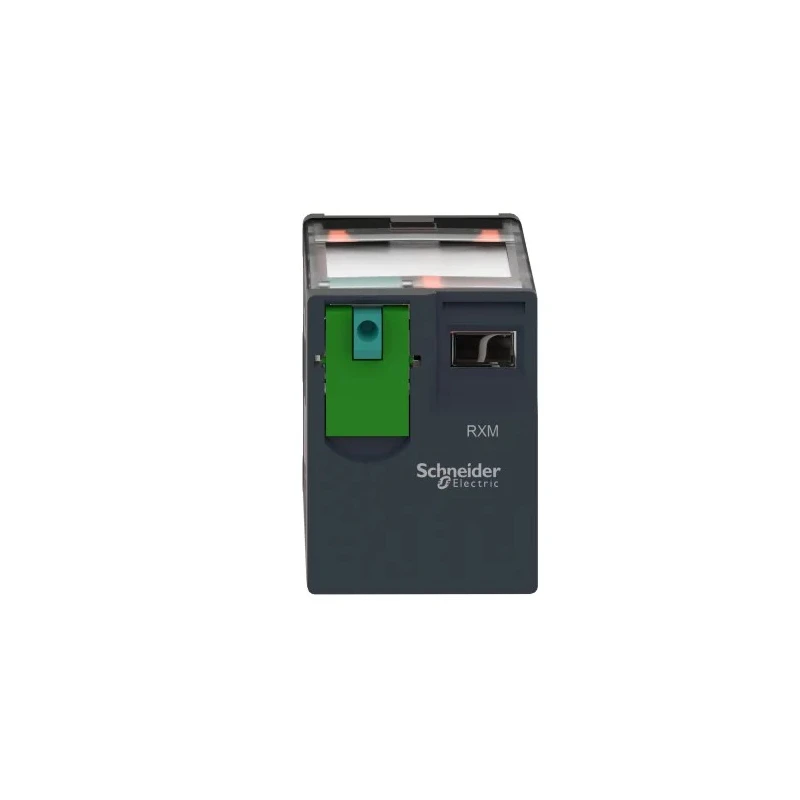

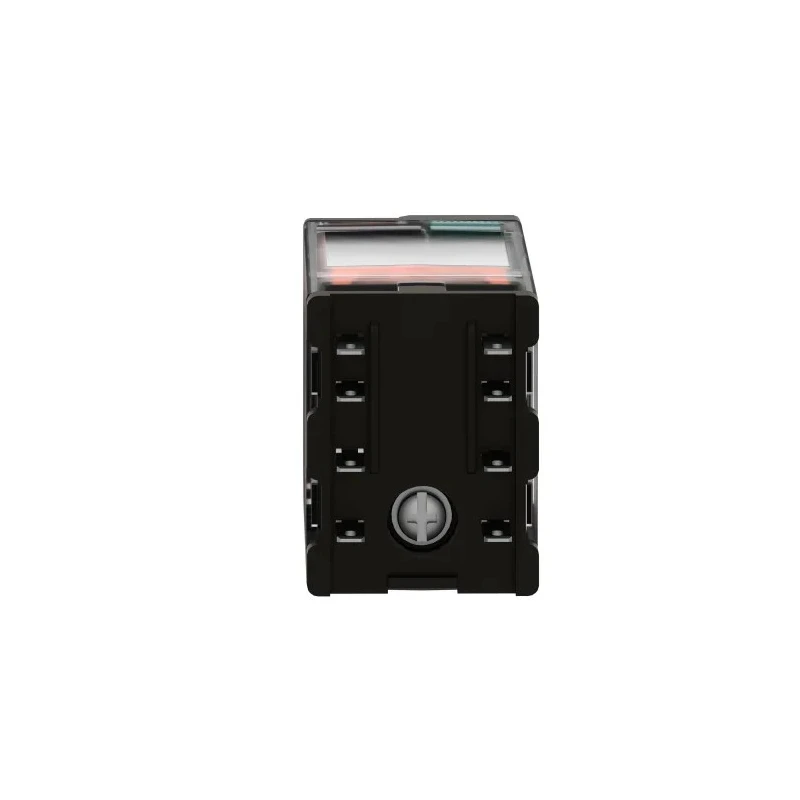

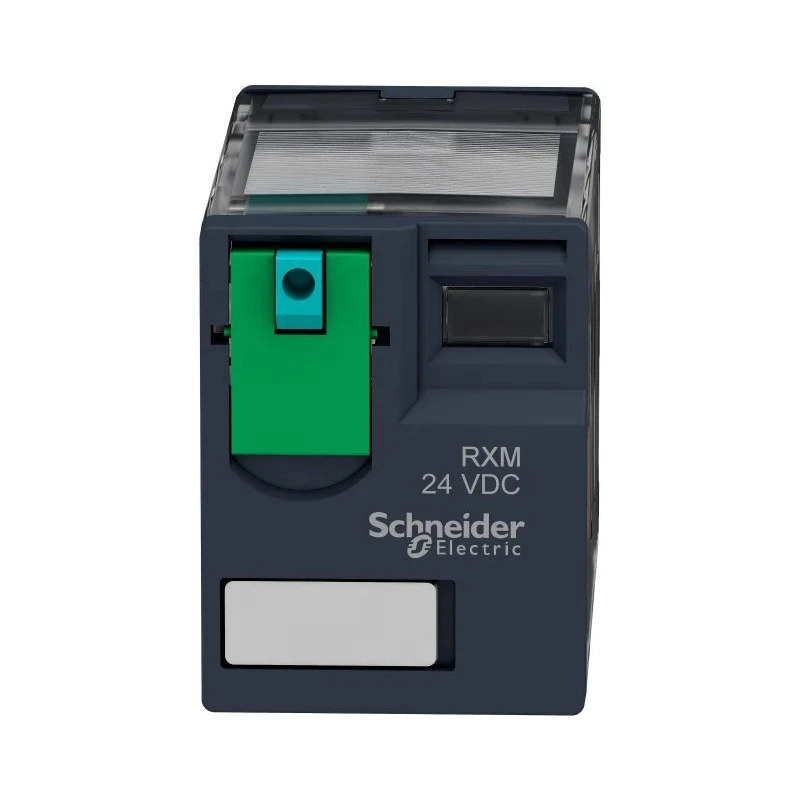

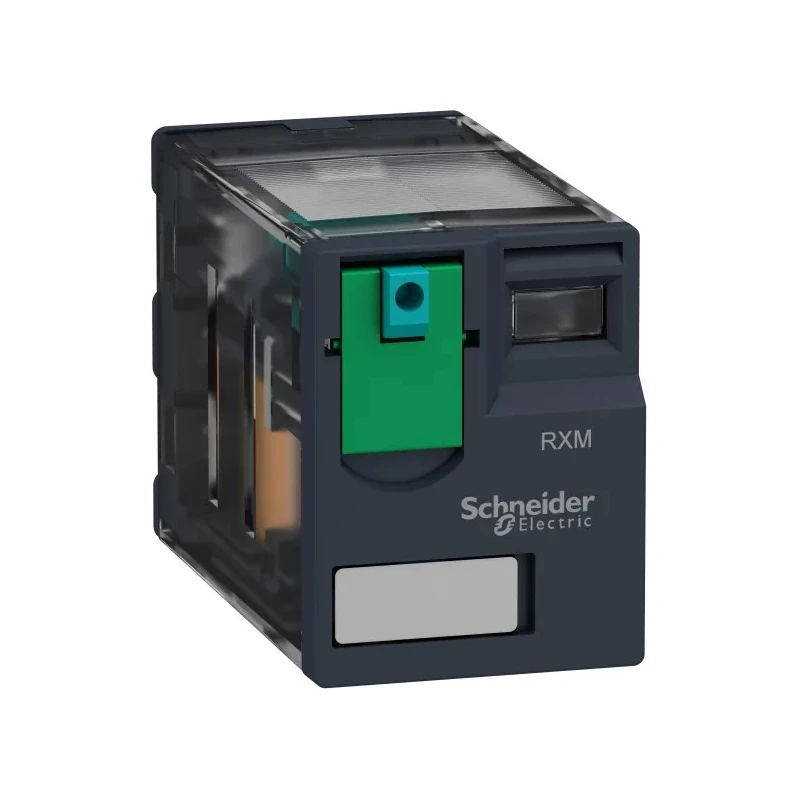

Schneider Electric Power Relay, 12V DC Coil, 12A Switching Current, Double Pole Double Throw DPDT RXM2AB1JD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM2AB1JD |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Plug-In |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 160Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 900mW |
Key Features
- The relay belongs to Harmony Relay RXM series offering compact plug-in design.
- It uses silver alloy contacts for high conductivity and durability.
- The coil resistance is 160 ohms with a coil power consumption of 900 mW.
- Designed for operating temperatures from -40°C to 55°C.
- The relay switches AC voltages up to 250V AC.
- Constructed with a transparent cover and IP40 protection rating.
- Equipped with a one-step lockable test button and mechanical status indicator.
- Ideal for industrial automation and PLC logic systems integration.
Product Description
Schneider Electric RXM2AB1JD is a high-performance power relay with a 12V DC coil and 12A switching current rating, designed for use in industrial, electrical, and automation applications.
This double pole double throw (DPDT) relay from the Harmony RXM miniature series provides a compact plug-in solution suitable for simple and complex automation control systems. Its silver alloy contacts ensure reliable electrical conduction with long-term durability, capable of handling switching AC voltages up to 250V AC.
The relay features a coil resistance of 160 ohms and consumes only 900 mW coil power, optimized for efficient operation across a temperature range of -40°C to 55°C. The rugged design includes a transparent cover and an IP40 rating, allowing visual inspection of contact status and protection against external elements.
Additional functionalities include a one-step lockable test button and a mechanical indicator to easily verify relay status during maintenance or troubleshooting. Ideal for integration with programmable logic controllers (PLCs) and hard-wired logic systems, it helps reduce enclosure size and enhances machine reliability.
Compliant with international standards including CSA and CE, the RXM2AB1JD relay is a green premium product made in China, supporting global quality benchmarks. The relay is part of the Harmony RXM series of miniature plug-in relays without LED indicators.
It operates with a coil control voltage of 12V DC and supports a switching current of 12A. DPDT contact configuration provides two changeover contacts in a compact design. Built with silver alloy contact material for superior conductivity.
Integrated test button and mechanical status indicator enhances operational diagnostics. Designed to withstand temperature extremes from -40°C to 55°C. Protective transparent casing with IP40 protection rating allows easy visual status checking.
Conforms to CSA and CE certification standards ensuring product safety and reliability. Manufactured in China, offering global compatibility and quality assurance. Explore the power relay category at EnvMart for a wide range of industrial electrical and automation components suited to diverse applications.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXM2AB1JD relay has a switching current rating of 12A.
This model operates with a coil control voltage of 12V DC.
The relay is designed to operate within a temperature range of -40°C to 55°C.
It features a double pole double throw (DPDT) contact configuration.
The coil resistance of this relay is 160 ohms.
The relay can switch AC voltages up to 250V AC.
The contacts are made of silver alloy, providing high conductivity.
The coil power consumption is 900 mW.
The dimensions are 27mm in height, 21mm in length, and 47.7mm in width.
Yes, it is compliant with CSA and CE certification standards.
It includes a one-step lockable test button and a mechanical status indicator for easy verification of relay status.
The relay is equipped with a plug-in terminal type.
