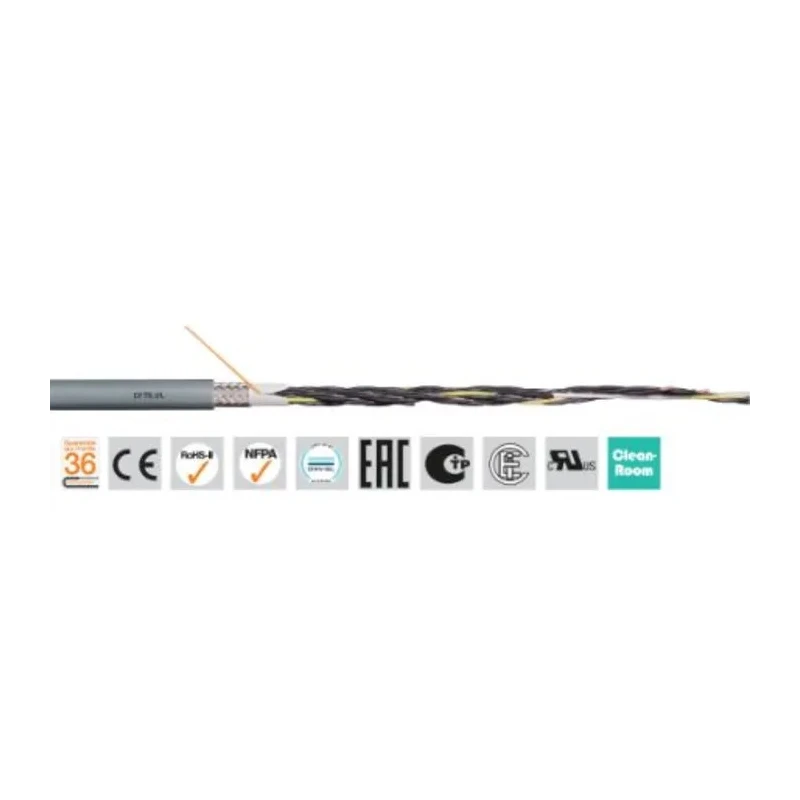

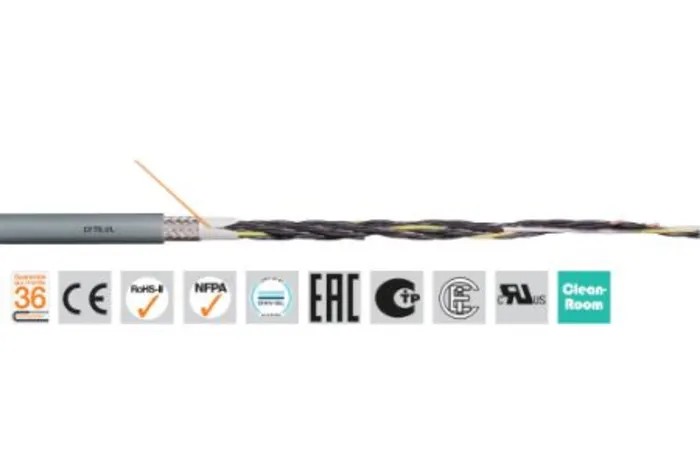

Igus Chainflex CF78.UL Screened Control Cable 18 Cores 1.5mm² 15 AWG 50m Thermoplastic Elastomer Jacket CF78.UL.15.18 (50m)

Igus CF78.UL.15.18 (50m) screened control cable is a premium industrial cable designed for high-demand applications requiring robust flexibility and durability. Featuring 18 cores with 1.5mm² cross-sectional area (15 AWG), the cable’s thermoplastic elastomer grey jacket provides superior abrasion resistance and chemical protection, making it ideal for use in automation, control systems, and e-chain applications.

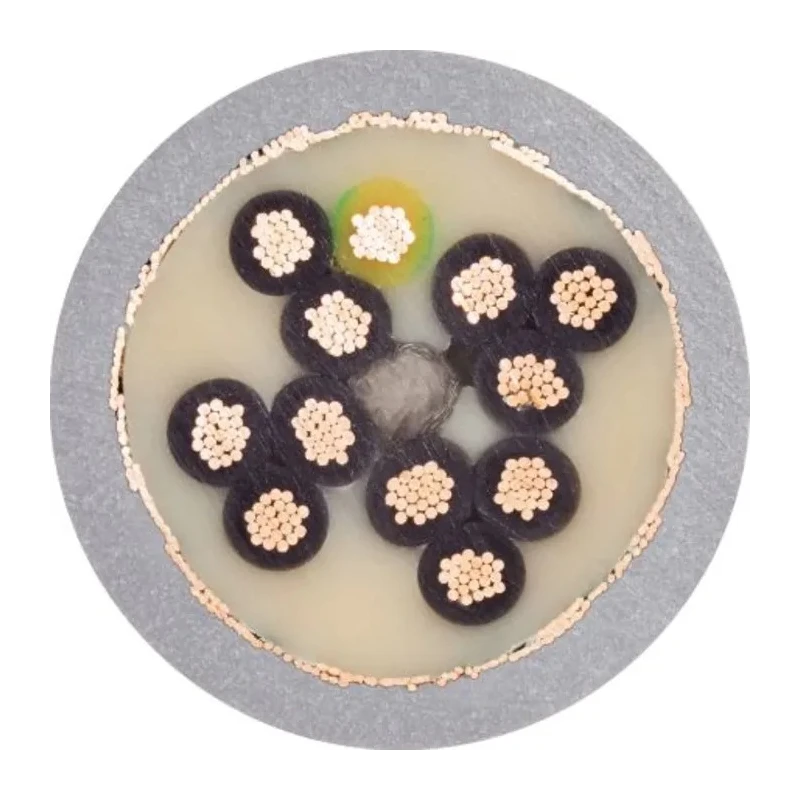

The patented core bundle design significantly enhances longevity in dynamic environments where continuous flexing occurs. The low angled braided screen minimizes electromagnetic interference (EMI), ensuring signal integrity in industrial automation and machinery operations.

Rated for 300 and 500 volts, the cable operates reliably across a wide temperature range from -50°C up to +80°C, accommodating harsh conditions indoors and outdoors including wet and oily environments. Flame retardant and halogen-free characteristics improve safety compliance to international standards IEC 60332-1-2, CE, and EN, while also meeting UL/CSA standards and NFPA 79 guidelines.

This cable is engineered for applications such as machine tools, storage and retrieval units, packaging industry, refrigeration systems, and high-bay warehousing, providing a long travel rating for lengths up to 400 meters in flexible chain systems. Its medium UV resistance supports outdoor exposure without degradation.

Manufactured in Germany, Igus provides a 36-month chainflex warranty supported by rigorous lab testing done over 2,750 meter runs with simultaneous load tests ensuring minimal downtimes and extended service life.

The cable features a patented core bundle design for long lasting use in dynamic and flexible systems. It is suitable for continuous flexing applications with a low angled braided screen for improved EMC and EMI protection.

The jacket material offers high abrasion resistance and excellent chemical and oil resistance (Class 4 oil-resistant). Rated for 300/500 V and temperature range from -50°C to +80°C for versatile indoor and outdoor usage.

Complies with CE and EN standards and is flame retardant as per IEC 60332-1-2, halogen free, and silicone-free. Industry suitable for machinery, packaging, refrigeration, warehousing, and quick handling systems. German manufactured ensuring quality and reliability with a 36-month chainflex guarantee based on extensive laboratory testing.
