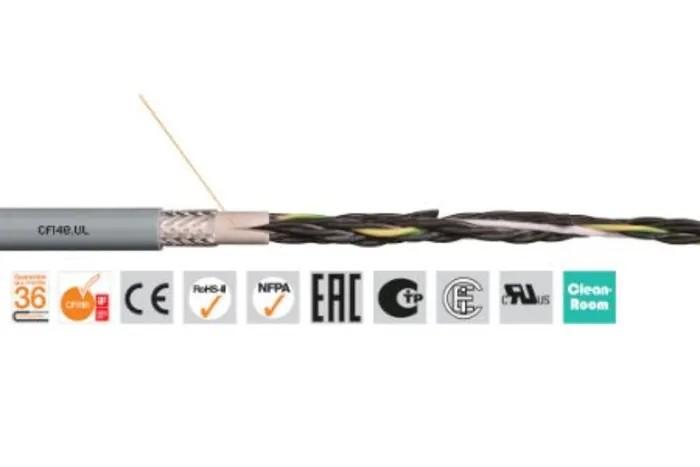

Igus Chainflex CF140.UL Screened Control Cable 5 Cores 1.5mm² 15 AWG Thermoplastic Elastomer Sheath 50 m CF140.15.05.UL (50m)
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF140.15.05.UL (50m) |
| Cable Length | 50m |
| Series | Chainflex CF140.UL |
| Outside diameter | 10.5mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 5 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 15AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 1.5mm² |
Key Features
- The cable features a durable grey thermoplastic elastomer sheath for excellent chemical and oil resistance.
- Built with stranded copper conductors and an armoured, screened design to minimize electromagnetic interference.
- Suitable for control cable use with voltage rating of 300/500 V and maximum operating temperature of 70°C.
- Ideal for medium duty, indoor or outdoor applications above freezing, including wood and stone processing or packaging industries.
- Patented core bundling ensures a small bend radius for flexible installation especially in cable carriers (echains).
- Flame retardant compliance with IEC 60332-1-2 and other standards enhances safety.
- Oil resistant Class 4 jacket supports long service life in harsh environments.
- Screened design reduces EMC/EMI cross talk in sensitive electrical setups.
Product Description
Igus CF140.15.05.UL (50m) screened control cable is engineered with a robust thermoplastic elastomer jacket that offers superior abrasion and chemical resistance, suitable for complex industrial automation and electrical control systems.
This 5-core cable with 1.5mm² conductor size uses stranded copper conductors that ensure reliable electrical performance and fatigue resistance. It is fully armoured and screened with a low-angled braided screen that optimizes it for continuous flexing applications common in dynamic machinery setups.
Rated for 300/500 V operation, this cable withstands temperatures from -15°C to 70°C, making it ideal for indoor use or outdoor sites above freezing temperatures. Its patented bundled core design supports small bend radii required for cable carriers (echains), ensuring installation space efficiency and durability.
Designed especially for medium duty uses such as wood and stone processing, packaging, supply systems, and handling equipment, it meets multiple international safety and quality standards including IEC 60332-1-2 flame retardant classifications. Its oil resistance and longevity are verified through the igus laboratory's extensive testing and a three-year warranty.
The cable sheath is flame retardant and silicone-free, compliant with relevant international norms for industrial safety. Armoured and screened construction reduces electromagnetic interference, enabling use in sensitive industrial controls and automation systems.
Its robust design allows reliable use in travel lengths up to 400 meters in cable carriers. Maintaining high abrasion resistance, it minimizes unplanned downtime by guaranteeing a long service life even under harsh conditions.
Manufactured in Germany with strict quality controls and conformity certifications.
This product perfectly suits industrial installations requiring screened control cables with resilient mechanical, chemical, and electrical performance. Browse EnvMart’s extensive range of Control Cables and industrial automation components for complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Igus CF140.15.05.UL control cable has a voltage rating of 300/500 V.
This model can operate at a maximum temperature of 70°C.
The cable features 5 cores.
The conductors are made of stranded copper.
The outside diameter of this cable is 10.5 mm.
The minimum operating temperature is -15°C.
It is constructed with a thermoplastic elastomer jacket, which provides chemical and oil resistance.
Yes, the cable is flame retardant and complies with IEC 60332-1-2 standards.
It is suitable for medium duty applications such as wood and stone processing, packaging, and handling equipment.
This control cable complies with EN and CE standards.
The cable length is 50 meters.
The American Wire Gauge (AWG) rating for this cable is 15 AWG.
