Alpha Wire Ecogen Ecowire Plus Series Brown 0.52 mm² Hook Up Wire, 20 AWG, 7/0.32 mm Core Strands, 30 m Length 6824 BR005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.52mm² |
| Model | 6824 BR005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.37mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Cable Type | Hookup |
| Wire Diameter | 0.054 Inch (1.37 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 20 AWG (0.56 mm²) |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Brown |
| Fire Behaviour | Flame Retardant, Low Smoke Halogen Free |
| American Wire Gauge | 20AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.32mm |
| Size of Strands | 0.32mm |
| Stranding | 7/28 (7 x 0.32) |
Key Features
- Constructed with stranded bare copper conductors for excellent electrical conductivity.
- Features modified polyphenylene ether (mPPE) insulation for enhanced durability and chemical resistance.
- Flame retardant and low smoke halogen-free jacket ensures safety in demanding environments.
- Designed for hazardous fluid resistance and high temperature tolerance in industrial applications.
- Complies with CE, ISO 6722, RoHS, Reach regulations for environmental and safety standards.
- Suitable for use in solar, transportation, wind power, industrial, and medical sectors.

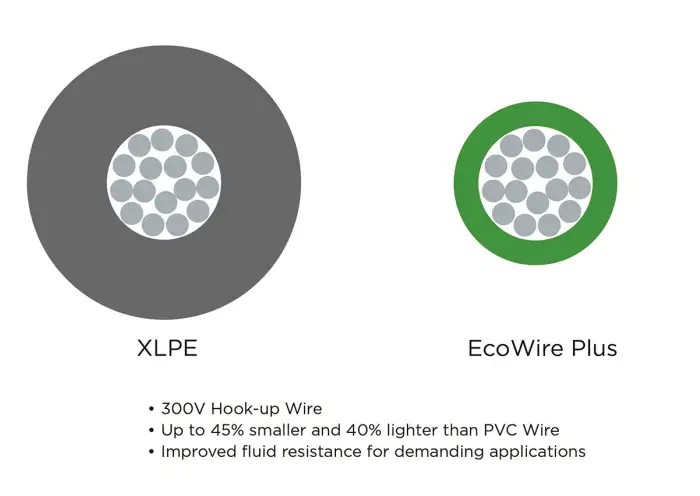

- The thin insulation wall provides superior dielectric strength with reduced material usage.
- The wire is 100% recyclable and meets WEEE directive requirements.
Product Description

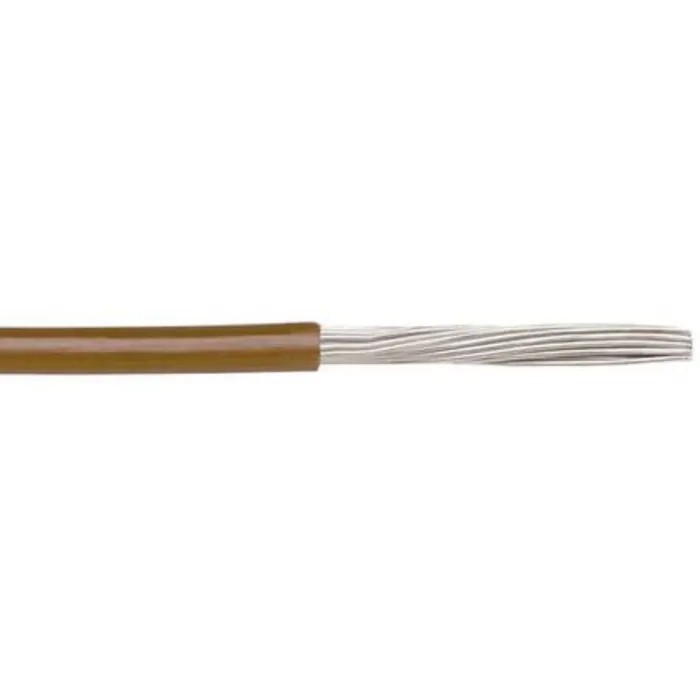

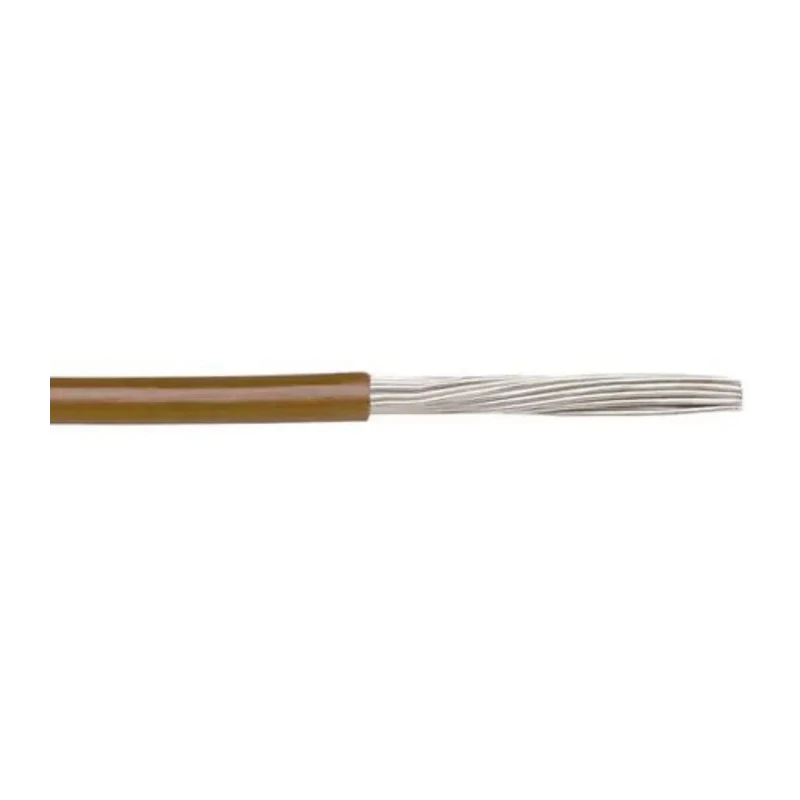

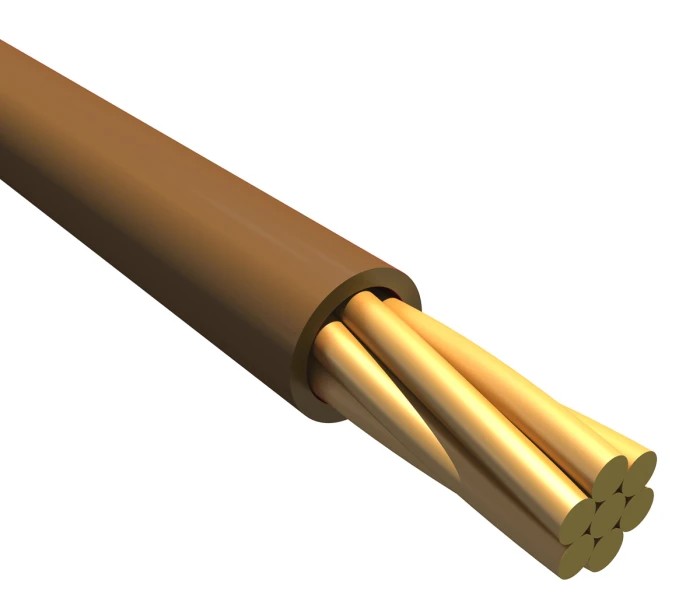

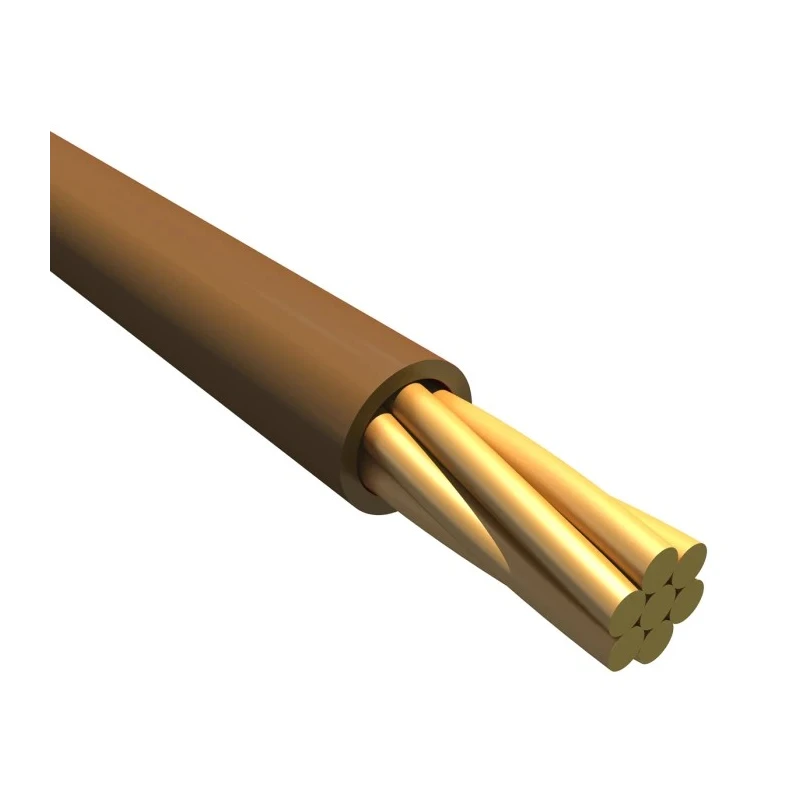

Alpha Wire 6824 BR005 Ecogen Ecowire Plus Series Hook Up Wire is a high-performance brown wire with a cross-sectional area of 0.52 mm², American Wire Gauge of 20 AWG, and consists of 7 strands of 0.32 mm core strands totaling 30 meters in length. It features modified polyphenylene ether (mPPE) insulation, providing superior fluid resistance, reduced wall thickness, and excellent dielectric properties suitable for challenging factory environments.
Constructed with stranded bare copper conductors, this hook-up wire ensures reliable electrical conductivity. The insulation is flame retardant and low smoke halogen-free, aligning with stringent safety and environmental standards including CE, ISO 6722, RoHS, and Reach compliance.
EcoWire Plus hook-up wire is ideal for applications requiring resistance to oils, solvents, fuels, and other hazardous liquids, making it suitable for solar power systems, transportation equipment, wind power generation, industrial machinery, and medical devices.
With an operating voltage of 300 V and temperature range from -40°C to +110°C, it meets the demands of a broad range of industrial and commercial electrical wiring tasks. The wire's 100% recyclable mPPE insulation supports sustainable manufacturing and disposal practices.
Stranded bare copper conductors for excellent conductivity. Modified polyphenylene ether insulation offers durability and chemical resistance. Flame retardant, low smoke halogen-free for safety compliance. Meets CE, ISO 6722, RoHS, and Reach standards.
Suitable for industrial, solar, transportation, wind power, and medical applications. Operates reliably from -40°C to +110°C at 300 V. 30 meters length with 0.52 mm² cross-sectional area. Environmentally friendly and recyclable materials.
Alpha Wire provides industry-leading wiring solutions with advanced materials engineered for high performance and sustainability. Browse more hook-up wire products for your industrial and electrical needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cross-sectional area of this hook-up wire is 0.52 mm².
The maximum operating temperature for this model is +110°C.
The voltage rating of this series is 300 V.
It features modified polyphenylene ether (mPPE) insulation, which provides enhanced durability and chemical resistance.
This wire consists of 7 strands of 0.32 mm core strands.
The length of this hook-up wire is 30 meters.
This wire complies with CE, ISO 6722, RoHS, and Reach regulations.
The minimum operating temperature for this wire is -40°C.
The outside diameter of this wire is 1.37 mm.
This wire is suitable for applications in solar power systems, transportation, wind power generation, industrial machinery, and medical devices.
The wire is flame retardant and low smoke halogen-free, ensuring safety in demanding environments.
The conductor material used in this wire is copper.
