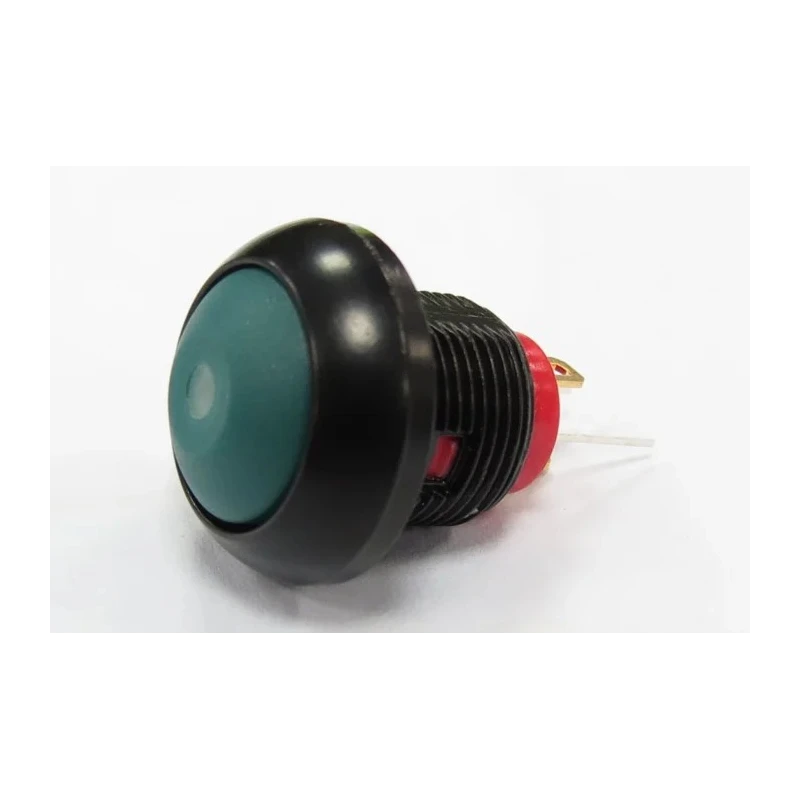

RS PRO Illuminated Push Button Switch Momentary Panel Mount SPST Green LED 13.6 mm Cutout IP67 36 V dc 250 V ac 209-9122

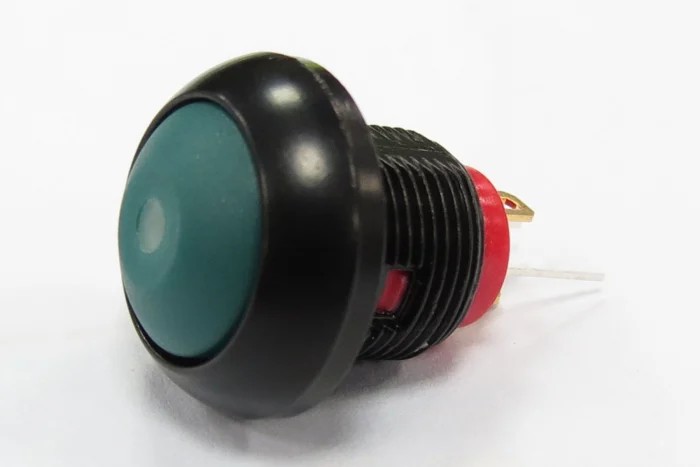

RS PRO 209-9122 Illuminated Push Button Switch is a high-quality, momentary SPST panel mount switch with a durable flat actuator cap featuring a green LED illumination. This switch is designed to provide reliable control in industrial, laboratory, telecommunications, and manufacturing environments where robust performance and IP67 protection are required.

The sub-miniature switch fits a 13.6 mm panel cutout and offers versatile mounting options including threaded and snap-in designs. Its Polyamide 6/6 housing ensures excellent mechanical and chemical resistance, while the gold over silver-plated contacts deliver consistent electrical performance with a switch contact current rating of 125mA. Operating temperature spans from -35°C to 85°C, making it suitable for harsh environmental conditions.

This SPST (single-pole, single-throw) switch features a momentary Off-(On) operation ideal for machine controls, process activation, and instrumentation. The green LED illumination aids in user interface clarity and efficient machine status indication.

The IP67 ingress protection rating certifies that the switch is dust tight and protected against temporary water immersion, allowing use in demanding industrial and outdoor applications. Solder lug terminals facilitate easy and secure wiring.

Sub-miniature momentary push button with green illuminated flat actuator. 13.6 mm panel cutout suitable for threaded or press-fit mounting. Durable Polyamide 6/6 material with gold over silver contacts. IP67 rated sealing for dust and water resistance.

Voltage ratings of 36 V dc and 250 V ac with 125 mA switching current. Wide operating temperature range from -35°C to 85°C. Long mechanical life of one million cycles. Solder lug terminals for secure electrical connection.

Applications include test equipment, telecommunications, networking, and handheld appliances.

This RS PRO Push Button Switch is part of the PAS6 series, providing an economical and reliable solution for machine control and electronic equipment requiring illuminated momentary switches with environmental protection.
