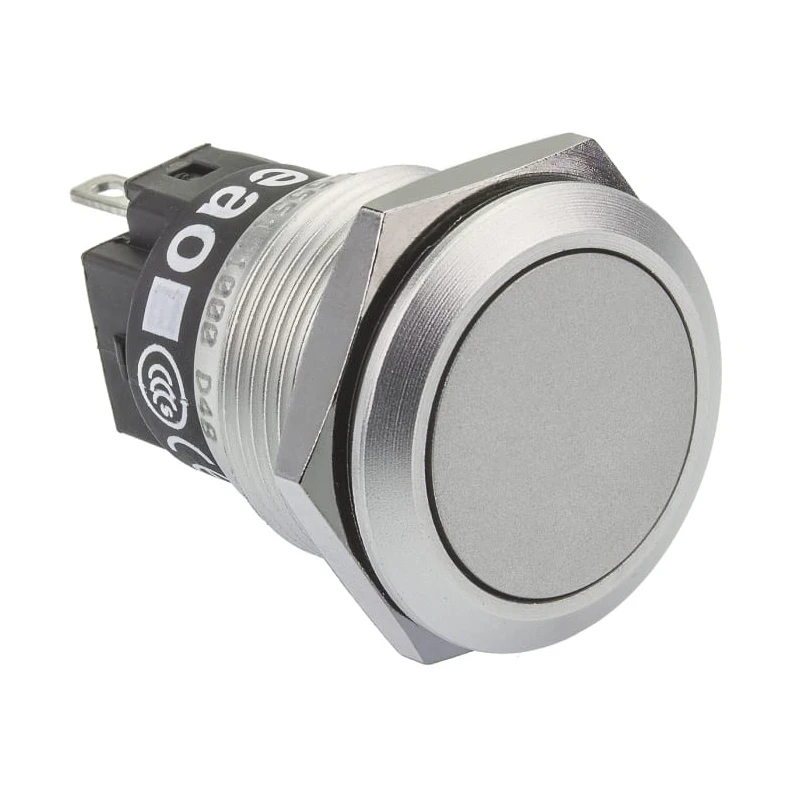

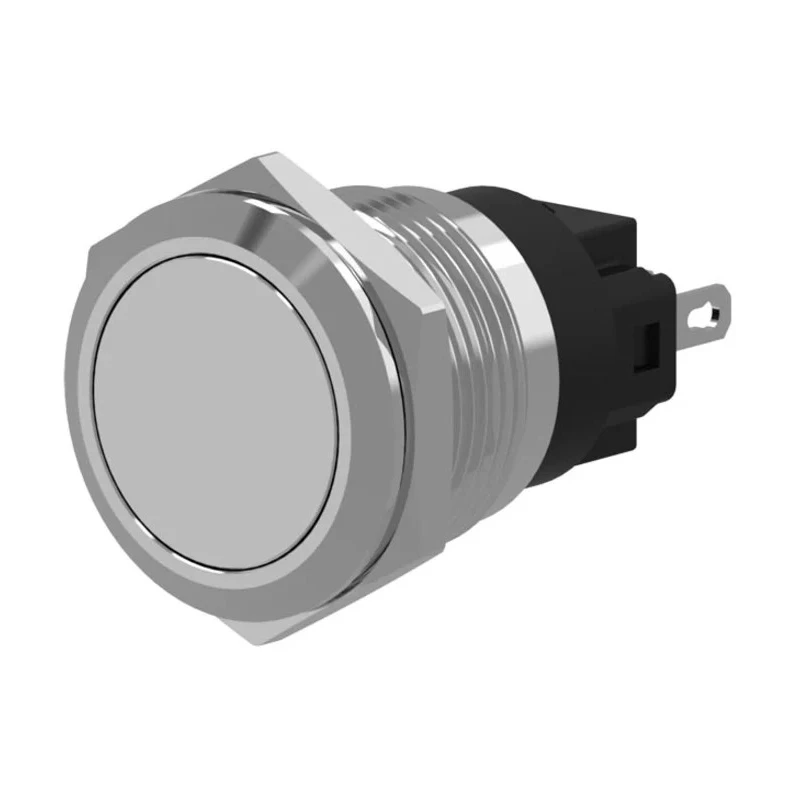

EAO 82 Series Momentary Push Button Switch, Panel Mount, 19 mm Cutout, SPDT, IP65 IP67, 240 V 3A 82-5551.1000

EAO 82-5551.1000 is a reliable momentary push button switch designed for robust industrial and automation applications. It features a panel mount design with a 19 mm cutout, suitable for various control panels requiring quick and temporary operation switches.

The switch employs a Single Pole Double Throw (SPDT) contact configuration, allowing it to control two separate circuits with NC and NO switch options. It is rated for 240 V in both AC and DC contacts and can handle a contact current of 3 A, making it versatile for mid-level electrical control needs.

Its aluminium construction safeguards against mechanical impacts and corrosion, enhancing durability in harsh environments. The actuator is naturally colored and flat styled for ease of use without compromising panel aesthetics.

Protection ratings of IP65 and IP67 certify that the switch is dust-tight and resistant to water immersion up to 1 meter for 30 minutes. Its operating temperature range from -30°C to +70°C suits demanding industrial environments such as manufacturing, transportation, and commercial elevator systems.

The contacts are made from a silver alloy material, known for excellent conductivity and corrosion resistance, ensuring reliable electrical connection over time. The flush-mounted design reduces the risk of accidental activation, improving operational safety.

This momentary switch is ideally used in public transportation controls, electrically operated doors, elevators, and other machinery requiring temporary activation. The switch features a natural color actuator with a flat style for easy operation.

Panel cutout size is 19 mm to fit standard panel openings. Constructed with durable aluminium for impact and corrosion resistance. Rated for a contact current of 3 A and contact voltage of 240 V AC and DC. IP65 and IP67 ratings ensure dust-tight protection and submersion resistance up to 1 m for 30 minutes.

Designed for robust performance with an operating temperature range from -30°C to +70°C. SPDT switch configuration supports controlling two circuits simultaneously. Utilizes silver alloy contacts for reliable electrical conductivity and corrosion resistance.

Flush-mounted design minimizes accidental activation and enhances safety. Applications include public transportation systems, electrically operated doors, and elevators. Explore our catalog for more Push Button Switches and components for your industrial automation needs.
