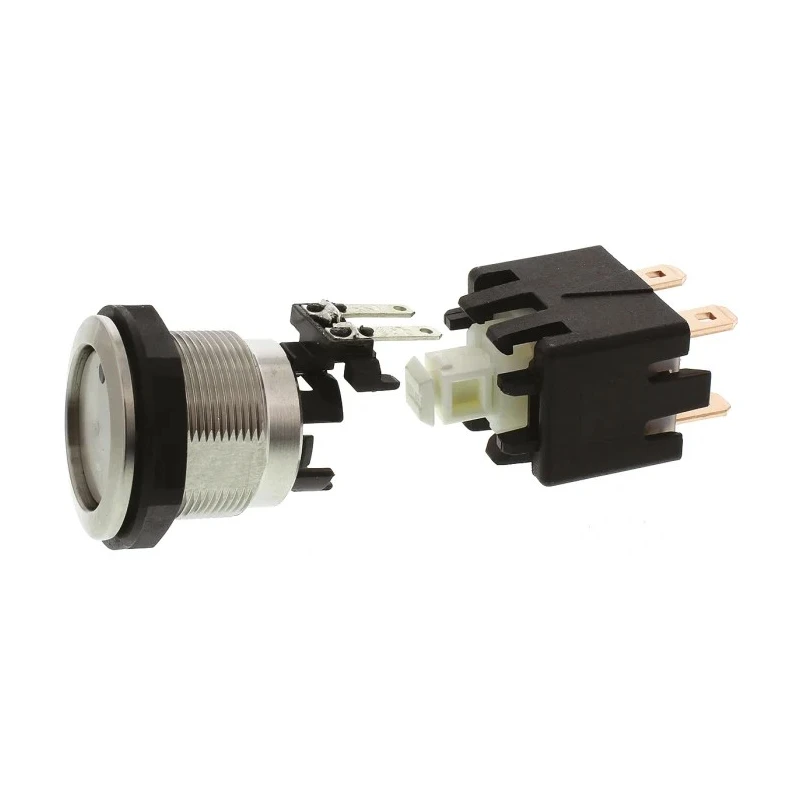

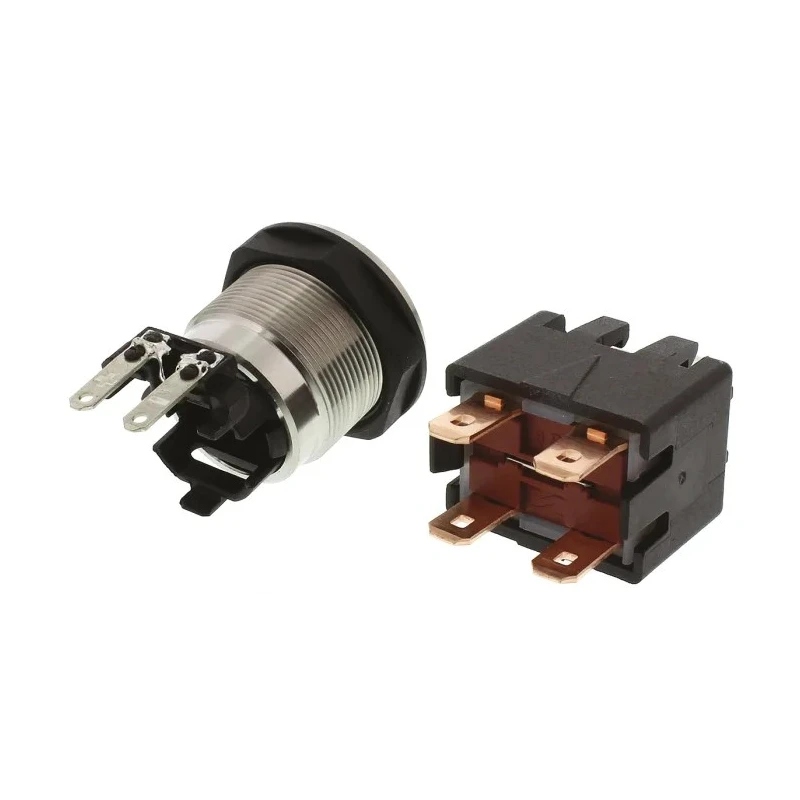

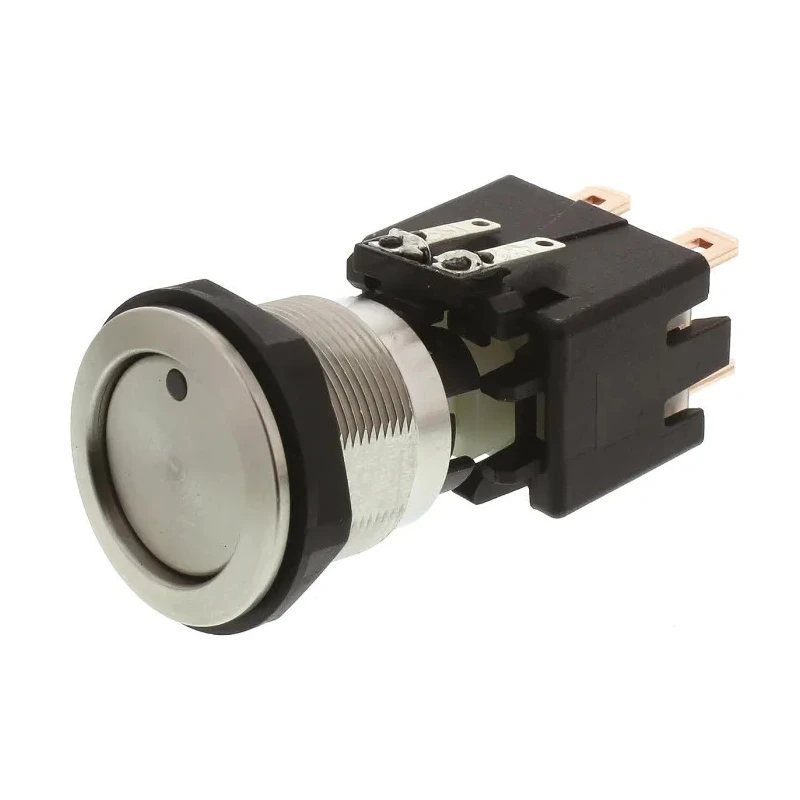

Schurter MSM LA 19 Series Illuminated Push Button Switch Latching Panel Mount 19 mm Cutout DPDT Blue LED 1241.6823.1124000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| IP Rating | IP00, IP64 |
| Mount Type | Panel |
| Series | MSM LA 19 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2P |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 19 mm |
| Terminal type | Tab |
| Standards/Approvals | IEC, RoHS, UL, CSA |
| LED Colour | Blue |
| Switch Operation | Latching |
| Actuator Colour | Natural |
| Contact DC Voltage | 30V dc |
| Actuator Style | Button |
| Switch Contact Current | 12A |
Key Features
- Features a 19 mm panel cutout for easy installation.
- DPDT contact configuration with double-pole, double-throw switch action.
- Blue LED illumination provides clear visual switching status.
- IP00 and IP64 ratings ensure protection against dust and moisture.
- Operating temperature range from -25°C to 85°C for versatile use.
- Robust stainless steel housing with IK07 shock resistance for harsh environments.
- Up to 150,000 mechanical operations for long service life.
- Button actuator with 10N operating force and 4.5 mm travel for reliable tactile feedback.
Product Description
Schurter 1241.6823.1124000 illuminated push button switch is designed for industrial and commercial applications requiring robust panel-mounted latching switches.
This push button switch features a 19 mm diameter panel cutout and offers a double-pole, double-throw (DPDT) contact configuration, suitable for control circuits requiring reliable switching action.
The actuator is a button style with natural color and incorporates a blue LED for illuminated status indication. Its design includes robust stainless steel housing that meets IK07 shock resistance standards, offering durability against mechanical impact.
With ingress protection ratings of IP00 and IP64, the switch resists dust ingress and water spray, making it suitable for harsh environmental conditions in industrial machinery, automation control panels, and HVAC systems.
The switch supports an operating temperature range from -25°C to 85°C, with a switch contact current rating of 12A and contact DC voltage tolerance of 30V. The actuator requires a 10N force to operate, with a travel distance of 4.5 mm, protruding 3.7 mm above the panel in the off state.
Quick connect terminals simplify installation and maintenance. This switch is compliant with IEC, RoHS, UL, and CSA standards, ensuring high quality and safety for industrial use. Typical applications include automation control panels, manufacturing equipment, electrical cabinets, and machinery control interfaces.
Features a 19 mm panel cutout for easy installation. DPDT contact configuration with double-pole, double-throw switch action. Blue LED illumination provides clear switching status. Robust stainless steel housing meets IK07 shock resistance standards.
Ingress protection of IP00 and IP64 for dust and water resistance. 10N actuator operating force with 4.5 mm travel. Quick connect terminals for efficient wiring. Complies with IEC, RoHS, UL, CSA standards for quality assurance.
Temperature range from -25°C to 85°C suitable for harsh environments. Switch contact current of 12A and contact DC voltage of 30V. Explore more high-quality Push Button Switches and industrial automation components at EnvMart to enhance your control systems and machinery setups.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double-pole, double-throw (DPDT) contact configuration, suitable for control circuits requiring reliable switching action.
The switch operates within a temperature range of -25°C to 85°C, making it suitable for various harsh environments.
It has ingress protection ratings of IP00 and IP64, providing resistance against dust ingress and water spray.
The actuator is a button style that requires a force of 10N to operate, with a travel distance of 4.5 mm.
This switch requires a 19 mm diameter panel cutout for installation.
The switch has a contact current rating of 12A, suitable for various applications.
It complies with IEC, RoHS, UL, and CSA standards, ensuring quality and safety for industrial use.
It features tab-type quick connect terminals, simplifying installation and maintenance.
The switch incorporates a blue LED for illuminated status indication, providing clear visual feedback.
The switch is housed in robust stainless steel, which meets IK07 shock resistance standards for durability against mechanical impact.
Typical applications include automation control panels, manufacturing equipment, electrical cabinets, and machinery control interfaces.
In the off state, the actuator protrudes 3.7 mm above the panel.
