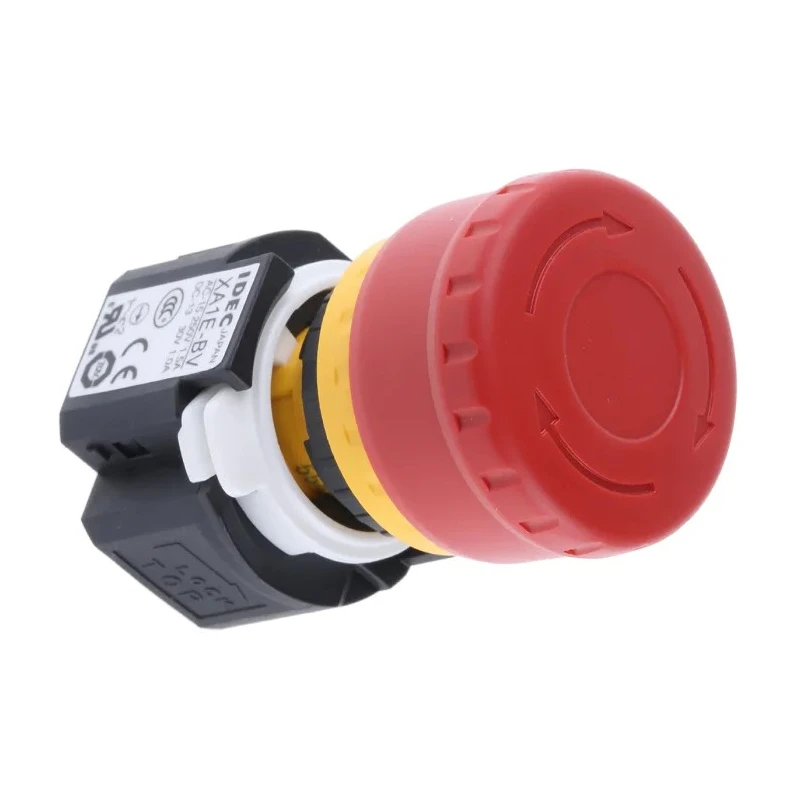

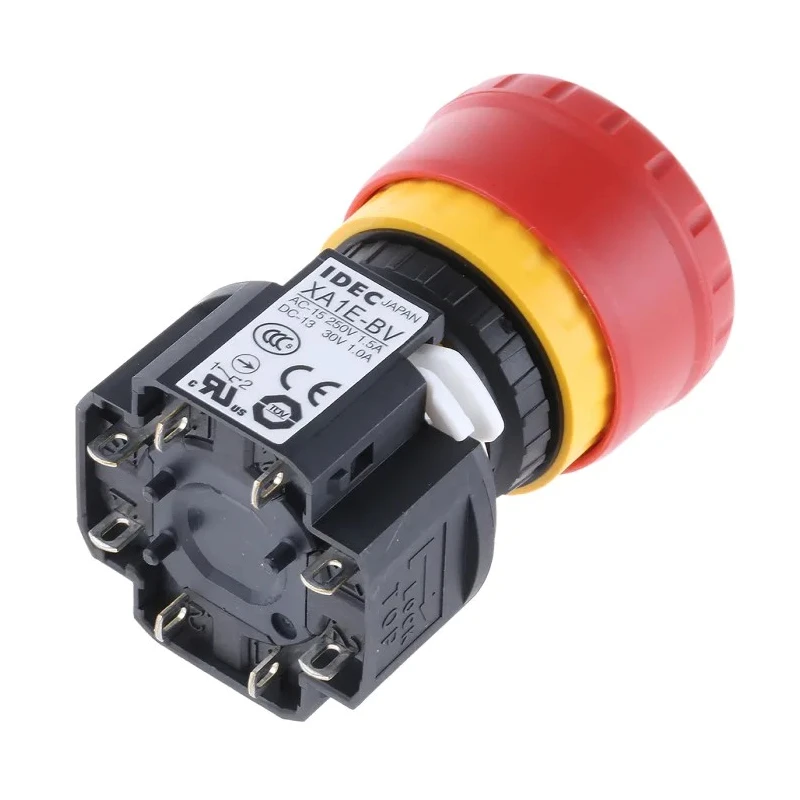

Idec XA Series Emergency Stop Push Button Panel Mount 16.2 mm Cutout 4PST Contact Configuration IP65 XA1E-BV304R

Idec XA1E-BV304R Emergency Stop Push Button is a panel mount device designed for secure and reliable emergency stop functions in industrial and automation settings. It requires a 16.2 mm diameter cutout for installation and offers a 4PST contact configuration ensuring effective circuit interruption.

The housing combines plastic and metal materials for robustness and durability. The mushroom head style button is ergonomically designed for fast and intuitive activation, as well as easy manual reset by twisting or pulling.

The contact current rating is 5A with an AC voltage rating of 250V, making it suitable for a range of electrical control circuits. The device features a "safe break action" mechanism to guarantee that normally closed contacts open immediately when the contact block is separated from the operator, thus enhancing operational safety.

With an IP65 rating, this push button is resistant to dust and water jets, enabling use in demanding industrial environments. It includes four auxiliary contacts to accommodate auxiliary circuit requirements and uses solder type terminals for reliable connections.

Certified by CSA and UL and complying with ISO13850 and EN60947-5-5 standards, this emergency stop switch is designed to meet rigorous safety regulations. The device is secured from behind the panel to prevent removal from the front, enhancing tamper resistance and workplace safety.

Ideal for applications in industrial automation, manufacturing controls, and safety systems, the Idec XA1E-BV304R ensures dependable emergency stop operation, protecting personnel and machinery from hazards.

Constructed with durable plastic and metal housing for long-lasting use. Features a mushroom head style designed for easy activation and reset. Rated for 5A contact current and 250V AC contact voltage. Designed with a "safe break action" to ensure contact separation on operator release.

Equipped with 4 auxiliary contacts to handle complex switching needs. Complies with ISO13850 and EN60947-5-5 safety standards. Secured from behind the panel to prevent front removal, enhancing safety. Reset simply by pulling or twisting the mushroom head.

Suitable for industrial, automation, and safety control applications. Discover the extensive range of Emergency Stop Push Buttons and safety switches at EnvMart for reliable and compliant industrial safety solutions.
