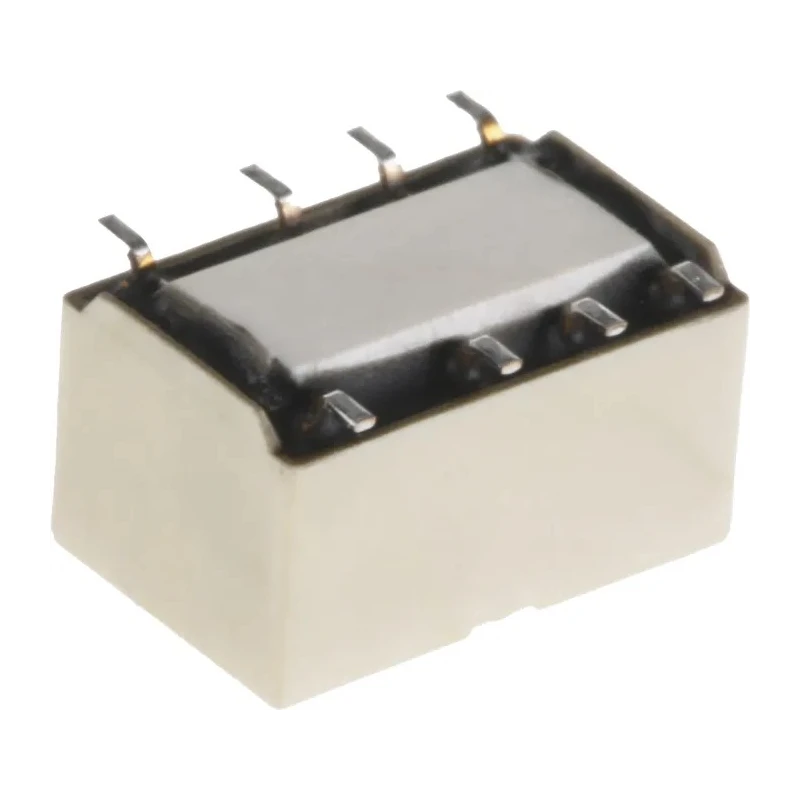

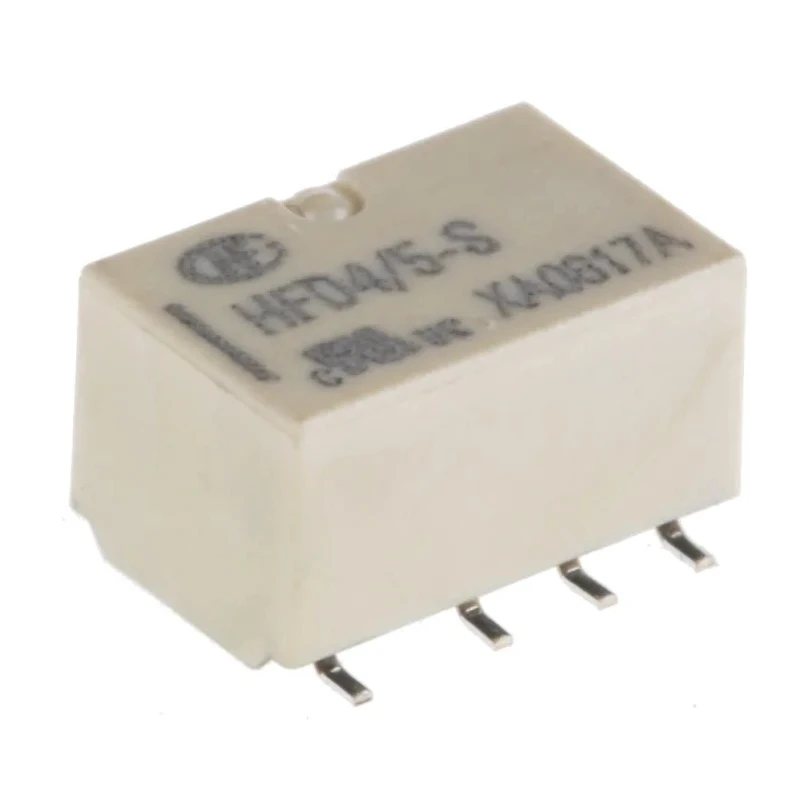

RS PRO 5V DC Coil PCB Signal Relay, SPDT Contact Configuration, 2A Switching Current, 250V AC / 220V DC Switching 800-4524
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 5.65mm |
| Length | 10mm |
| Model | 800-4524 |
| Width | 6.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated, Rhodium Plated Palladium Nickel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Contact Resistance | 70mΩ |
| Standards/Approvals | RoHS Compliant, cULus E133481 |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Aratas Surface Signal Relay, 5V dc Coil, 1A, DPDTBrand | Omron |
Key Features
- Coil power consumption is 140 mW ensuring efficient operation.
- Gold plated contacts improve conductivity and durability.
- Compact size with 10 mm length, 6.5 mm width, and 5.65 mm height.
- Operating temperature range from -40°C to 85°C for varied environmental conditions.
- Isolated coil to contact voltage of 1.6 kV AC provides safety and reliability.
- Solder type terminal ensures stable electrical connection on PCB.
- Conforms to RoHS and cULus E133481 standards.
- Suitable for signal and microcontroller input applications requiring non-latching functionality.
Product Description
RS PRO 800-4524 PCB Signal Relay is a high-quality, non-latching SPDT relay with a 5V DC coil voltage and a switching current capacity of 2A. Designed specifically for PCB mounting, this relay operates reliably within a temperature range of -40°C to 85°C, making it suitable for a wide variety of industrial and commercial electrical applications.
The relay features gold plated contacts with rhodium plated palladium nickel material, providing excellent conductivity and long service life. It supports switching voltages up to 250V AC and 220V DC, with a maximum switching power rating of 60 VA (DC) and 62.5 VA (AC). Due to its non-latching design, the relay is often used in keyboard circuits and microcontroller input applications where the switch automatically returns to its original position.
With dimensions of 10 mm length, 6.5 mm width, and 5.65 mm height, and solder terminals for secure PCB installation, this signal relay is a compact and reliable component for electronics and electrical systems. The coil resistance is 178 ohms with a power rating of 140 mW, ensuring energy efficient operation with minimal power loss.
This relay is designed to endure demanding industrial conditions, capable of 100,000 electrical operations and up to 100 million mechanical operations, which guarantees longevity and dependable performance in automation, control, and signal conditioning environments.
The RS PRO 800-4524 meets RoHS compliance and carries the cULus E133481 certification, assuring adherence to environmental and safety standards. Manufactured in China, this relay offers trusted quality for use in industrial, laboratory, electrical, automation, and manufacturing applications.
Coil voltage: 5V DC for low power consumption. SPDT contact configuration allows versatile circuit switching. Switching current rating of 2A suitable for Signal Relays and controls. Compact PCB mount design with solder terminals.
Robust contact materials with gold plating for reliability. Wide operating temperature range from -40°C to +85°C. High isolation voltage of 1.6 kV AC between coil and contacts. Long lifespan with high mechanical and electrical endurance.
RoHS compliant and cULus certified for safety and environmental standards. Explore the Electronics & Electricals category for more high-quality relays and signal conditioning components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this signal relay is 5V DC, ensuring low power consumption during operation.
This model supports a maximum switching voltage of 250V AC and 220V DC.
The switching current capacity of this relay is 2A, making it suitable for various signal applications.
The relay has dimensions of 10 mm in length, 6.5 mm in width, and 5.65 mm in height, allowing for compact PCB mounting.
It features a Single Pole Double Throw (SPDT) contact configuration, which allows for versatile circuit switching.
The operating temperature range for this relay is from -40°C to 85°C, making it suitable for various environmental conditions.
The contacts are made of gold plated and rhodium plated palladium nickel materials, which enhance conductivity and durability.
This relay is designed for PCB mounting and features solder type terminals for a stable electrical connection.
The coil resistance of this relay is 178 ohms, which contributes to its efficient operation.
This relay is RoHS compliant and carries the cULus E133481 certification, ensuring adherence to safety and environmental standards.
This relay is rated for up to 100,000 electrical operations and up to 100 million mechanical operations, indicating its longevity in use.
This model is suitable for signal and microcontroller input applications, particularly where non-latching functionality is required.
