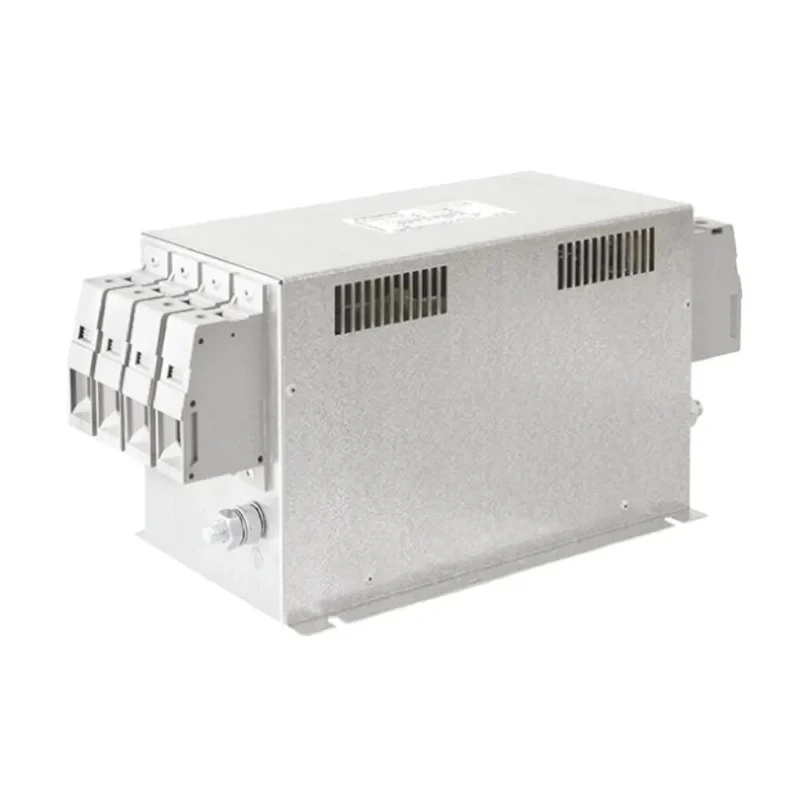

Schurter RFI Filter Screw Mount 3 Phase 36A 520V AC 50Hz/60Hz FMBD-B92B-3612
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 115mm |
| Length | 165mm |
| Model | FMBD-B92B-3612 |
| Depth | 155mm |
| Mount Type | Screw |
| Operating Frequency | 50, 60Hz |
| Series | FMBD NEO |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 2.4mΩ |
| Capacitance | 4.7μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 36A |
| Number of Phases | 3 |
| Leakage Current | 12.7mA |
| Maximum Voltage | 520V ac |
| Inductance | 12μH |
| Termination Style | Screw |
| Power Loss | 12.5W |
Key Features
- Two-stage metal cased chassis mounting for robust installation.
- High symmetrical and asymmetrical attenuation from 10kHz to 300MHz.
- Features a screw type termination and mounting style.
- Capacitance of 4.7μF and inductance of 12μH for efficient filtering.
- Operating temperature range from -25°C to 100°C.
- Low leakage current of 12.7mA ensuring safety and compliance.
- Resistance of 2.4mΩ and power loss of 12.5W reflecting performance efficiency.
Product Description
Schurter FMBD-B92B-3612 RFI Filter screw mount is a robust 3 phase filter rated at 36A and 520V AC, suitable for 50Hz and 60Hz operating frequencies. It is engineered to provide high symmetrical and asymmetrical attenuation of electromagnetic interference ranging from 10kHz to 300MHz, making it ideal for demanding industrial environments.
This filter belongs to the FMBD-NEO series featuring a two-stage metal cased chassis mounting with screw termination style, ensuring secure and stable installation. The unit has a capacitance of 4.7μF and inductance of 12μH which contributes to its excellent filtering performance. Its compact physical size with dimensions 115mm height, 155mm depth, and 165mm length allows for versatile integration within industrial electrical systems.
Designed to operate in temperature extremes from -25°C minimum to 100°C maximum, this filter maintains low leakage current of 12.7mA for safe and reliable operation. Resistance is maintained at 2.4mΩ with a power loss of 12.5W, indicative of efficient energy management during use.
This Schurter RFI filter is frequently utilized in industrial, manufacturing, and commercial electrical installations where power line noise and interference mitigation is critical to system performance and longevity.
Two-stage metal cased chassis mounting for secure installation. High symmetrical and asymmetrical attenuation for broad frequency interference suppression. Screw termination and mounting style ensure durability. 4.7μF capacitance and 12μH inductance optimize filter performance.
Operates safely between -25°C and 100°C temperature range. Low leakage current of 12.7mA enhances operational safety. Compact size with dimensions 115mm x 155mm x 165mm. Low resistance of 2.4mΩ and power loss of 12.5W for efficiency.
Explore more products in EMI Filters & Protection at EnvMart for reliable and quality electrical components.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this RFI filter is 36A.
This model operates at a maximum voltage of 520V AC.
It operates safely within a temperature range of -25°C to 100°C.
The dimensions of this unit are 115mm in height, 155mm in depth, and 165mm in length.
This filter uses a screw termination and mounting style for installation.
The capacitance is 4.7μF and the inductance is 12μH.
It provides high symmetrical and asymmetrical attenuation for frequencies ranging from 10kHz to 300MHz.
The leakage current is 12.7mA, ensuring safe operation.
The resistance is 2.4mΩ and the power loss is 12.5W, indicating efficient performance.
This filter is frequently utilized in industrial, manufacturing, and commercial electrical installations to mitigate power line noise and interference.
This model belongs to the FMBD-NEO series.
The country of origin for this filter is India.
