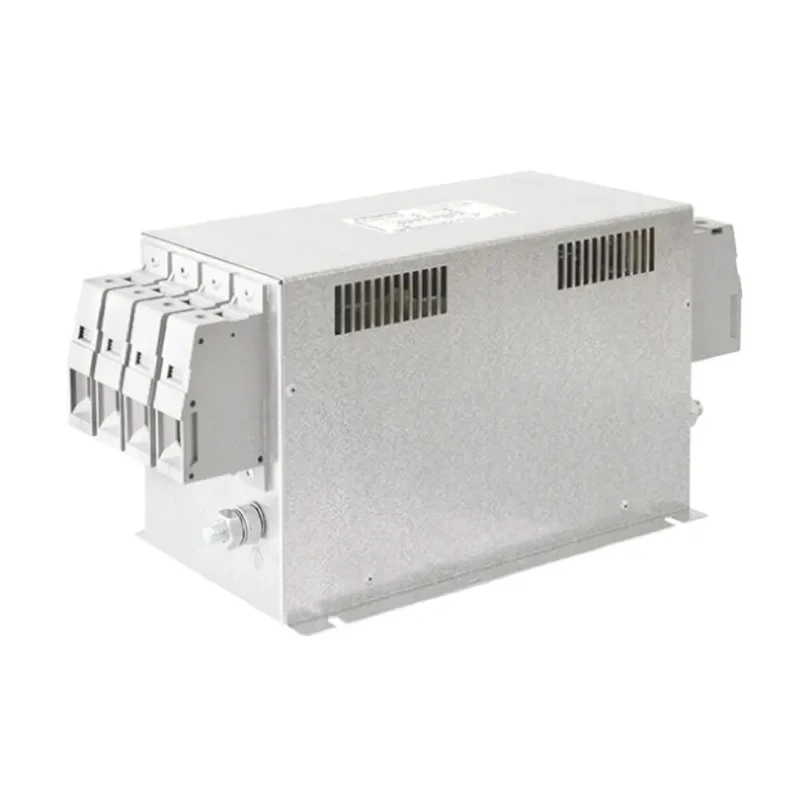

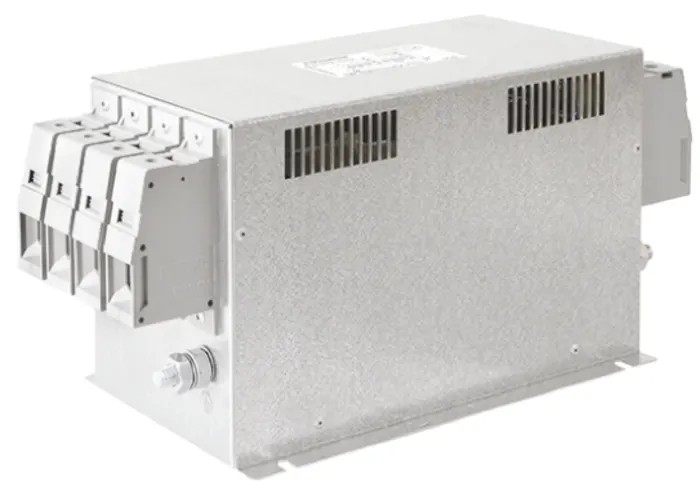

Schurter RFI Filter FMBD NEO Two Stage Metal Cased Chassis Mounting 3 Phase 160A 520V ac 50/60Hz FMBD-B92F-J612
Specifications
| Country of Origin | Slovakia |
|---|---|
| Brand | Schurter |
| Height | 170mm |
| Length | 380mm |
| Model | FMBD-B92F-J612 |
| Depth | 170mm |
| Mount Type | Screw |
| Operating Frequency | 50, 60Hz |
| Series | FMBD NEO |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 370Ω |
| Capacitance | 13.6μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 160A |
| Number of Phases | 3 |
| Leakage Current | 13.6mA |
| Maximum Voltage | 520V ac |
| Inductance | 400μH |
| Termination Style | Screw |
| Power Loss | 37.9W |
Key Features
- Two-stage chassis mounting design ensures robust EMI suppression.
- Supports maximum current rating of 160A for heavy-duty use.
- Rated for operating voltage up to 520V ac at 50Hz and 60Hz frequency.
- Includes screw mounting and termination style for secure installation.
- Offers inductance of 400µH and capacitance of 13.6µF for optimal filtering.
- Operates reliably within temperature range of -25°C to 100°C.
- Designed to minimize leakage current of 13.6mA for safety.
- Physical dimensions are 170mm height, 170mm depth, and 380mm length.
Product Description
Schurter FMBD-B92F-J612 is a high-performance RFI Filter from the FMBD-NEO series, featuring a two-stage metal cased chassis mounting design for 3 phase electrical systems. Rated for maximum current of 160A and voltage up to 520V ac at 50Hz and 60Hz, this filter effectively reduces electromagnetic interference with high symmetrical and asymmetrical attenuation across a wide frequency range from 10kHz to 300MHz.
Its screw type mounting and termination ensure secure and reliable connectivity in industrial and commercial power line applications. The filter's 13.6µF capacitance and 400µH inductance are optimized for efficient EMI suppression, contributing to enhanced equipment performance and compliance with power quality standards.
Operating temperature ranges between -25°C and 100°C, making it suitable for demanding environments. With a leakage current of only 13.6mA, it maintains safety while minimizing power loss rated at 37.9W. The dimensions of 170mm height, 170mm depth, and 380mm length make it practical for panel or chassis installation.
This product is manufactured in Slovakia under the reputable Schurter brand, known for quality electronic components. It is ideally used in industrial, manufacturing, HVAC, and power supply applications requiring robust EMI filtering and power line conditioning solutions.
Two-stage metal cased chassis mounting design. High symmetrical and asymmetrical attenuation between 10kHz and 300MHz. Supports 3 phase power systems with screw mounting. Rated for 160A current and 520V AC voltage operation.
Capacitance of 13.6µF and inductance of 400µH for optimal filter performance. Designed to operate under temperatures from -25°C to 100°C. Leakage current is 13.6mA ensuring electrical safety. Power loss is rated at 37.9W during normal operation.
Compact dimensions suitable for chassis installation: 170mm x 170mm x 380mm. Manufactured in Slovakia to ensure quality and reliability. Explore more Schurter power line filters and EMI protection components on EnvMart for your industrial and electrical needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 160A, making it suitable for heavy-duty use in industrial applications.
It is rated for an operating voltage of up to 520V AC, suitable for both 50Hz and 60Hz frequency applications.
The physical dimensions of this unit are 170mm in height, 170mm in depth, and 380mm in length, making it practical for chassis installation.
This model features screw mounting, ensuring secure installation in various applications.
It operates reliably within a temperature range of -25°C to 100°C, allowing it to function in demanding environments.
This filter has an inductance of 400µH and a capacitance of 13.6µF, optimized for effective EMI suppression.
The leakage current is rated at 13.6mA, ensuring safety during operation while minimizing power loss.
The power loss during normal operation is rated at 37.9W, which is important for energy efficiency considerations.
This filter is part of the FMBD NEO series, which is known for its robust EMI suppression capabilities.
It supports 3 phase power systems, making it suitable for various industrial and commercial applications.
The resistance value of this model is 370Ω, which is relevant for its performance in filtering applications.
This product is manufactured in Slovakia, ensuring adherence to quality standards in electronic components.
