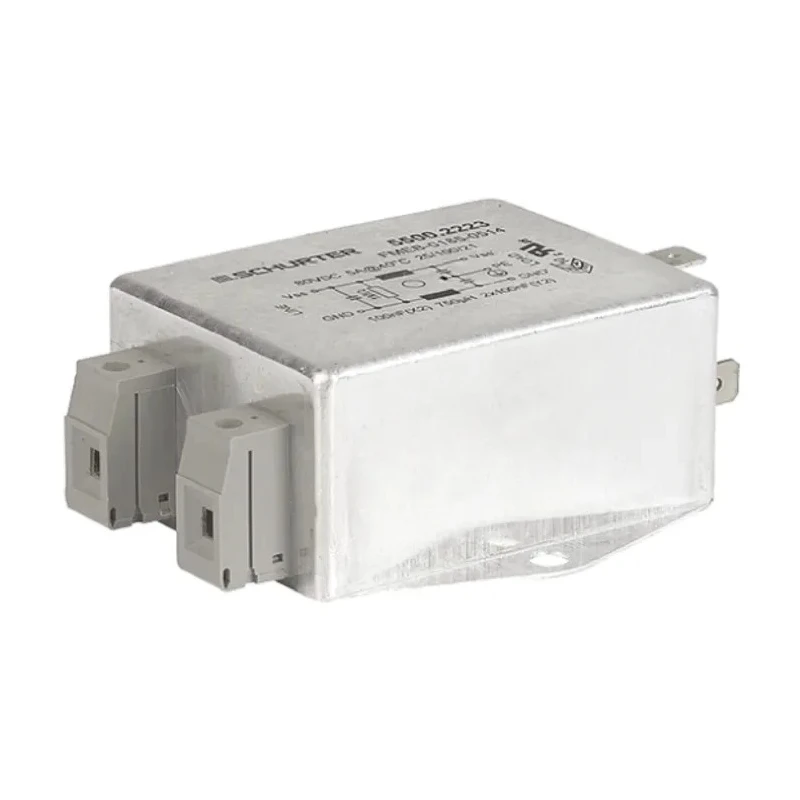

Schurter DC Chassis Mount EMC Filter 30A 80V dc Single Phase Screw Termination FMEB Series 5500.2228

Schurter 5500.2228 is a DC chassis mount EMC filter tailor-made for industrial and commercial electrical applications requiring electromagnetic interference (EMI) mitigation. This single-phase, single-stage filter is specifically designed for direct current environments, featuring a maximum current rating of 30 amperes and voltage rating of 80 volts DC.

The filter’s aluminium enclosure not only strengthens its robustness but also ensures protection from environmental and mechanical stresses common in industrial settings. Its chassis mount design with screw termination style facilitates secure and reliable installation into electrical panels and control systems.

This EMC filter is highly effective in damping both symmetrical and asymmetrical interferences, particularly within the frequency range of 100 kHz to 30 MHz, which is critical for maintaining signal integrity in sensitive electronic equipment. It is compliant with IEC/EN 60950 standards, attesting to its suitability for use in professional electronic devices and systems.

Compact form factor with length of 88 mm, height of 43 mm, and depth of 71 mm allows integration into constrained spaces without compromising performance. Operating temperature range from -25°C to 100°C makes it adaptable across diverse ambient conditions encountered in industrial, laboratory, manufacturing, and energy sectors.

The filter exhibits minimal resistance of 1 milliohm ensuring low power loss and improved system efficiency. The capacitance of 100 nanofarads and inductance of 2 millihenries enhance its performance characteristics in EMI suppression.

The chassis mount design allows for secure installation and reliable performance. Features screw type termination for firm electrical connections. Operates effectively up to 80V DC voltage rating. Aluminium case provides durable housing optimized for DC environments.

Effective against symmetrical and asymmetrical interference from 100 kHz to 30 MHz frequencies. Designed for compliance with IEC/EN 60950 standards. Compact dimensions of 88 mm length, 43 mm height, and 71 mm depth for space-saving mounts.

Operates reliably within temperature ranges of -25°C to 100°C. Low resistance value of 1 mΩ ensures minimal power loss.

This Schurter FMEB Series EMC filter is ideal for industrial automation, power supply filtering, electronic equipment protection, and HVAC systems where DC noise suppression is critical. Browse the Electronics Components category at EnvMart for related EMC filters and power line filter options.
