Schurter FMBB Series 12A 250V AC Screw Mount Single Phase 2-Stage RFI Filter 5500.2069

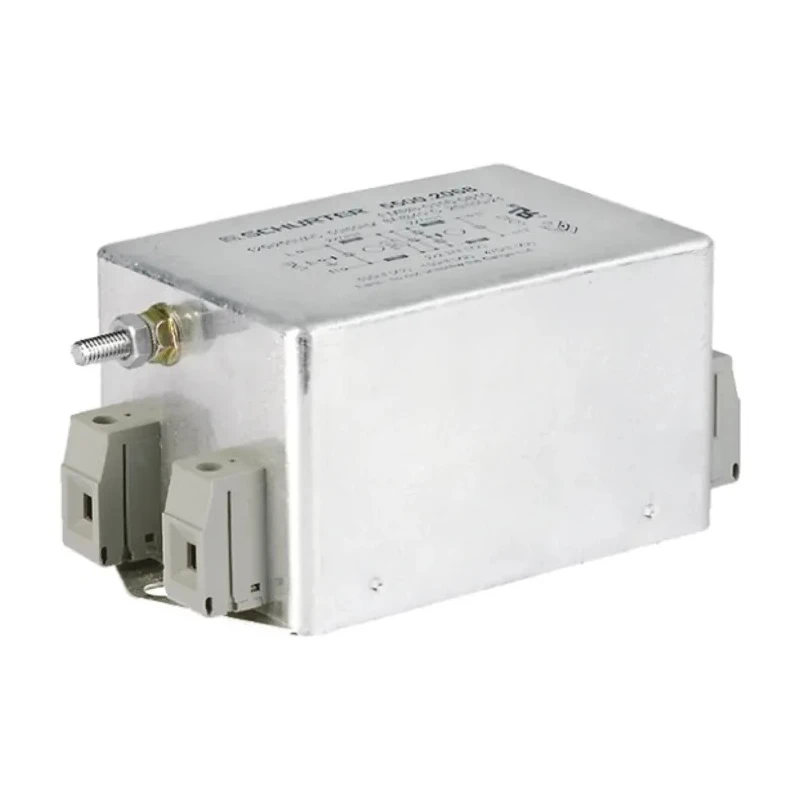

Name: Schurter FMBB Series 12A 250V AC Screw Mount Single Phase 2-Stage RFI Filter 5500.2069
Brand: Schurter
SKU: 409722
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Schurter Condition New

Specifications

Country of Origin	India
Brand	Schurter
Height	58mm
Length	137mm
Depth	106mm
Mount Type	Screw
Operating Frequency	50, 60Hz
Series	FMBB
Maximum Operating Temperature	100°C
Number Of Stages	2
Resistance	500kΩ
Capacitance	2.2μF
Minimum Operating Temperature	-25°C
Maximum Current	12A
Number of Phases	1
Leakage Current	3.5mA
Maximum Voltage	250V ac
Inductance	2mH
Termination Style	Screw

Key Features

This filter features a two-stage broadband attenuation design for effective interference suppression.
It is specifically engineered for high current applications including frequency converters and UPS systems.
The metal chassis housing provides durability and electrical shielding.
Effective against symmetrical and asymmetrical interferences from 10kHz up to 30MHz frequency range.
Capacitance of 2.2μF and inductance of 2mH provide excellent filtering characteristics.
Operates reliably between -25°C and 100°C operating temperatures.
Designed with screw termination style for secure connections.
Leakage current of 3.5mA ensures safety compliance.

Product Description

Schurter 5500.2069 is an FMBB Series AC RFI filter designed for robust performance in industrial electronic applications. This screw mount filter is tailored for single phase systems with a current rating of 12A and maximum voltage of 250V AC, suitable for operation at both 50Hz and 60Hz frequencies.

The chassis mount design incorporates a two-stage broadband attenuation system encased in a durable metal housing, making it ideal for high current environments such as frequency converters and UPS systems. This design effectively suppresses both symmetrical and asymmetrical interference signals between 10kHz and 30MHz, thereby enhancing the electromagnetic compatibility (EMC) of sensitive electronic equipment.

Featuring a capacitance of 2.2μF and inductance of 2mH, the filter balances performance and reliability. Its screw termination style ensures secure and stable wiring connections, minimizing the risk of loose contacts. The filter operates efficiently within a broad temperature range from -25°C up to 100°C, offering durability in diverse industrial conditions.

Leakage current is maintained at a low 3.5mA, making it suitable for safety-critical applications. Physical dimensions measure 137mm in length, 106mm in depth, and 58mm in height, delivering a compact form factor that integrates easily into control panels and equipment housings.

Resistance is rated at 500kΩ, providing excellent noise attenuation without compromising the electrical performance of the connected systems. This filter is qualified for use according to IEC/EN 60950 standards, supporting compliance in electronic device manufacturing.

This filter is designed for industrial, commercial, and laboratory use where electromagnetic interference reduction is critical. It is commonly applied in power management systems, automation controls, and power line filtering solutions.

Suitable for enhancing system reliability in manufacturing plants and electronic equipment installation. Ensure your equipment maintains optimal performance with the Schurter FMBB series RFI filter, model 5500.2069, a trusted solution for high current noise suppression.
