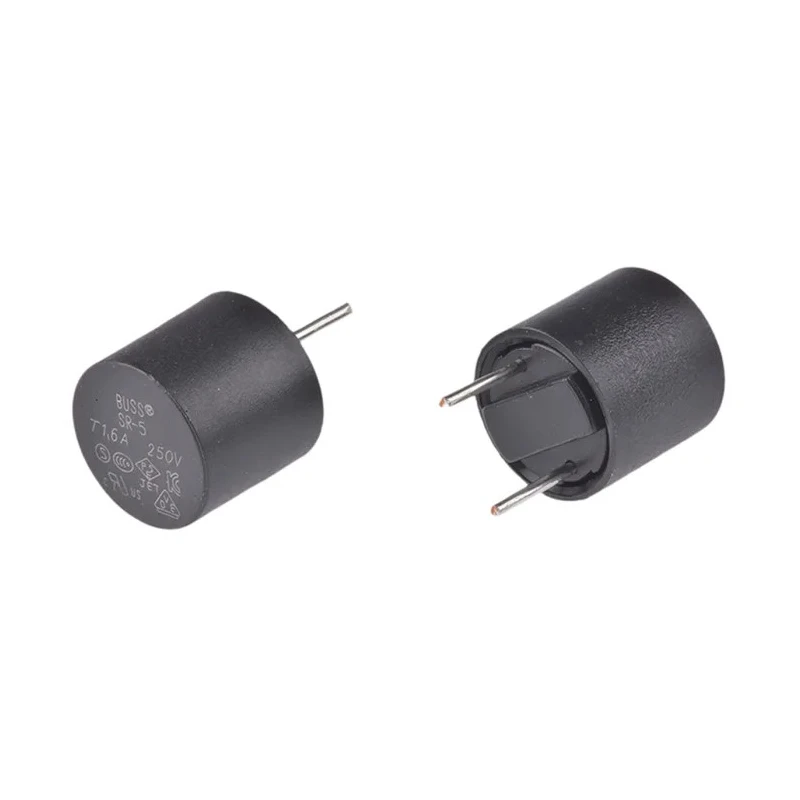

Eaton Non-Resettable Fuse Radial 1.6A 250V AC Time Delay Subminiature SR-5-1-6A-BK
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 8.5mm |
| Brand | Eaton |
| Height | 7.6mm |
| Length | 7.37mm |
| Model | SR-5-1-6A-BK |
| Width | 8.5mm |
| Current Rating | 1.6A |
| Series | SR5 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Lead Length | 4.3mm |
| Breaking Capacity | 35A |
| Lead Diameter | 1mm |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Radial |
Key Features
- Current rating is 1.6 amperes for precise circuit protection.
- Radial lead orientation ensures easy PCB mounting and soldering.
- Time delay characteristic for high inrush current tolerance.
- Operating temperature range from -40°C to 85°C supports harsh environments.
- Fuse body made from thermoplastic polyamide for heat resistance up to 260°C.
- Compact dimensions with 7.37mm length and 8.5mm diameter accommodate tight PCB layouts.
- Breaking capacity of 35 amperes ensures reliable interrupt capability.
- Complies with international standards IEC 60068-2-20, IEC 60127-3, VDE, RoHS, and PSE.
Product Description
Eaton SR-5-1-6A-BK non-resettable radial fuse is a high-quality PCB fuse solution with time delay (T) characteristic that allows it to withstand high inrush currents typically found in electronic circuits. Rated at 1.6A and 250V AC, this fuse is ideal for overcurrent protection in a wide range of electronic applications including PCBs and industrial electronic assemblies.
The fuse features a radial lead orientation with a 1mm lead diameter and 4.3mm lead length, designed to fit easily into printed circuit boards. Its compact fuse body measures 7.37mm in length, 8.5mm in diameter, and 7.6mm in height, made from thermoplastic polyamide material capable of withstanding soldering heat up to 260°C.
Operating temperature ranges between -40°C and 85°C, ensuring reliability in harsh environmental conditions. The fuse supports a breaking capacity of 35A, ensuring safe interruption of fault currents up to this level. Eaton's SR5 series fuse is internationally recognized and complies with IEC 60068-2-20, IEC 60127-3, VDE, RoHS, and PSE standards.
This fuse provides primary and secondary overcurrent protection suitable for industrial, laboratory, manufacturing, HVAC, and electronic sectors. Eaton, formerly known as Bussmann, maintains high product standards for safety and performance.
Current rating of 1.6A for precise circuit protection. Rated voltage of 250VAC compatible with standard systems. Compact radial lead design for easy PCB implementation. Time delay characteristic to handle inrush currents effectively.
Wide operating temperature range from -40°C to 85°C. Thermoplastic polyamide body withstands high soldering temperatures. Breaking capacity of 35A for reliable fault interruption. Compliance with multiple international safety standards.
Compact dimensions suitable for space-restricted applications. Manufactured in China with Eaton brand quality assurance.
Explore the complete range of Eaton Non-Resettable Fuses and circuit protection devices available on EnvMart to find tailored solutions for your electronic and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this fuse is 1.6 amperes, providing precise circuit protection.
It is rated for 250V AC, making it compatible with standard AC systems.
The breaking capacity is 35 amperes, ensuring reliable interruption of fault currents.
This fuse has a length of 7.37mm, a diameter of 8.5mm, and a height of 7.6mm.
The operating temperature range is from -40°C to 85°C, suitable for harsh environments.
It features a radial lead orientation, which facilitates easy PCB mounting and soldering.
The lead diameter is 1mm, and the lead length is 4.3mm.
The fuse body is made from thermoplastic polyamide, which can withstand soldering heat up to 260°C.
This fuse has a time delay characteristic, allowing it to handle high inrush currents effectively.
It complies with IEC 60068-2-20, IEC 60127-3, VDE, RoHS, and PSE standards.
It is suitable for overcurrent protection in electronic applications, including PCBs and industrial electronic assemblies.
This fuse is manufactured in China, ensuring quality assurance from Eaton.
