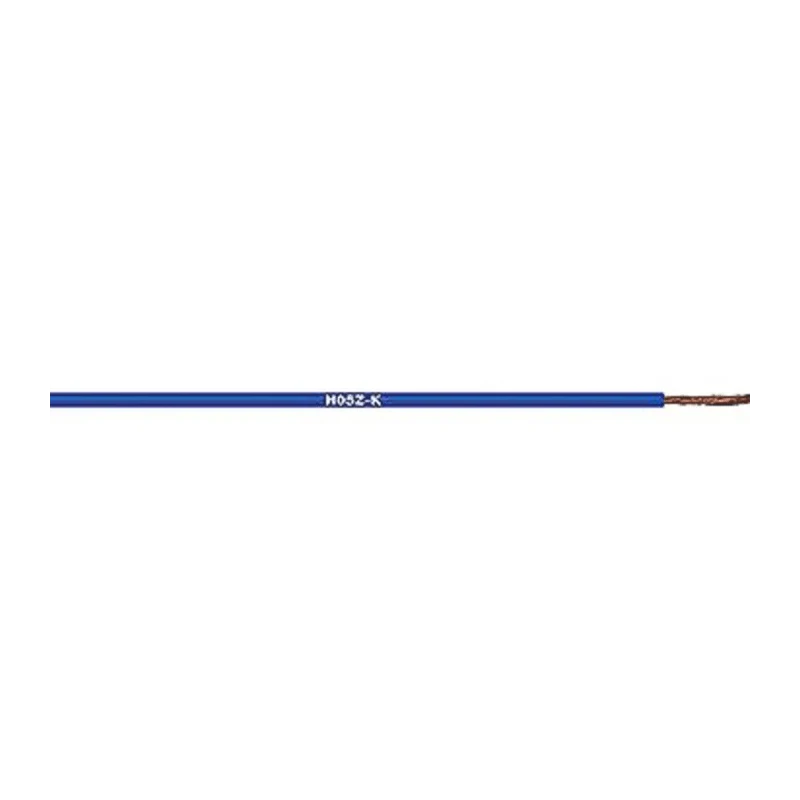

Lapp H05Z-K Series Dark Blue 0.75 mm² Hook Up Wire 100 m Low Smoke Zero Halogen (LSZH) Cross Linked 4725142

Lapp 4725142 Hook Up Wire features a 0.75 mm² cross sectional area and dark blue LSZH cross linked insulation designed for electrical internal wiring applications. The cable length of 100 meters on a reel provides flexibility to cover long runs or be cut to custom lengths.

Its harmonised H05Z-K series rating ensures compliance with international standards, making it ideal for installations requiring enhanced electrical and fire safety.

The Low Smoke Zero Halogen (LSZH) insulation minimizes hazardous smoke and toxic emissions during fire incidents, suitable for sensitive environments like underground railway, ships, power plants, and nuclear facilities. This makes it a preferred choice where personnel safety and minimal equipment damage are critical.

The cable is flame retardant according to IEC 60332-1-2 and meets smoke density and halogen-free requirements per IEC 61034 and IEC 60754-1 respectively. It can operate safely between -40°C and +90°C, providing durability under demanding temperature conditions.

This H05Z-K single core dark blue hook up wire is commonly installed inside conduits, sealed trunking, control cabinets, switchgear, and distribution boxes, especially in dry rooms. Its compliance with harmonised European standards enables widespread application across electrical installations.

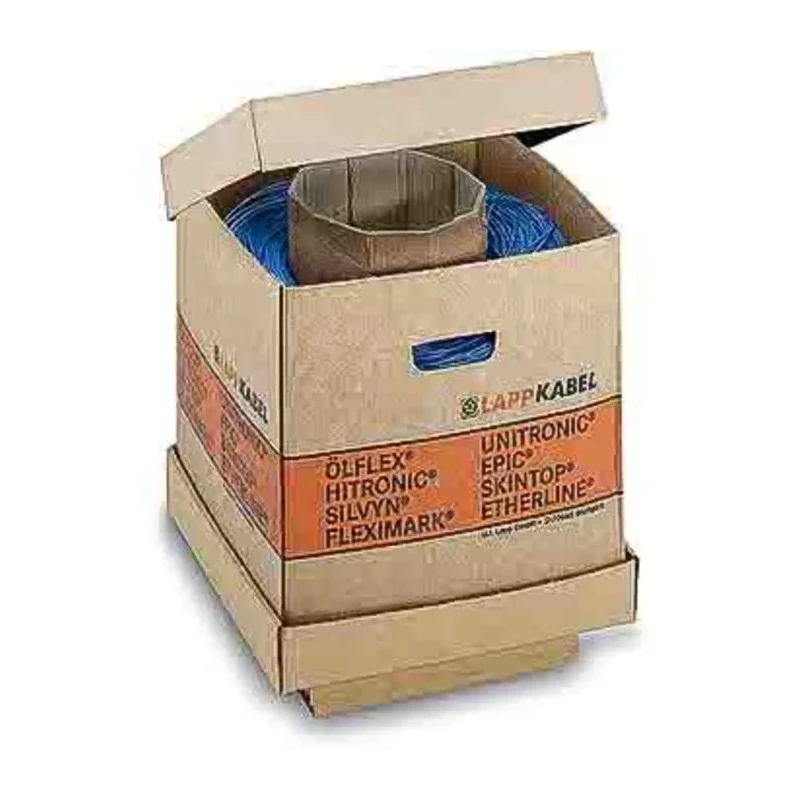

The cable cross sectional area is 0.75 mm², suitable for low current wiring. Jacket colour is dark blue for easy identification. Cable length is 100 meters, provided on a reel for versatile usage. Outside diameter measures 2.8 mm allowing compact installation.

Operating voltage rated for 300 and 500 volts. Maximum operating temperature is 90°C for reliable performance in various environments. The conductor is made of bare stranded copper to ensure high conductivity. Minimum operating temperature is -40°C, supporting use in cold conditions.

Jacket material is Low Smoke Zero Halogen (LSZH) cross linked insulation, enhancing fire safety. The cable is flame retardant as per IEC 60332-1-2 and halogen free according to IEC 60754-1 standards.

Select Lapp H05Z-K Hook Up Wire for your electrical internal wiring requirements where safety, compliance, and performance are essential. Explore more electrical wires and cables in this category on EnvMart.
