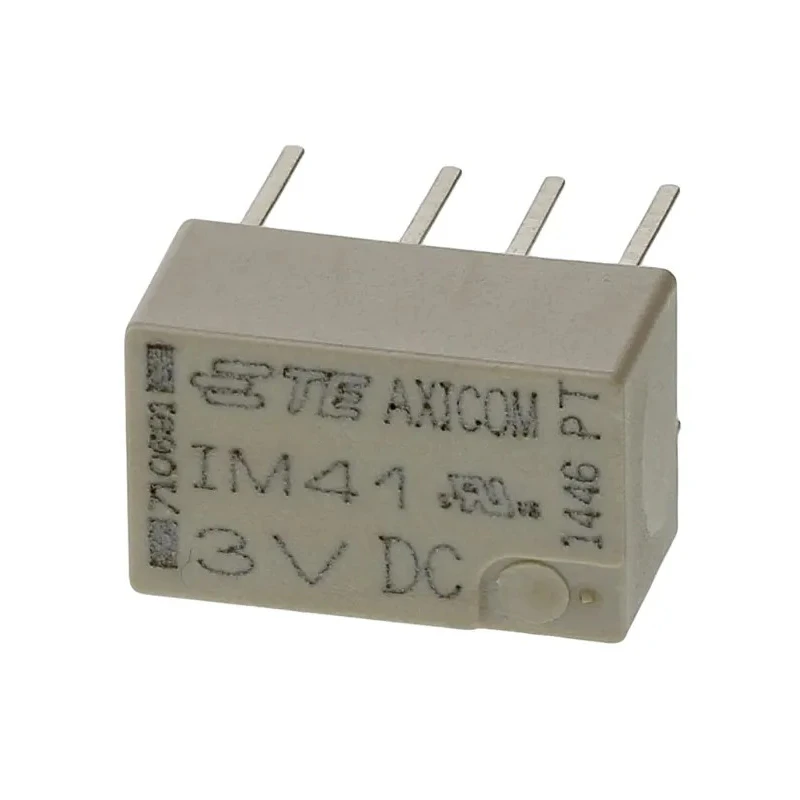

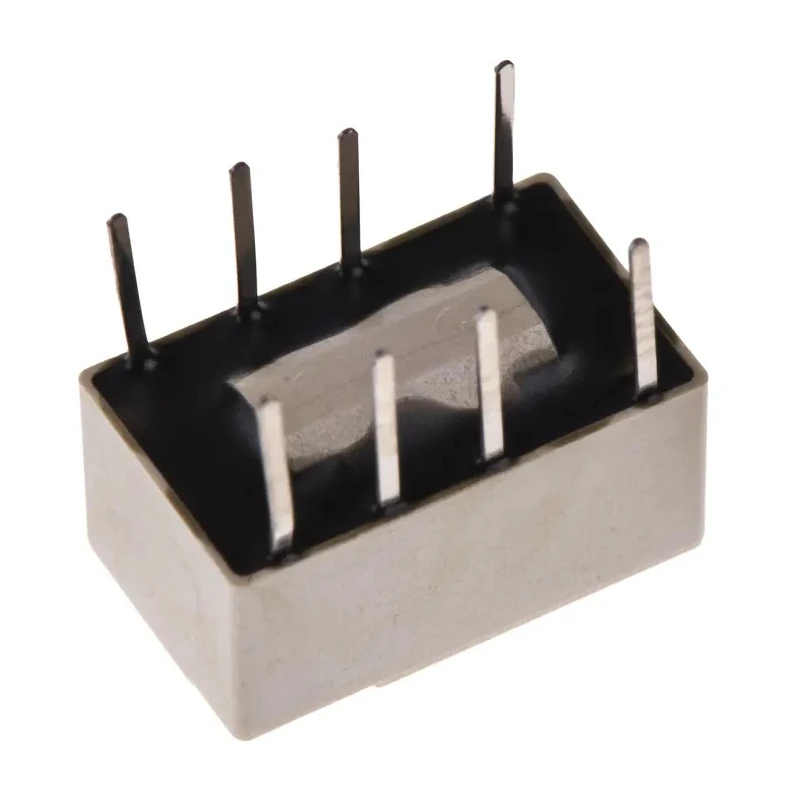

TE Connectivity PCB Signal Relay 3V dc Coil 2A DPDT 5-1462037-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | Axicom |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Coil Resistance | 90Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 100mW |
| Switching Power | 60W |
| TE Connectivity PCB Signal Relay, 3V dc Coil, 2A, DPDTBrand | TE Connectivity |
| Aratas PCB Signal Relay, 3V dc Coil, 1A, DPDTBrand | Omron |
Key Features
- Compact slimline design with a low profile of 5.65 mm for space-saving PCB integration.
- DPDT contact configuration provides double pole double throw switching action.
- Coil voltage of 3V dc with low coil power consumption of 100 mW enhances energy efficiency.
- Switches currents up to 2A with AC voltage rating of 250V ac and DC voltage rating of 220V dc.
- Gold plated bifurcated contacts ensure high reliability and low contact resistance.
- Hermetically sealed construction with IP67 rating for protection against dust and moisture.
- Wide operating temperature range from -40°C to 85°C suitable for harsh environments.
- High mechanical shock resistance up to 300G functional and 500G survival.
Product Description
TE Connectivity 5-1462037-3 PCB Signal Relay features a 3V dc coil and supports a switching current of 2A with DPDT contact configuration, expertly designed for compact PCB mounting in various industrial and commercial electronics.
This relay belongs to the Axicom IM series, notable for its slimline and low profile of 5.65 mm height and footprint of 60 mm², enabling efficient space utilization on circuit boards.
It offers a reliable gold plated bifurcated contact system that provides enhanced conductivity and corrosion resistance. The relay coil consumes only 100 mW of power, ensuring low energy usage while providing robust switching performance.
Designed for harsh environmental conditions, the relay is hermetically sealed achieving an IP67 rating, protecting against dust and moisture ingress. It withstands mechanical shocks up to 300G during operation and 500G for survival, ensuring durability in rough industrial settings.
The relay supports switching AC voltage up to 250V and DC voltage to 220V, with a switching power rating of 60W. It offers exceptional insulation resistance over 10⁹Ω at 500V dc, and high dielectric surge capability in compliance with Telcordia GR 1089, FCC Part 68, and ITU-T standards, guaranteeing reliable performance in sensitive signal applications.
Applications include telecommunication equipment, optical network terminals, office electronics, test and measurement devices, medical equipment, and automotive systems. Compact slimline PCB mount design with 5.65 mm height.
DPDT contact configuration for dual pole double throw operations. Low coil power at 100 mW for energy efficient use. Gold plated, bifurcated contact material for excellent reliability. Hermetically sealed with IP67 protection rating.
High mechanical shock tolerance up to 300G functional. Wide operating temperature range from -40°C to 85°C. High dielectric surge capability compliant with telecom and FCC standards. Switching power rating of 60W supports diverse applications.
Suitable for telecommunications, medical, automotive, and office equipment. Explore the Electronics & Electricals category on EnvMart for more relays and signal conditioning products to suit your industrial and commercial project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a height of 5.65 mm, making it suitable for compact PCB integration.
It supports a switching current of up to 2A, allowing for versatile applications in various electronic systems.
The relay can switch AC voltage up to 250V and DC voltage up to 220V, making it suitable for a range of applications.
It features a DPDT (Double Pole Double Throw) contact configuration, providing flexibility in switching operations.
The relay operates on a 3V dc coil with a low power consumption of 100 mW, enhancing energy efficiency.
It can operate in a wide temperature range from -40°C to 85°C, suitable for harsh environments.
This model is hermetically sealed with an IP67 rating, providing effective protection against dust and moisture ingress.
It has a mechanical shock resistance of up to 300G during operation and 500G for survival, ensuring durability in industrial settings.
The contacts are made of gold plated material, which ensures high reliability and low contact resistance.
It features a through hole terminal type, suitable for PCB mounting applications.
It offers exceptional insulation resistance over 10⁹Ω at 500V dc, ensuring reliable performance in sensitive applications.
It is suitable for telecommunications, medical equipment, automotive systems, and office electronics, among others.
