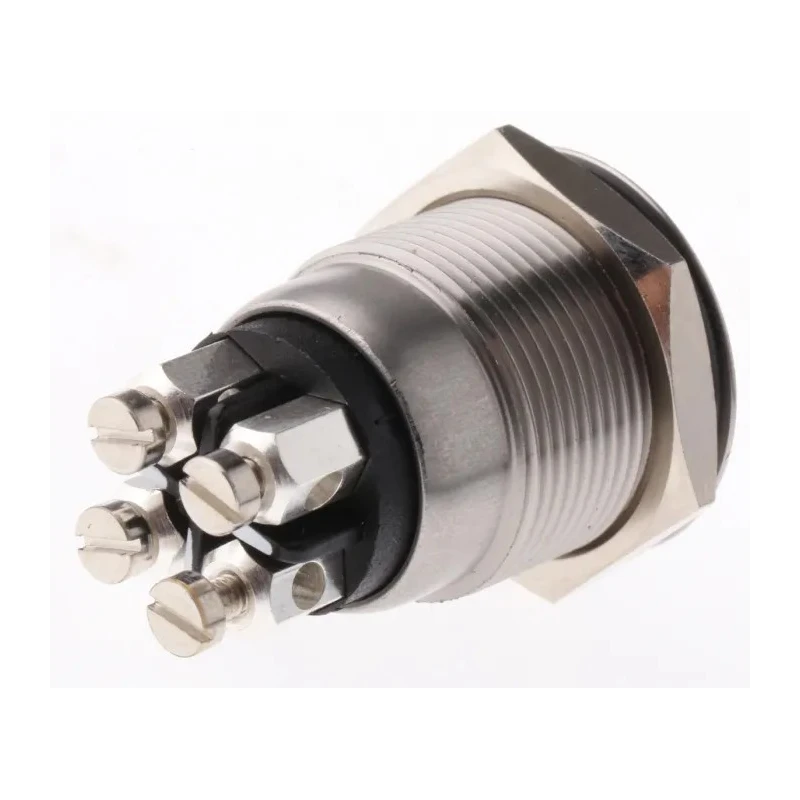

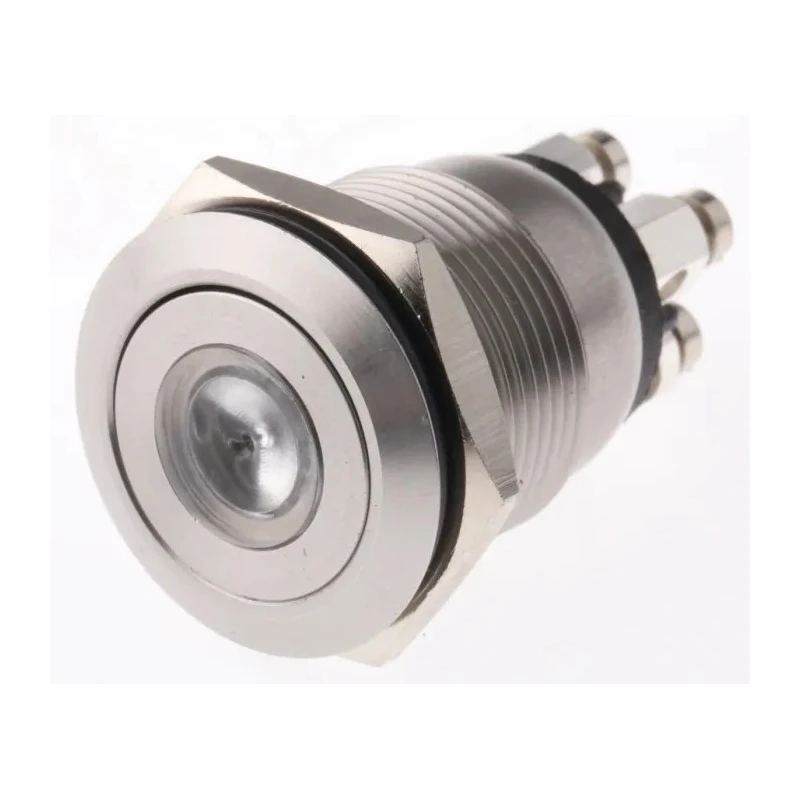

Bulgin Stainless Steel Vandal Resistant Illuminated Momentary Push Button Switch, Panel Mount, 19.2 mm Cutout, SPST MPI001
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | Bulgin |
| Model | MPI001 |
| IP Rating | IP66 |
| Mount Type | Panel |
| Series | MPI001 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| LED Colour | Red, Green |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 24V dc |
| Actuator Style | Button |
| Switch Contact Current | 50mA |
Key Features
- Features a vandal resistant stainless steel body and button for enhanced durability.
- Designed with dot or ring illumination via bright daylight red and green LEDs.
- Offers IP66 protection rating ensuring resistance to dust and water ingress.
- Suitable for DC contact voltage of 24 V with a switch contact current of 50 mA.
- Operates within a temperature range of -30°C to 70°C.
- Actuator style is a tactile push button with screw type terminals for secure connections.
- Compliant with RoHS standards for hazardous substance restriction.
- Capable of a minimum of 750,000 mechanical operations ensuring long service life.
Product Description
Bulgin MPI001 series illuminated momentary push button switch features a robust stainless steel vandal resistant actuator and body, ideal for industrial and commercial panel mounting applications. It requires a 19.2 mm cutout and offers SPST contact configuration suitable for switching applications with a 24 V DC contact voltage rating. The switch is designed with bright daylight red and green LEDs providing clear indication through dot or ring illumination. It achieves an IP66 ingress protection rating, ensuring suitability for harsh environments with exposure to dust and moisture.
The actuator style is a push button with a silver colour finish, featuring screw terminals for reliable wiring connections. It operates reliably in temperature ranges from -30°C to 70°C and meets RoHS compliance for environmentally safe operation. Designed for long service life, the switch offers a mechanical rating of at least 750,000 operations. Separate LED terminals allow for illumination voltage options of 6 Vdc, 12 Vdc, 24 Vdc, or user-chosen resistor configurations for customized lighting setups.
This push button switch is ideal for use in industrial automation, electrical control panels, machinery control stations, and other applications requiring durable, illuminated momentary switches with vandal resistance. Its rugged construction and IP66 rating also make it suitable for outdoor or demanding manufacturing environments requiring protected and visible control interfaces.
Vandal resistant stainless steel actuator and body ensure extended durability. Illumination provided by bright daylight red and green LEDs for clear status indication. IP66 rated for dust-tight and water jet protection compliance.
Panel mount with 19.2 mm cutout for straightforward installation. Momentary, push-to-make operation with single pole single throw (SPST) contacts. Screw terminals provide secure and stable electrical connections. Operating temperature range from -30°C to 70°C for versatile environmental applications.
Compliance with RoHS directs restricted hazardous substances in manufacturing. Mechanical durability rating of 750,000 minimum cycles for long life. Separate LED terminals for flexible illumination voltage configurations.
Explore the Push Button Switch range from Bulgin at EnvMart to find durable, reliable components for your electrical and industrial control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole single throw (SPST) contact configuration, suitable for various switching applications.
It operates reliably within a temperature range of -30°C to 70°C, making it versatile for different environmental conditions.
The switch requires a panel cutout size of 19.2 mm for installation.
It has an IP66 ingress protection rating, ensuring it is dust-tight and protected against water jets.
This switch is equipped with screw terminals, providing secure and stable electrical connections.
The Bulgin MPI001 switch is rated for a contact DC voltage of 24V.
It is rated for a minimum of 750,000 mechanical operations, ensuring a long service life.
This model features bright daylight red and green LEDs for illumination, providing clear status indication.
Yes, it complies with RoHS standards, which restrict hazardous substances in manufacturing.
The switch operates as a momentary push-to-make type, meaning it is activated only while pressed.
The country of origin for this switch is Tunisia.
The actuator style is a tactile push button, and it features a silver color finish.
