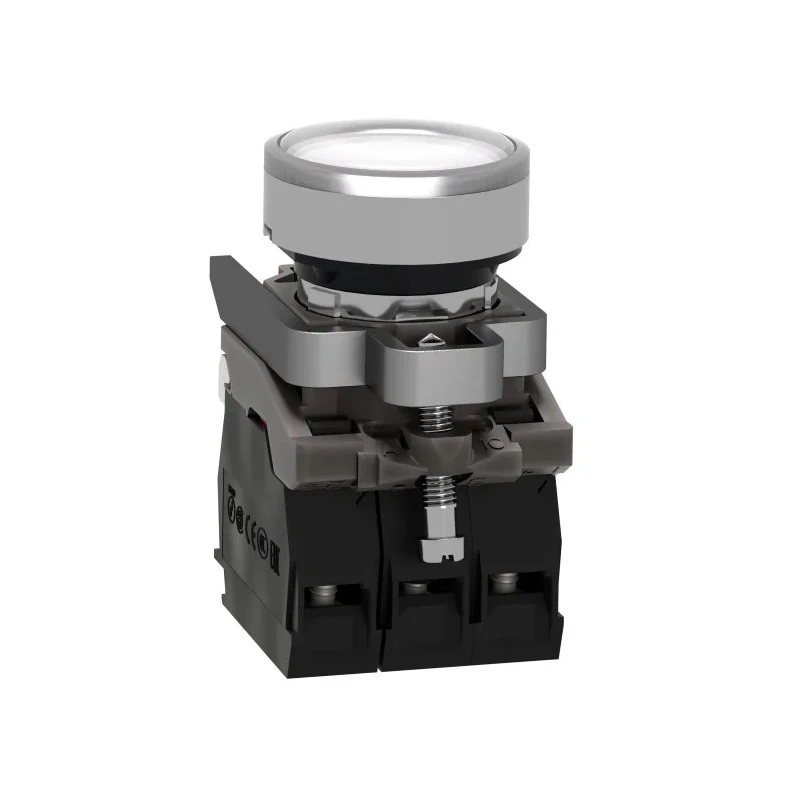

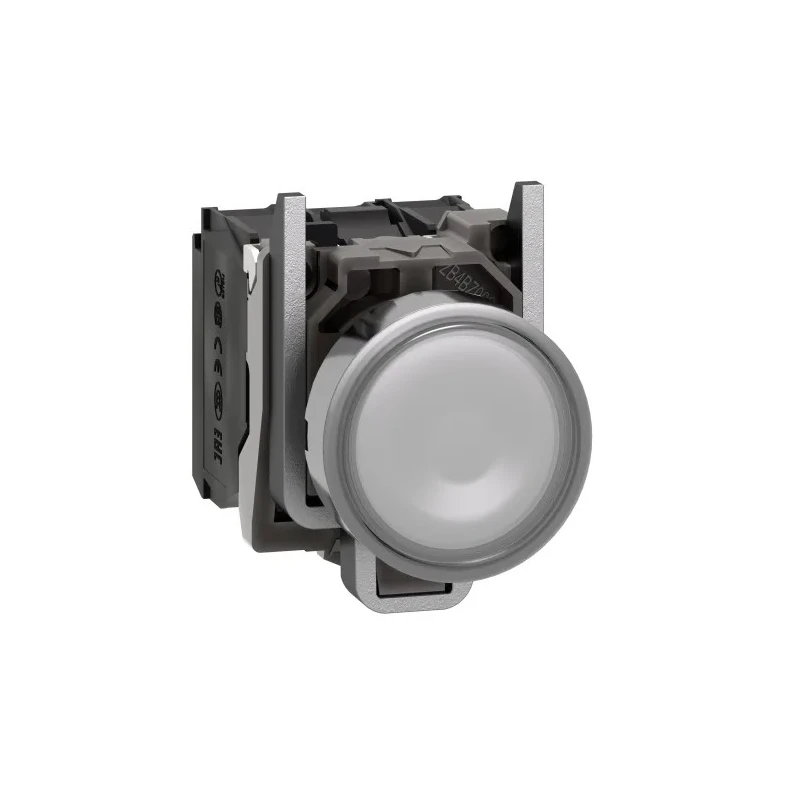

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB4BW31M5

Schneider Electric XB4BW31M5 Illuminated Push Button Switch is designed for industrial and commercial control applications, offering compact, dependable, and user-friendly performance.

This push button features a spring return switch operation, making it ideal for emergency stop and momentary control functions. The panel mount design requires a 22 mm cutout, suited for space-limited installations while maintaining ergonomic access.

The white, round actuator comes with a protected integral LED light source and a plain lens, ensuring clear visibility and operational status indication. The switch's SPDT contact configuration (1 NO/1 NC) with screw terminals provides secure electrical connections and flexibility in wiring layouts.

Robustness is ensured by a chromium-plated metal finish and a zamak-based fixing collar, offering resistance to oil, grease, and harsh industrial environments. High ingress protection ratings (IP66, IP67, IP69, IP69K) confirm excellent resistance against dust, water jets, steam cleaning, and high-pressure washers, making the switch suitable for critical and challenging settings such as automotive factories, warehouses, and automation control stations.

Electrical ratings include resistance to contact voltages up to 600V AC/DC and a switching current of 10A, supported by a short-circuit protection fuse compliant with EN/IEC standards. Vibration resistance to 5 gn per IEC 60068-2-6 adds further reliability in active industrial sites.

Dimensions are optimized for compact mounting: 47 mm height, 57 mm length, and 30 mm width, ideal for neatly integrated control panels. Applications include control stations, emergency stops, and automation systems in industrial, commercial, and automotive sectors.

Features spring return operation for quick and consistent button release. Panel mount design with 22 mm cutout diameter. SPDT contact configuration with screw terminal connection guarantees secure wiring. Durable round white actuator with integrated white LED illumination.

IP66, IP67, IP69, and IP69K rated for harsh environments. Wide operating temperature range from -25°C to 70°C. High mechanical durability with one million cycles guaranteed. Compliant with EN/IEC 60947 series, UL 508, CSA C22.2 No 14, and JIS C8201.

Compact dimensions for space-restricted panel installation. Suitable for industrial and commercial control applications. Explore more professional control components at EnvMart for your industrial automation and safety solutions.
