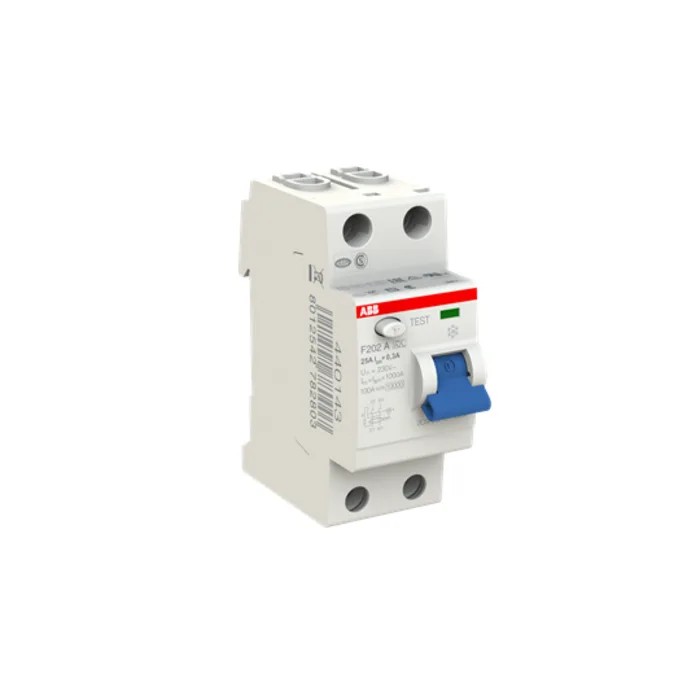

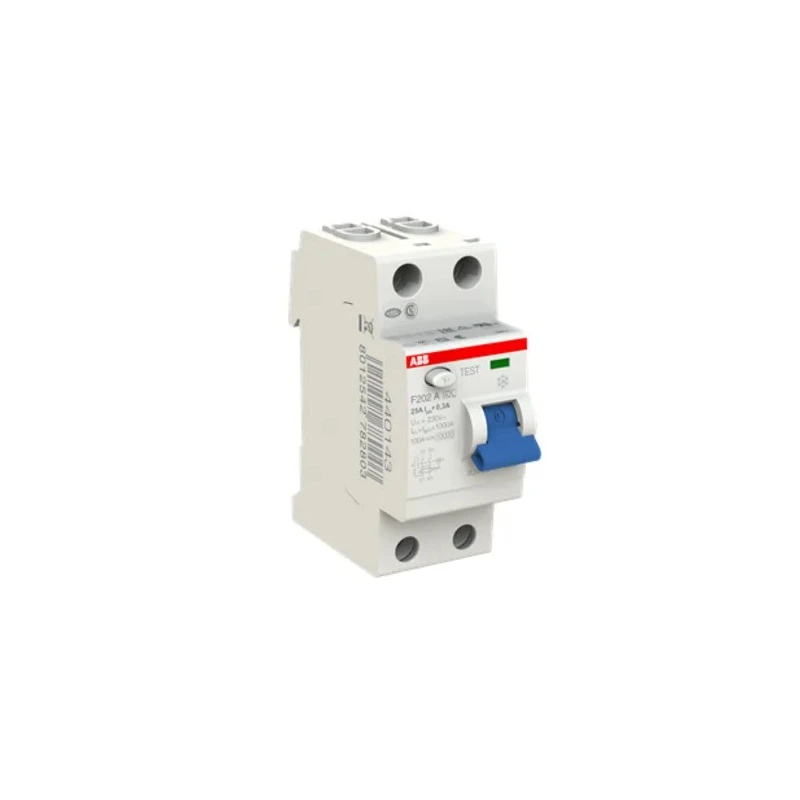

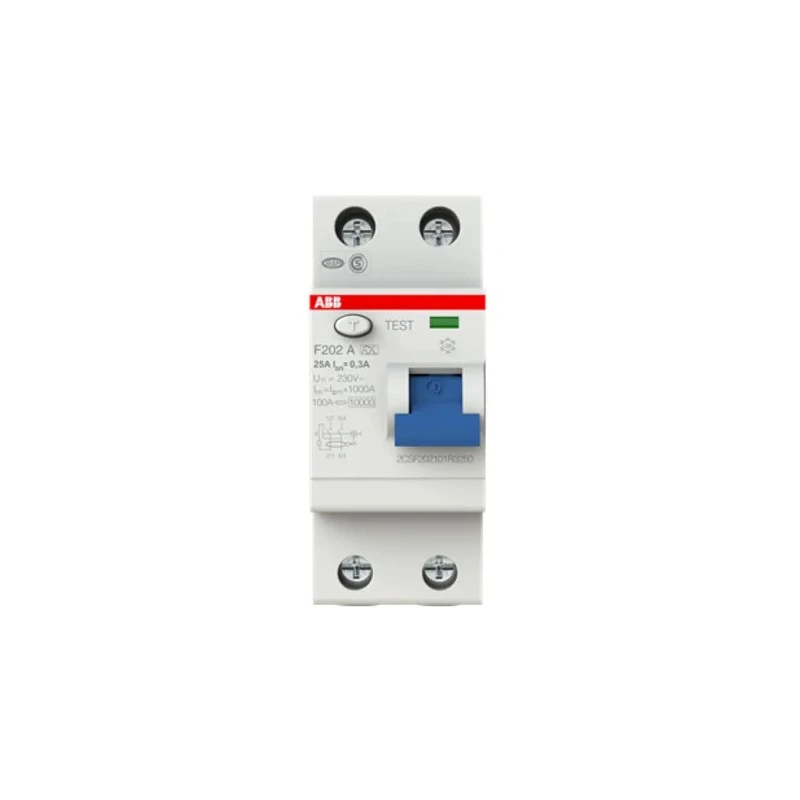

ABB F200 Series Residual Current Circuit Breaker 25A 2-Pole 300 mA Type A 1 kA 230V 2CSF202101R3250 - F202A-25/0.3

ABB 2CSF202101R3250 - F202A-25/0.3 Residual Current Circuit Breaker from the F200 Series is a high-performance device designed for safe and reliable earth leakage protection in industrial, commercial, and residential applications. With a current rating of 25A and a 2-pole configuration, this RCCB promptly interrupts circuits when detecting leakage currents to prevent electrical hazards.

The trip sensitivity of 300 mA coupled with Type A tripping characteristics enables detection of both AC and pulsed DC earth fault currents, providing enhanced protection for sensitive equipment and personnel. This breaker features instantaneous break time with a breaking capacity of 1 kA, ensuring rapid disconnection during fault conditions.

Compact dimensions of 35 mm (width), 85 mm (height), and 69 mm (depth) allow for installation in systems with limited panel space. It mounts securely on standard DIN rails using a screw terminal type for stable connections and easy maintenance. The reset actuator utilizes a lever design for quick manual reset after tripping events.

Certified to IEC/EN 61008 standards, this device meets rigorous international safety and performance requirements. The RCCB is suitable for use in diverse environments, including medical equipment setups, residential buildings, and food and beverage processing plants. Operating reliably across a broad ambient temperature range (typically -25°C to +55°C), it is engineered for durability and consistent performance with an electrical lifespan of 10,000 cycles.

Installation of ABB F200 Series Residual Current Circuit Breakers enhances workplace safety by detecting imbalance currents caused by insulation faults or leakage and disconnecting power before harm can occur. This product is ideal for industrial and laboratory electrical distribution boards, building automation systems, and safety-critical circuits requiring robust earth leakage protection.

Equipped with 300 mA trip sensitivity to detect earth leakage currents effectively. Type A tripping characteristic supports AC and pulsed DC earth fault current detection. Compact design measuring 35mm width, 85mm height, and 69mm depth.

Mounts easily on DIN rails for quick installation. Breaking capacity of 1 kA delivers dependable circuit interruption performance. Operating voltage rated at 230V AC for standard electrical systems. Reset actuator lever ensures straightforward manual resetting after trip.

Compliance with IEC/EN 61008 standards guarantees safety and quality. Manufactured in Germany to high industrial standards. Explore more premium circuit protection products from ABB to enhance electrical safety and reliability in your industrial, commercial, and residential installations.
