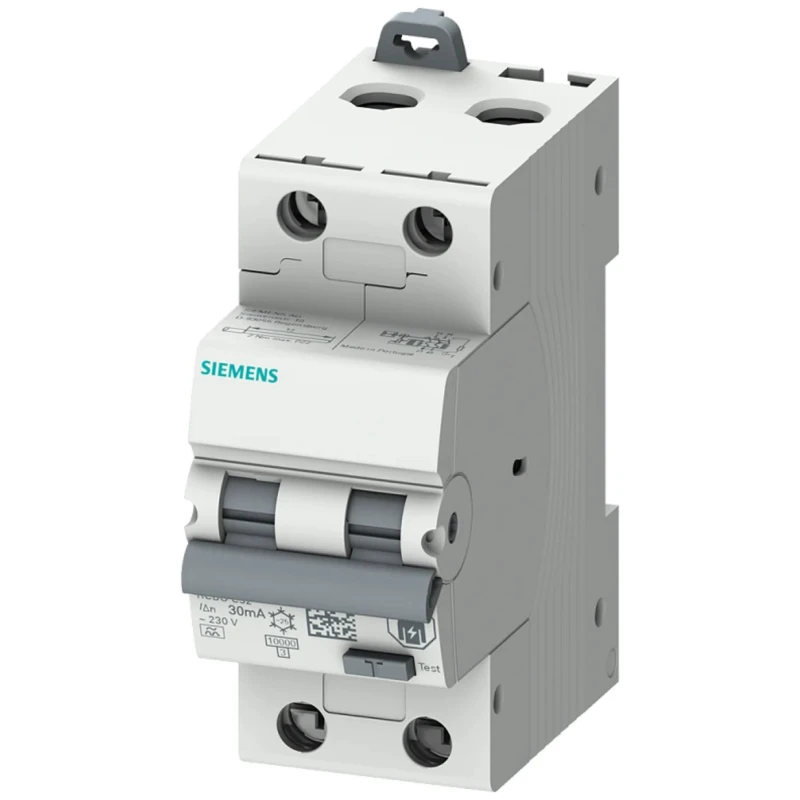

Siemens Residual Current Circuit Breaker with Overload Protection 20A 2-Pole 30mA Trip Sensitivity Type C 5SU1324-7FR20

Siemens 5SU1324-7FR20 Residual Current Circuit Breaker with Overload Protection is engineered for industrial, commercial, and residential electrical safety applications. This device provides reliable current interruption with a rating of 20 amperes and a residual current trip sensitivity of 30mA, ensuring sensitive earth fault detection.

Featuring a thermal magnetic tripping mechanism, the breaker combines overload and short circuit protection capabilities for enhanced electrical system safeguarding. It is designed for easy DIN rail mounting, enabling quick integration into distribution boards and electrical panels commonly found in construction, manufacturing, and HVAC installations.

Rated at 240V AC, this device is suitable for general-purpose circuit protection applications. The use of screw terminals ensures secure and stable wiring connections, minimizing the risk of loose contacts. Compact dimensions (53mm wide, 90mm high, 70mm deep) allow efficient utilization of panel space without compromising performance.

With a breaking capacity of 10kA, the breaker can safely interrupt high fault currents, protecting downstream equipment and wiring. The earth leakage protection is Type A, offering reliable protection against AC and pulsating DC residual currents, suitable for sensitive electrical environments.

This product is constructed with halogen-free and silicon-free materials, promoting environmental safety and reducing toxic emission risk in case of fire. It complies with several internationally recognized standards and approvals, including VDE, RoHS, EAC, CE, and CCC, reflecting its quality and safety compliance.

The reset actuator employs a lever type design facilitating straightforward manual reset post-tripping, aiding maintenance operations. Originating from Portugal, this new product contributes extended product life under the Siemens Better World claim, supporting sustainability initiatives.

Incorporates thermal magnetic tripping mechanism for enhanced overload and short-circuit protection. Designed for DIN rail mounting to facilitate secure installation in electrical panels. Rated for 240V AC operation, suitable for general purpose electrical circuits.

Equipped with screw terminal type for dependable electrical connections. Compact dimensions of 53mm width, 90mm height, and 70mm depth optimize panel space usage. Breaking capacity of 10kA ensures high fault current interruption capability.

Features Type A earth leakage protection providing sensitivity to AC and pulsating DC residual currents. Reset actuator type is lever, enabling easy manual reset after trip event. Complies with multiple international standards including VDE, RoHS, EAC, CE, and CCC.

Halogen-free and silicon-free construction supports safety and environmental considerations.

Suitable for industrial automation, electrical distribution, residential safety systems, and commercial electrical assemblies, this Siemens RCBO offers dependable protection and compliance. Browse complete Siemens circuit protection solutions at EnvMart for enhanced electrical safety and efficiency.
