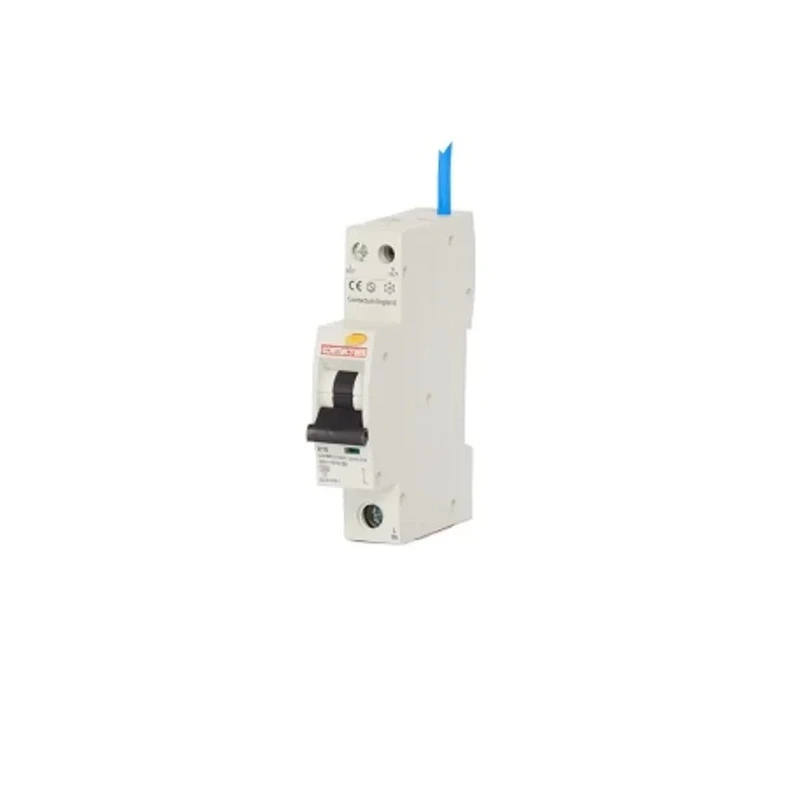

Contactum Residual Current Circuit Breaker with Overload Protection 10A Current Rating 1-Pole 30mA Trip CCPBR1010AC

Contactum CCPBR1010AC Residual Current Circuit Breaker with Overload Protection is engineered for industrial and commercial electrical safety applications requiring precise leakage and overload protection. This compact device has a 10 ampere current rating suited for single-pole AC wiring systems operating within 220-250V and 50-60Hz frequency ranges.

The device features a Type C tripping characteristic with thermal magnetic mechanism providing responsive fault protection against overloads and earth faults. Its DIN rail mounting method allows seamless integration into distribution boards and panel assemblies.

Measuring 90mm in height, 19mm in width, and 75mm in depth, the breaker occupies one modular width, facilitating efficient space utilization. The white enclosure houses a lever type reset actuator with screw terminal connections for secure electrical interfacing.

With a trip sensitivity of 30mA, the residual current circuit breaker offers reliable detection and interruption of leakage currents, meeting type A earth leakage standards. The product's breaking capacity of 10,000 amperes (10kA) ensures robust performance during fault conditions, mitigating electrical hazards.

Operational ambient temperature ranges between -5 to 40 degrees Celsius broaden application usability in varying environments. The inclusion of an ABC indicator rated A assists in device condition monitoring. It also complies with international standards such as CE, IEC, RoHS, and BS EN 61009, guaranteeing safety and quality.

Operates at rated AC voltage of 230V with frequency range 50-60Hz. Equipped with Type C tripping characteristic and thermal magnetic mechanism for overload protection. Compact DIN rail mountable design measuring 90mm height, 19mm width, and 75mm depth.

Provides earth leakage protection type A with lever reset actuator and screw terminals. Breaking capacity rated at 10kA ensures reliable fault disruption. Suitable for general-purpose electrical circuits with ambient operating temperatures from -5 to 40°C.

Compliant with standards including CE, IEC, RoHS, and BS EN 61009. White colour housing with ABC indicator rating A. Designed for 1 modular spacing width and minimum switch contact gap of 4mm.

This Contactum residual current circuit breaker is well-suited for industrial, commercial, and residential electrical protection, enhancing circuit system safety and compliance. Explore more products in the Residual Current Circuit Breaker category at EnvMart for reliable electrical installation components.
