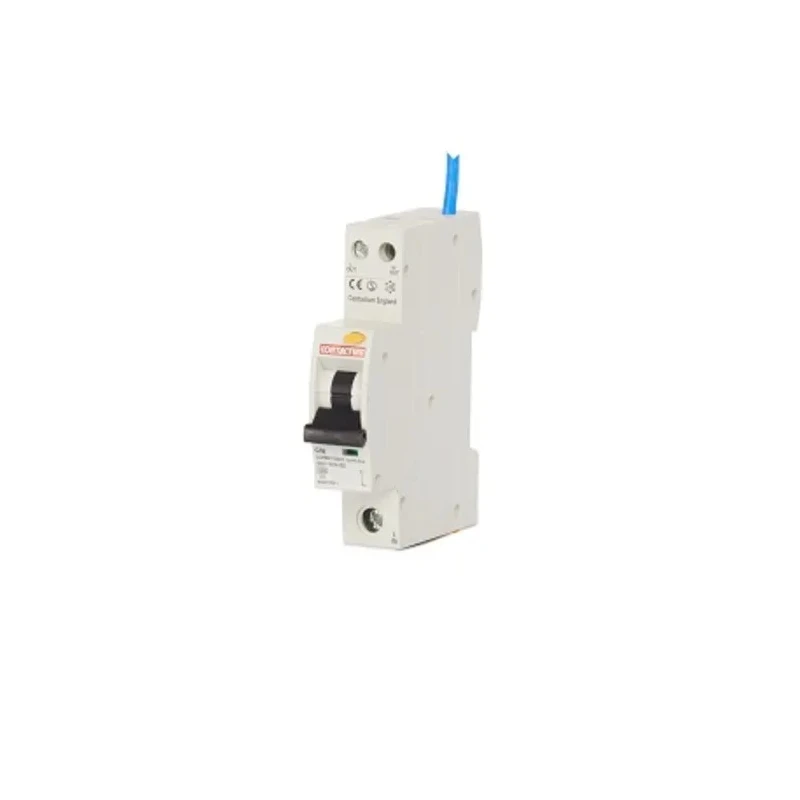

Contactum Residual Current Circuit Breaker with Overload Protection 32A Current Rating 1-Pole 30mA Trip CCPBR1032AC

Contactum CCPBR1032AC is a Residual Current Circuit Breaker with Overload Protection engineered for residential and commercial electrical systems. It features a 32A current rating and 1-pole wiring system with a trip sensitivity of 30mA to provide protection against earth leakage currents and overloads.

This device utilizes a thermal magnetic tripping mechanism for reliable operation and is mounted on a DIN rail, suitable for panel assembly. Its screw-type terminals ensure secure and easy wiring connections.

The compact dimensions of 90mm height, 75mm depth, and 19mm width allow for efficient space utilization in electrical enclosures. The breaker offers a high breaking capacity of 10kA to safely interrupt fault currents.

Operating under a voltage range of 220-250V AC at 50-60 Hz frequency, it is designed to operate within an ambient temperature of -5 to 40°C, ensuring consistent performance in typical indoor environments. The Class A earth leakage protection and Type C tripping characteristic enhance safety by detecting AC and pulsating DC residual currents.

Certified to meet CE, IEC, RoHS standards and complying with BS EN 61009, this circuit breaker meets industrial safety and quality standards. The white-colored housing includes an ABC indicator and a lever reset actuator for operational convenience.

Rated at 32 amperes current with thermal magnetic tripping mechanism. Class A earth leakage protection with 30mA trip sensitivity ensuring reliable safety. Designed for mounting on DIN rail with screw terminal type for secure wiring.

Compact dimensions allow for easy panel integration. Breaking capacity rated at 10 kA for safe fault interruption. Compliant with CE, IEC, and RoHS standards and BS EN 61009. Ambient operating temperature range from -5 to 40°C.

Type C tripping characteristic for general purpose use. Rated for 220-250V AC supply at 50-60Hz frequency. White color, lever reset actuator with ABC indicator.

This Residual Current Circuit Breaker is suitable for electrical distribution systems in industrial, residential, and commercial environments to protect circuits against over-current and earth leakage faults. It is an essential safety device for HVAC, manufacturing, building electrical panels, and water treatment applications.
