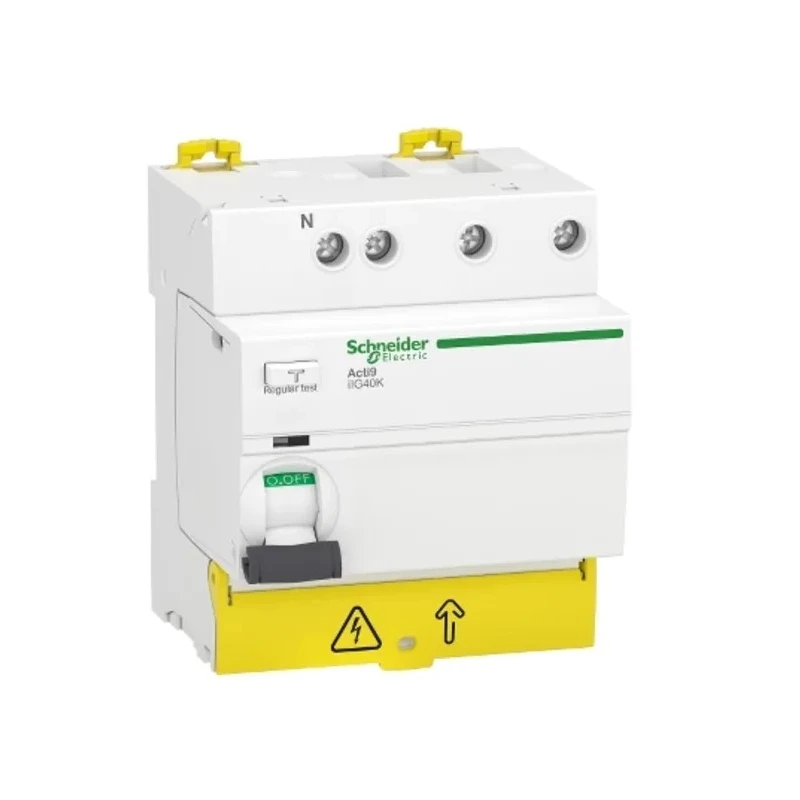

Schneider Electric Residual Current Circuit Breaker 25A 3+N-Pole 300 mA Type AC 500 A 230V AC Acti9 iIG40K Series A9R79725

Schneider Electric A9R79725 is a Residual Current Circuit Breaker (RCCB) from the Acti9 iIG40K Series designed for reliable earth-leakage protection in both industrial and residential electrical systems. It has a current rating of 25A with a 3+N pole configuration, trip sensitivity of 300 mA, and operates at 230V AC with a breaking capacity of 500 A. This device is specifically intended to detect and disconnect leakage currents instantly, ensuring enhanced electrical safety and protection against electric shocks.

The RCCB features a Type AC tripping characteristic and complies with international standards EN/IEC 61008-2-1, ensuring adherence to stringent safety and performance criteria. Its snap-on DIN rail mounting mechanism and screw terminals simplify installation and maintenance processes.

Dimensions are compact at 85mm height, 74mm depth, and 36mm width, making it suitable for integration into various electrical panels and distribution boards. The toggle switch reset actuator includes ON/OFF and trip status indicators for easy operation and monitoring.

This Schneider Electric RCCB is built to withstand harsh environments, supporting an operational ambient temperature range from -25 to 70 °C and an electrical durability of 20000 cycles. The device is padlockable, adding an extra layer of safety during maintenance and system upgrades.

With a high impulse withstand voltage of 4 kV and premium Schneider Green classification, this product ensures top-tier quality and environmental responsibility.

The product is made in Spain and designed to serve a wide spectrum of applications including industrial automation systems, residential safety installations, and commercial electrical infrastructure setups. Its robust construction and reliable performance make it essential for protecting circuits from earth-fault currents that can cause significant hazards.

Instantaneous earth-leakage protection at 300 mA sensitivity. Compact DIN rail mount design with reliable screw terminals. Toggle switch provides easy reset and trip indication. Complies with EN/IEC 61008-2-1 for electrical safety.

Durable build rated for 20000 mechanical cycles. Padlockable to ensure safety during maintenance. Suitable for harsh environments with wide temperature range operation. High breaking capacity of 500 A at 230V AC. Explore more Schneider Electric Residual Current Circuit Breakers and related electrical safety products on EnvMart for diverse industrial and residential requirements.
