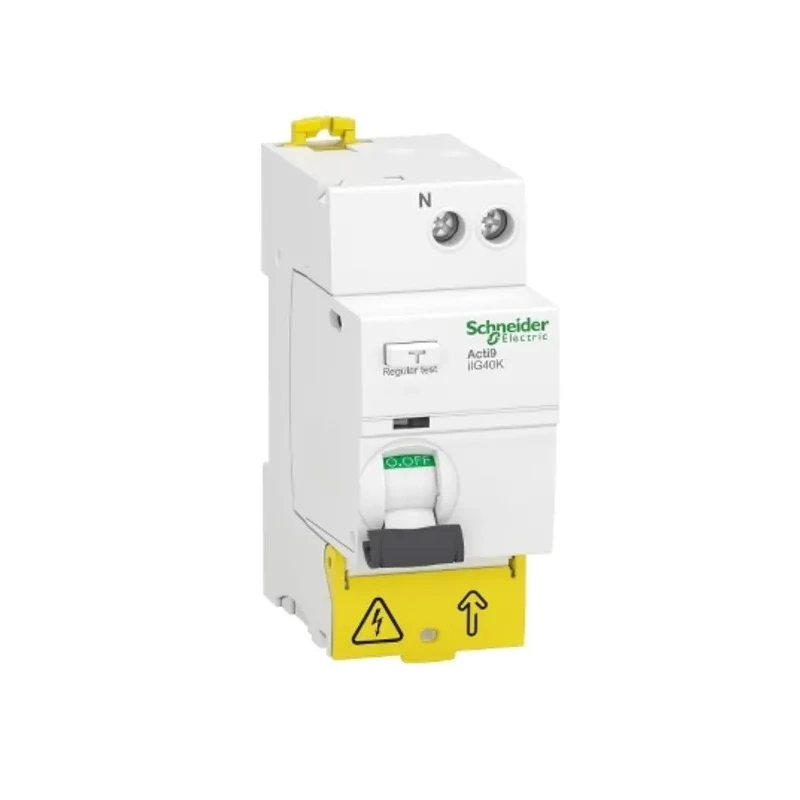

Schneider Electric Residual Current Circuit Breaker Acti9 iIG40K Series, 40A, 1-Pole, 30 mA, Type AC, 500A Breaking A9R69640

Schneider Electric A9R69640 Residual Current Circuit Breaker from the Acti9 iIG40K Series delivers dependable earth-leakage protection with a current rating of 40A, 1-pole configuration, and trip sensitivity of 30 mA, classified as Type AC. Operating at a rated AC voltage of 230V, this RCCB is designed for rapid fault detection with instantaneous break time, ensuring improved safety in industrial and residential electrical systems.

This circuit breaker features a compact form factor with dimensions of 85 mm height, 36 mm width, and 74 mm depth, suitable for DIN rail mounting. The screw terminal connection assures secure wiring, while the toggle switch with ON/OFF and trip indicator ensures straightforward user operation and visual status indication.

Designed to endure challenging environments, this device operates efficiently within an ambient air temperature range of -25 to 70°C and relative humidity up to 95% at 55°C. The impulse withstand voltage capability of 4 kV provides robust defense against voltage spikes, and the breaker supports an electrical durability of 20,000 cycles.

A padlockable mechanism adds an extra layer of security, preventing unintended operation or tampering. Certified to comply with EN/IEC 61008-2-1 standards, this Schneider Electric RCCB aligns with international safety and quality requirements. Part of the Schneider Green premium class, it reflects energy-efficient and environmentally conscious manufacturing standards.

Ideal for applications across industrial, residential, commercial, and automation domains, this RCCB serves to protect circuits from earth leakage faults, enhancing electrical safety and reliability in diverse settings.

Designed for mounting on DIN Rail with screw-type terminals. Breaking capacity rated at 500A ensures high fault current interruption. Complies with EN/IEC 61008-2-1 standards for safety and performance. Compact dimensions of 85mm height, 36mm width, and 74mm depth optimize panel space.

Toggle switch with ON/OFF and trip indicator for easy operation and indication. Suitable for industrial and residential electrical protection applications. Instantaneous break time and padlockable design enhance safety and operational reliability.

Operates reliably under relative humidity of 95% at 55°C and ambient temperature range -25°C to 70°C. Impulse withstand voltage rating of 4kV ensures resistance to voltage surges. Manufactured in Spain with Schneider Green premium classification.
