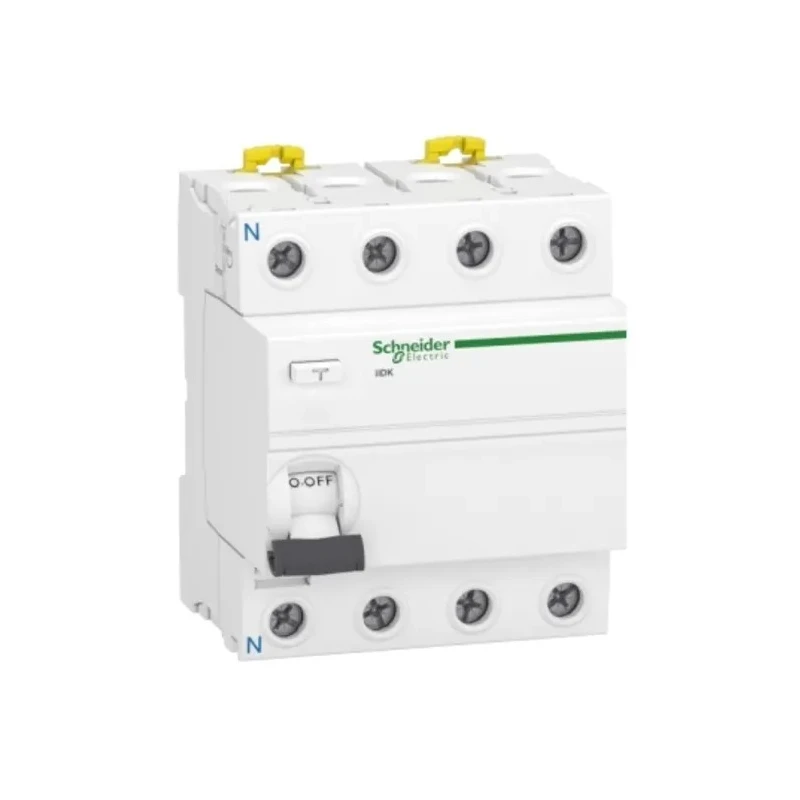

Schneider Electric iIDK Series Residual Current Circuit Breaker, 40A, 4-Pole, 30 mA Sensitivity, Type AC, 500A Acti9

Schneider Electric A9R55440 Acti9 iIDK Series Residual Current Circuit Breaker is engineered to provide advanced earth leakage protection in various industrial and residential settings. With a 40 ampere current rating and 4 poles, this circuit breaker complies with EN/IEC 61008-1 international standards, ensuring reliable performance and safety.

It features a trip sensitivity of 30 mA and operates at a rated AC voltage of 240V. The device uses a type AC tripping characteristic and provides instantaneous break time to protect circuits effectively.

The compact form factor with dimensions 85mm height, 36mm width, and 69mm depth allows easy installation on DIN rails in electrical panels. The screw-type terminals ensure secure wiring connections.

With a breaking capacity of 500 amperes and robust electrical durability of 20,000 cycles, this Residual Current Circuit Breaker supports high-performance requirements in demanding environments. Its toggle switch actuator permits easy resetting with ON/OFF and trip indicators for clear status monitoring.

The ambient air temperature operational range is from -25°C to 70°C, making the device suitable for diverse climate conditions. A padlockable feature provides additional safety by preventing unauthorized operation.

Manufactured in Spain, the unit assures high-quality standards and compliance with applicable electrical codes. Schneider Electric also classifies this product under the Green premium class, promoting sustainability and responsible manufacturing practices.

The robust impulse withstand voltage of 4 kV offers resilience against power surges, further enhancing circuit protection. Complies with EN/IEC 61008-1 standards ensuring safety. Compact DIN rail mountable design for easy installation.

Instantaneous break time with type AC tripping characteristics. Padlockable toggle switch actuator with ON/OFF and trip indicators. Rated at 240V AC with 40A current and 500A breaking capacity. Suitable for industrial and residential electrical protection.

Operating temperature range from -25°C to 70°C supports varied environments. Robust electrical durability of 20,000 cycles for long service life. Manufactured in Spain meeting high quality and Green premium standards.
