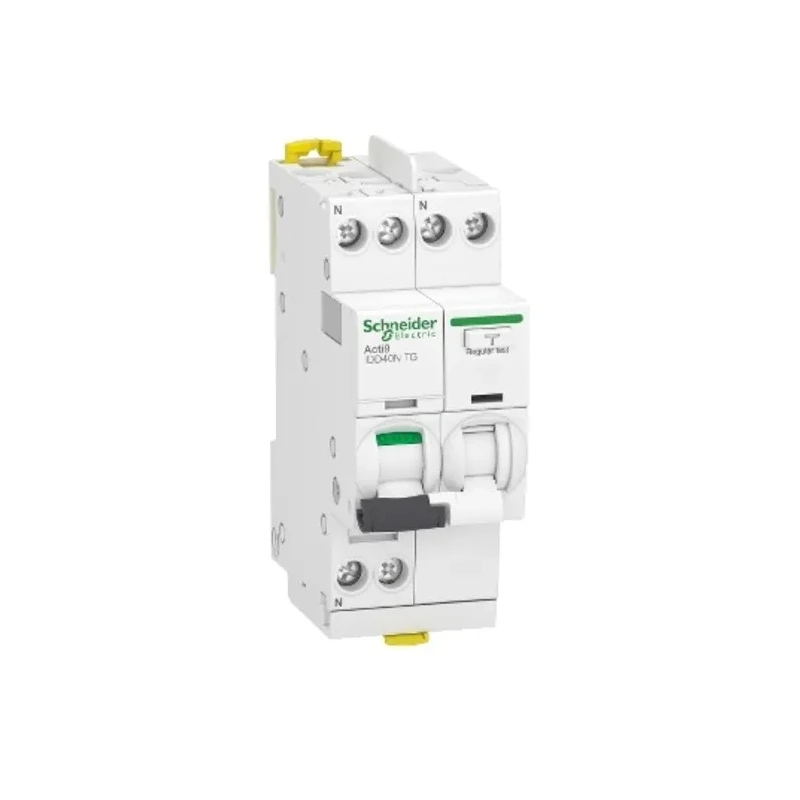

Schneider Electric Residual Current Circuit Breaker with Overload Protection 20A Current Rating 1-Pole 300 mA Trip A9DV7620

Schneider Electric A9DV7620 is a high-quality Residual Current Circuit Breaker with Overload Protection designed to safeguard electrical installations by detecting earth leakage currents and providing overload and short circuit protection. This device operates with a 20A current rating and features a single-pole configuration, making it suitable for residential and general distribution electrical systems.

The circuit breaker employs advanced thermal-magnetic tripping technology coupled with instantaneous earth-leakage protection ensuring reliable and prompt disconnection in case of electrical faults. It includes a user-friendly toggle switch reset actuator with clear ON/OFF and trip indicators for easy operation and fault detection.

Its compact dimensions of 93mm height, 36mm width, and 73mm depth allow it to fit comfortably on standard DIN rail mountings inside electrical panels, optimizing space. The device is rated for 400V AC applications and features a breaking capacity of 10kA, capable of withstanding high fault currents without damage.

The earth leakage protection type is AC, which effectively detects alternating current earth faults. The circuit breaker is compliant with important industry standards including EN/IEC 60947-2 and RoHS, ensuring high reliability and environmental safety.

Designed specifically for overcurrent protection and residual current detection, it is ideal for use in residential electrical installations and distribution circuits to mitigate electric shock risks and fire hazards.

Additional features include a 95% relative humidity rating at 55 °C, padlockable toggle switch for maintenance safety, and an impulse withstand voltage of 4 kV. The product is a Schneider Green premium class offering, reflecting commitment to sustainability.

This Schneider Electric model A9DV7620 is manufactured in France, ensuring stringent quality standards. Equipped with thermal-magnetic tripping mechanism for enhanced overload and short circuit protection. Rated AC voltage of 400V AC suitable for various electrical distribution systems.

Mounts easily on DIN rail for convenient installation in electrical panels. Toggle switch reset actuator with ON/OFF and trip indicator for user-friendly operation. Compact dimensions of 93mm height, 36mm width, and 73mm depth save panel space.

Breaking capacity of 10kA ensures robust protection against fault currents. Earth leakage protection type is AC, providing reliable residual current detection. Compliance with EN/IEC 60947-2 and RoHS standards ensures product quality and environmental safety.

Contains thermal-magnetic trip unit technology with instantaneous earth-leakage protection time delay. Designed for residential and distribution applications, offering excellent circuit protection. Explore more Schneider Electric electrical protection products in our Residual Current Circuit Breaker category at EnvMart for reliable and safe power distribution solutions.
