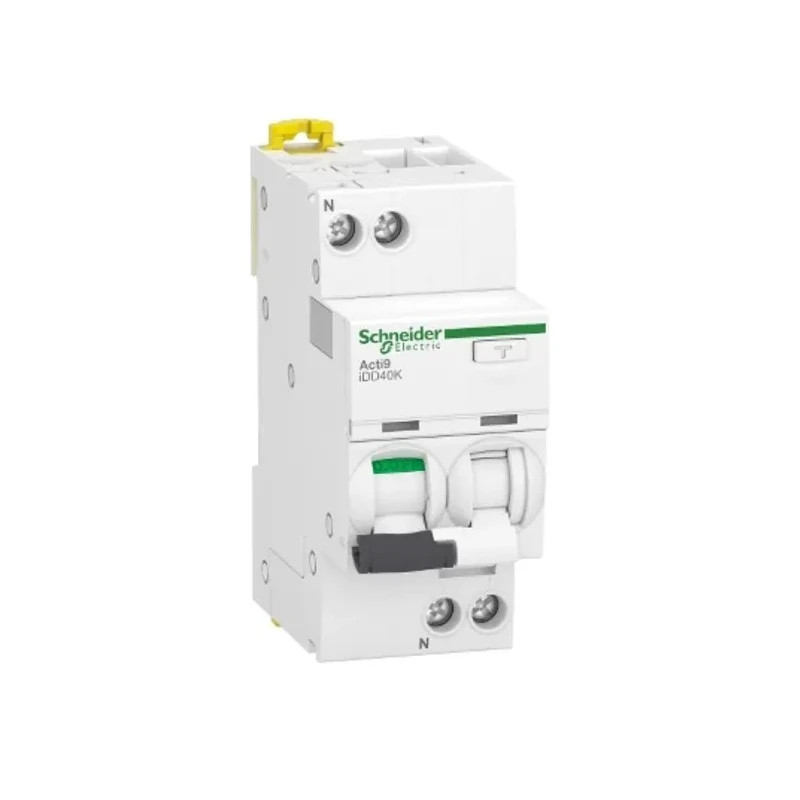

Schneider Electric Residual Current Circuit Breaker with Overload Protection 16A, 1-Pole, 300mA Trip, Thermal A9DK5616

Schneider Electric A9DK5616 Residual Current Circuit Breaker with Overload Protection is designed to provide precise and reliable protection for electrical circuits by integrating residual current detection with thermal magnetic overload protection. It operates at a current rating of 16 amperes and features a single pole configuration suitable for residential, overcurrent protection, and electrical distribution applications.

This device has a trip sensitivity of 300mA, ensuring effective earth leakage protection in accordance with AC earth leakage protection type. Its thermal magnetic tripping mechanism allows fast response to overloads and short circuits, delivering enhanced safety and circuit integrity. The mounting type is DIN Rail, widely adopted for easy and secure installation in electrical panels.

Dimensionally compact at 36mm width, 85mm height, and 73mm depth, this breaker fits neatly into electrical boards without consuming excessive space. The breaker also has a breaking capacity of 4.5kA, indicating its ability to safely interrupt fault currents and prevent damage to the system.

The reset actuator features a toggle switch with clear ON/OFF and trip indicator, enabling easy manual control and status monitoring. It meets rigorous industry standards including RoHS and EN/IEC 60947-2, assuring compliance with safety and environmental directives.

The product is manufactured in Spain and classified as a Schneider Green premium class product, emphasizing environmental responsibility. Electrical durability is rated for 20000 operational cycles, supporting long-term reliability in electrical installations. The circuit breaker is padlockable for enhanced security in operational environments.

This Residual Current Circuit Breaker is ideal for use in industrial, residential, commercial, and HVAC electrical protection frameworks, providing effective defense against overloads and earth leakage faults, thereby safeguarding personnel and equipment.

This circuit breaker features a 300mA trip sensitivity for earth leakage protection. Thermal magnetic tripping mechanism ensures protection against overload and short circuits. DIN rail mounting type allows easy installation and integration.

Rated AC voltage of 230V suitable for residential and light commercial applications. Tunnel-type terminals provide secure and stable wiring connection. Compact dimensions: 36mm width, 85mm height, and 73mm depth for space saving.

Breaking capacity of 4.5kA ensures safe interruption of fault currents. Toggle switch reset actuator with ON/OFF and trip indicator for user convenience. Electrical durability rated at 20000 cycles for long service life.

Compliant with RoHS and EN/IEC 60947-2 standards for safety and environmental regulations. For more detailed product specifications and to explore other Schneider Electric circuit protection components, browse the Electronics & Electricals category at EnvMart.
