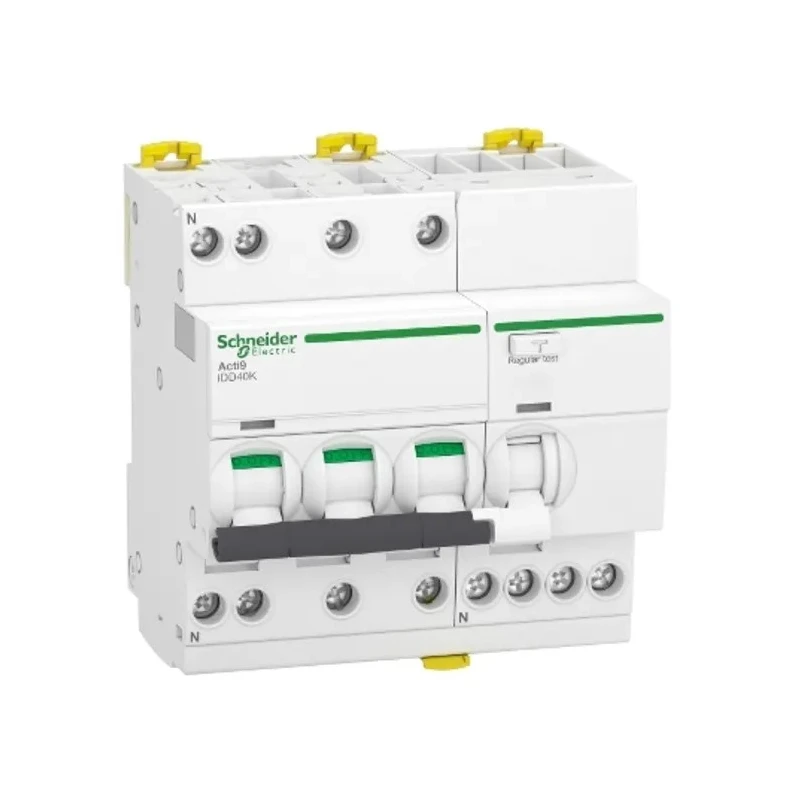

Schneider Electric Residual Current Circuit Breaker with Overload Protection 20A Current Rating 3-Pole 30 mA Trip A9DK1720
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 93mm |
| Model | A9DK1720 |
| Depth | 73mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | Acti9 iDD40K |
| Terminal type | Tunnel |
| Breaking Capacity | 4.5kA |
| Number of Poles | 3 |
| Standards/Approvals | EN/IEC 60947-2, RoHS |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | AC |
Key Features
- This breaker features thermal magnetic tripping mechanism for reliable overload and short circuit protection.
- It is designed for DIN rail mounting with a toggle switch reset actuator.
- The product complies with EN/IEC 60947-2 and RoHS standards for safety and environmental requirements.
- The breaker supports a rated AC voltage of 400V and breaking capacity of 4.5 kA.
- Compact dimensions of 90mm width, 93mm height, and 73mm depth provide efficient space utilization.
- It includes a tunnel terminal type and instantaneous earth-leakage protection with 30 mA trip sensitivity.
- Suitable for residential and distribution applications offering reliable overcurrent and earth leakage protection.
- Impulse withstand voltage is rated at 4 kV and electrical durability extends to 20,000 cycles.
Product Description
Schneider Electric A9DK1720 Residual Current Circuit Breaker with Overload Protection is engineered for superior circuit safety with a 20A current rating in a 3-pole arrangement and a 30 mA trip sensitivity for earth leakage protection.
The breaker integrates thermal magnetic trip unit technology delivering instantaneous response to short circuits and overloads, ensuring protection of residential and distribution electrical systems. Its toggle switch actuator offers straightforward ON/OFF control and trip indication for maintenance ease.
Designed for DIN rail mounting, this compact device measures 90 mm wide, 93 mm high, and 73 mm deep, facilitating installation in confined panels. It features tunnel terminal connections for secure wiring and supports an AC voltage rating of 400V with a 4.5 kA breaking capacity.
The product meets stringent standards such as EN/IEC 60947-2 and RoHS, guaranteeing compliance with international safety and environmental regulations. It withstands impulse voltages up to 4 kV and electrically endures up to 20,000 operation cycles, confirming high reliability and longevity.
Operating temperature ranges from -5°C to 60°C with relative humidity tolerance up to 95% at 55°C, making it suitable for various environmental conditions. Its padlockable feature enhances user safety by allowing secure locking to avoid accidental toggling.
This breaker provides effective overload and earth leakage protection, essential for residential and distribution electrical applications. Thermal magnetic tripping mechanism allows responsive action against electrical faults.
Compact and efficient form factor suits multiple mounting environments. Complies with key international electrical safety and RoHS environmental standards. Padlockable toggle switch offers added security.
Ideal for industrial, commercial, and residential use, this Schneider Electric product from the Acti9 series ensures comprehensive circuit protection. Explore more circuit protection solutions with EnvMart for your electrical safety requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 20A.
The breaking capacity is rated at 4.5 kA.
It measures 90 mm in width, 93 mm in height, and 73 mm in depth.
It is designed for DIN rail mounting.
The trip sensitivity is 30 mA, providing earth leakage protection.
It complies with EN/IEC 60947-2 and RoHS standards.
The rated AC voltage is 400V.
It features a thermal magnetic tripping mechanism.
The operating temperature ranges from -5°C to 60°C.
This circuit breaker has a 3-pole configuration.
It includes tunnel terminal connections for secure wiring.
It is rated for up to 20,000 operation cycles.
