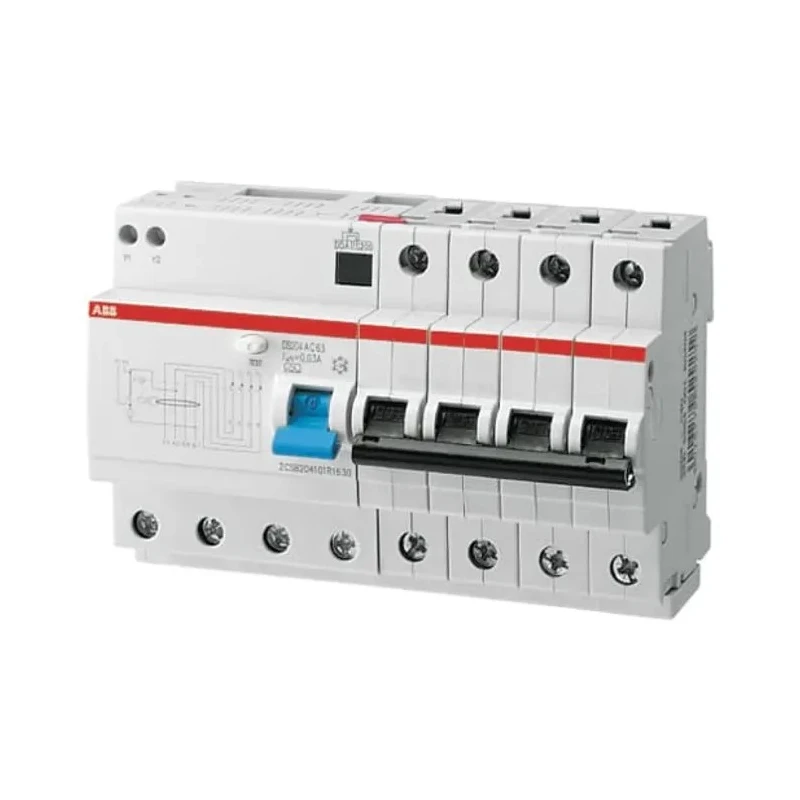

ABB Residual Current Circuit Breaker with Overload Protection DS200 Series, 16A, 4-Pole, 30 mA Trip 2CSR254101R1164

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Circuit Breaker with Overload Protection DS200 Series, 16A, 4-Pole, 30 mA Trip 2CSR254101R1164



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	DS200
Brand	ABB
Height	93mm
Model	2CSR254101R1164
Depth	69mm
Width	105mm
Standards	IEC/EN 60947-2
Current Rating	16A
Series	DS200
Breaking Capacity	10kA
Number of Poles	4
Standards/Approvals	UL/CSA, IEC/EN 61009-1, IEC/EN 60947-2
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Earth Leakage Protection Type	Type A
Operating Characteristic	Instantaneous

Key Features

Provides 16A current rating suitable for residential and commercial electrical systems.
Equipped with 4 poles ensuring comprehensive circuit protection.
Features 30 mA trip sensitivity for effective residual current detection.
Designed for 400V AC voltage rating ensuring compatibility with standard electrical supplies.
Type C tripping characteristic provides balance between protection and selectivity.
Compact dimensions of 93mm height, 105mm width, and 69mm depth allow flexible installation.
Includes a lever type reset actuator for easy manual resetting.
Complies with international standards UL/CSA, IEC/EN 61009-1, and IEC/EN 60947-2 for safety and quality assurance.

Product Description

ABB 2CSR254101R1164 Residual Current Circuit Breaker with Overload Protection from the DS200 series is engineered to provide reliable protection against overload, short-circuit currents, and sinusoidal alternating earth fault currents. This device safeguards electrical installations by preventing indirect and direct contact hazards, making it ideal for residential, commercial, and light industrial applications.

With a rated current of 16 amperes and 4 poles, this circuit breaker ensures comprehensive circuit interruption under fault conditions. The 30 mA trip sensitivity enhances earth leakage detection, further protecting against electric shocks and fire hazards.

The device operates at a rated alternating voltage of 400 V AC and features a Type C instantaneous tripping characteristic, providing balanced protection tailored for general electrical circuits with moderate transient currents. Its compact dimensions (Height: 93 mm, Width: 105 mm, Depth: 69 mm) facilitate installation in a variety of electrical panels.

The lever reset actuator allows for user-friendly manual reset after tripping events. Conformity with international standards UL/CSA, IEC/EN 61009-1, and IEC/EN 60947-2 guarantees compliance with stringent safety, durability, and performance criteria.

Manufactured in Italy, the product upholds superior quality workmanship and reliability. The ABB DS200 series RCBOs are well-suited for applications requiring short circuit protection, overload protection, and earth leakage detection in residential, commercial, HVAC, industrial automation, and manufacturing environments.

Provides 16A current rating suitable for residential and commercial electrical systems. Equipped with 4 poles ensuring comprehensive circuit protection. Features 30 mA trip sensitivity for effective residual current detection.

Designed for 400V AC voltage rating ensuring compatibility with standard electrical supplies. Type C tripping characteristic provides balance between protection and selectivity. Compact dimensions of 93mm height, 105mm width, and 69mm depth allow flexible installation.

Includes a lever type reset actuator for easy manual resetting. Complies with international standards UL/CSA, IEC/EN 61009-1, and IEC/EN 60947-2 for safety and quality assurance. Manufactured in Italy assuring high build quality.

Enhance your electrical safety and reliability with the ABB DS200 Residual Current Circuit Breaker, designed for efficient short circuit and earth fault protection. Explore more products and solutions in EnvMart to meet your electrical protection requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The circuit breaker has a current rating of 16A, making it suitable for residential and commercial electrical systems.

This model is equipped with 4 poles, ensuring comprehensive circuit protection.

It features a trip sensitivity of 30 mA, which is effective for residual current detection.

The rated AC voltage for this circuit breaker is 400V, ensuring compatibility with standard electrical supplies.

The dimensions are 93 mm in height, 105 mm in width, and 69 mm in depth, allowing for flexible installation.

This model has a Type C tripping characteristic, providing a balance between protection and selectivity.

It complies with international standards including UL/CSA, IEC/EN 61009-1, and IEC/EN 60947-2 for safety and quality assurance.

The breaking capacity is rated at 10kA, which is suitable for protecting against overload and short-circuit conditions.

It includes a lever type reset actuator for easy manual resetting after tripping events.

This model is manufactured in Italy, ensuring high build quality.

It is suitable for residential, commercial, HVAC, industrial automation, and manufacturing environments requiring overload and earth leakage protection.

This circuit breaker provides Type A earth leakage protection, which is effective for detecting sinusoidal alternating earth fault currents.
