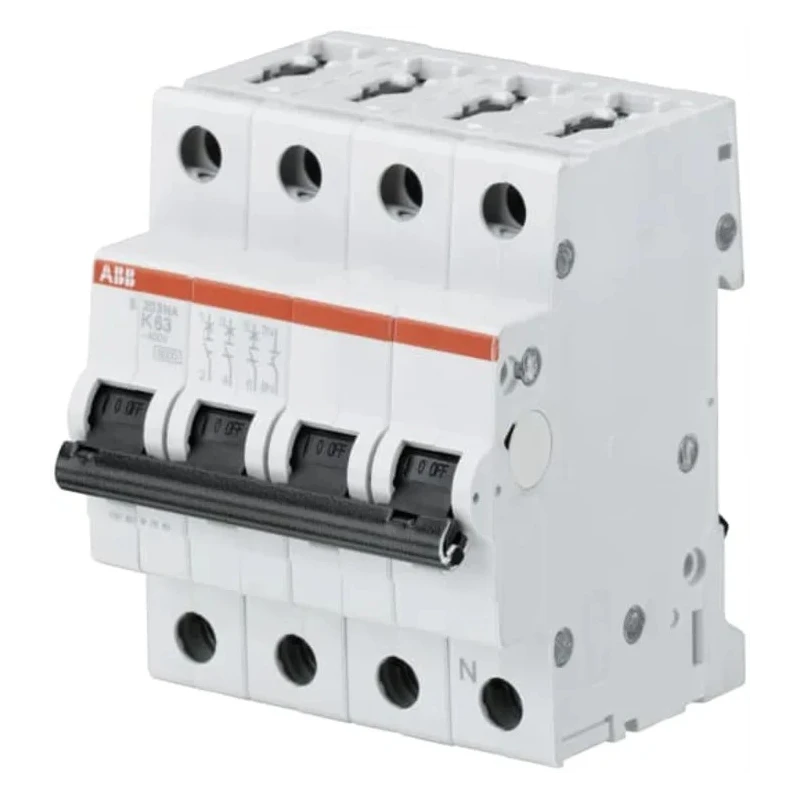

ABB System Pro M Compact S200 Miniature Circuit Breaker 3+N-Pole 10A Type K 440V AC 110V DC 20kA Breaking 2CDS253103R0427

ABB 2CDS253103R0427 is a System Pro M Compact S200 Miniature Circuit Breaker designed to provide reliable and efficient protection for electrical circuits in industrial, commercial, and residential installations. This three-plus-neutral pole MCB features a 10 ampere current rating and offers both AC and DC voltage compatibility, rated at 440V AC and 110V DC respectively. Its breaking capacity of 20kA ensures safety against short circuits by interrupting high fault currents.

The MCB utilizes two tripping mechanisms: a delayed thermal tripping system for overload protection and an electromechanical tripping mechanism for immediate response to short circuits. It features Type K tripping characteristics optimized for general load protection including inductive loads. The compact design with dimensions of 88mm in height, 70mm in width, and 69mm in depth allows integration into space-constrained electrical panels with ease.

Installation is simplified by screw terminals and rail mounting, providing firm and secure electrical connections. The breaker is rated with an ingress protection of IP20 and IP40, providing robust protection against dust and limited water ingress, suitable for a variety of environmental conditions. Operating ambient temperature ranges from -25°C to +55°C, ensuring dependable performance even in demanding settings.

Manufactured in Germany, this product complies with internationally recognized standards including UL1077, IEC/EN 60947-2, and IEC/EN 60898-1, certifying its quality and safety. ABB's Better World initiative is demonstrated through the breaker’s design for disassembly, highlighting sustainability and environmental responsibility in product lifecycle management.

This miniature circuit breaker is ideal for use in industrial automation, electrical distribution, commercial buildings, and infrastructure projects where reliable and precise circuit protection is critical. Its high breaking capacity and dual tripping mechanisms make it suitable for sensitive equipment and complex electrical systems requiring robust overload and short circuit protection.

Designed for rail mounting with screw terminal connections for secure installation. Offers dual tripping mechanisms: delayed thermal for overload and electromechanical for short circuits. Rated for both AC (440V) and DC (110V) voltages to cover various applications.

Provides type K tripping characteristics suitable for general use and sensitive loads. Compact dimensions with height 88mm, width 70mm, and depth 69mm facilitate space-saving panel design. IP20 and IP40 ratings offer protection against solid objects and limited ingress of water.

Conforms to international safety standards UL1077, IEC/EN 60947-2, and IEC/EN 60898-1 ensuring compliance and reliability. Manufactured in Germany with 'Designed for Disassembly' Better World Claim advocating sustainability.

Ambient operating temperature range from -25°C to +55°C for versatile environmental conditions. Breaking capacity of 20kA ensures high fault current interruption capabilities for industrial and commercial electrical distribution systems.
