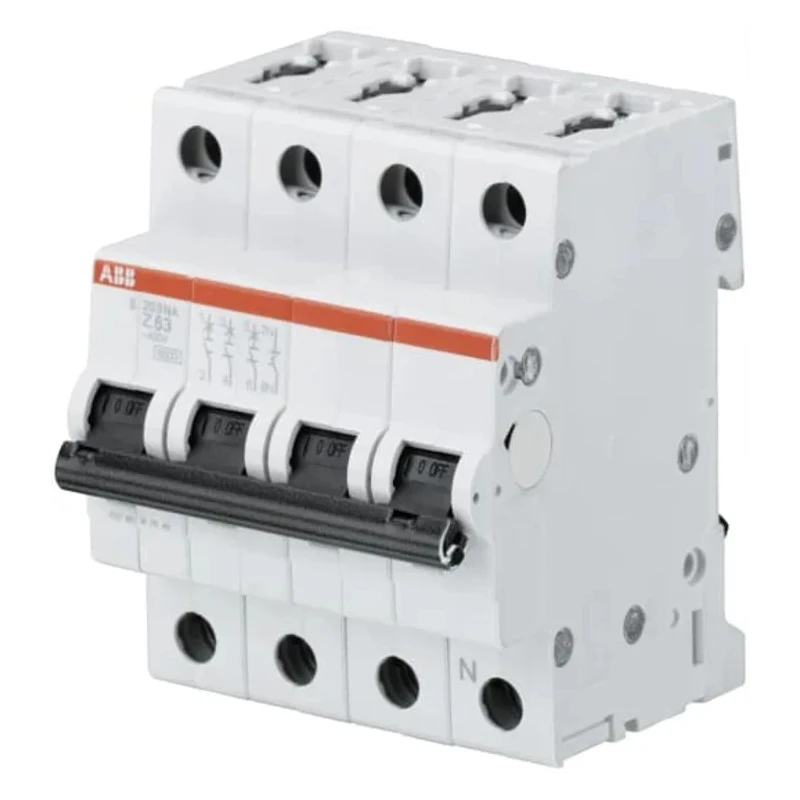

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3+N-Pole, 25A, Type Z, 440V AC, 110V DC, 6 kA 2CDS253103R0518

ABB 2CDS253103R0518 Miniature Circuit Breaker from the System Pro M Compact S200 series offers dependable electrical protection for industrial and commercial installations. Rated for 25 amperes and featuring a 3+N pole configuration, this breaker is designed to safeguard multi-phase circuits against overload and short circuits.

Equipped with a dual tripping mechanism including a delayed thermal trip for overload conditions and an electromechanical trip for short circuit protection, it presents reliable Type Z tripping characteristics tailored to specific electrical demands. The breaker supports a rated AC voltage of 440 volts and a rated DC voltage of 110 volts, making it suitable for diverse AC and DC power applications.

The device guarantees a breaking capacity of 6 kiloamperes, enabling it to interrupt high fault currents safely. Mounting is user-friendly via DIN rail with secure screw-type terminals ensuring firm electrical connections.

This miniature circuit breaker is protected with IP40 and IP20 ratings which shield it adequately against solid particles and accidental contact. Its compact form factor with dimensions of 88mm in height, 70mm in width, and 69mm in depth allows efficient use in electrical panels with limited space.

Certified according to UL1077, IEC/EN 60947-2, and IEC/EN 60898-1 standards, the breaker adheres to recognized international safety and quality benchmarks. Originating from Germany, it embraces high manufacturing standards ensuring durability and reliability in demanding environments.

Ideal for industrial, commercial, automation, and electrical distribution applications, this miniature circuit breaker supports efficient and safe power management. Features 3+N poles suitable for multi-phase systems. Rated current is 25A ensuring suitable overload protection.

Type Z tripping characteristic offers precise circuit protection. Operates at rated AC voltage of 440V and DC voltage of 110V. Breaking capacity of 6 kA provides robust short circuit interruption. Mounts easily on DIN rail with secure screw terminal connections.

Rated IP40 and IP20 for enhanced protection against environmental effects. Compact dimensions: 88mm height, 70mm width, and 69mm depth for efficient panel fitting. Constructed adhering to UL1077, IEC/EN 60947-2, and IEC/EN 60898-1 standards.

Manufactured in Germany ensuring high build quality and durability. Explore a broad range of ABB Miniature Circuit Breakers and related products in the Electrical & Electronics category at EnvMart for trusted protection solutions.
