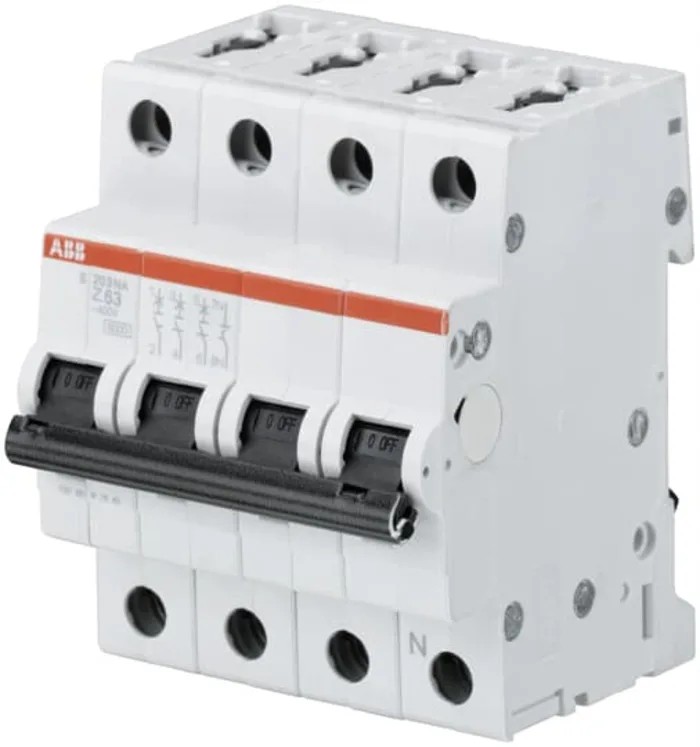

ABB System Pro M Compact S200 Miniature Circuit Breaker 3+N-Pole 4A Type Z 440V AC 110V DC 6kA Breaking 2CDS253103R0338
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS253103R0338 |
| Depth | 69mm |
| IP Rating | IP20 |
| Width | 70mm |
| Mount Type | DIN Rail |
| Current Rating | 4A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 3+N |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2, UL1077 |
| Rated AC Voltage | 440V ac |
| Rated DC Voltage | 110V dc |
| Tripping Characteristics | Type Z |
| Better World Claim | Designed for Disassembly |
Key Features
- Supports AC voltage up to 440V and DC voltage up to 110V.
- Equipped with 6kA breaking capacity for reliable circuit protection.
- Designed for DIN rail mounting with screw terminal type.
- Features IP20 protection rating ensuring basic safe operation.
- Complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards.
- Offers thermal and electro-mechanical tripping mechanisms for overload and short circuit protection.
- Designed for disassembly supporting sustainability goals.
Product Description
ABB 2CDS253103R0338 System Pro M Compact S200 Miniature Circuit Breaker is a high-quality protective device designed for industrial and commercial electrical applications. Rated for 3+N poles and a current rating of 4 amps, this MCB features Type Z tripping characteristics suitable for selective circuit protection.
Operating over an AC voltage of 440V and DC voltage of 110V, it delivers a robust breaking capacity of 6 kA to safeguard electrical circuits from overloads and short circuits. The device mounts easily onto DIN rails, secured via screw terminals, offering practical installation and reliable connectivity.
The compact dimensions of 70mm width, 88mm height, and 69mm depth facilitate space-saving electrical panel assembly. It has an IP20 ingress protection rating, providing basic protection against solid objects and safe operational standards.
Manufactured according to international standards IEC/EN 60898-1, IEC/EN 60947-2, and UL1077, this circuit breaker ensures compliance and high safety in usage. The combined thermal and electro-mechanical tripping mechanisms efficiently protect circuits from overload and short circuit faults.
The device is part of ABB's Better World initiative, designed for disassembly to promote sustainable practices in electrical component lifecycle management. It is ideal for industrial, manufacturing, electrical automation, HVAC, and commercial electrical distribution systems.
Supports AC voltage up to 440V and DC voltage up to 110V. Equipped with 6kA breaking capacity for reliable circuit protection. Designed for DIN rail mounting with screw terminal type. Features IP20 protection rating ensuring basic safe operation.
Complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards. Compact dimensions: 70mm width, 88mm height, and 69mm depth. Offers thermal and electro-mechanical tripping mechanisms for overload and short circuit protection.
Designed for disassembly supporting sustainability goals. Explore more ABB Miniature Circuit Breakers and System Pro M Compact series at EnvMart for robust electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a breaking capacity of 6 kA, providing reliable circuit protection against overloads and short circuits.
It supports an AC voltage of up to 440V and a DC voltage of up to 110V.
The dimensions are 70mm in width, 88mm in height, and 69mm in depth, facilitating space-saving installation.
This unit is designed for DIN rail mounting and features screw terminal connections for secure installation.
It features Type Z tripping characteristics, which are suitable for selective circuit protection.
This model has an IP20 protection rating, ensuring basic protection against solid objects.
It complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards, ensuring safety and reliability in use.
The current rating for this miniature circuit breaker is 4A.
It is ideal for industrial, manufacturing, electrical automation, HVAC, and commercial electrical distribution systems.
It offers both thermal and electro-mechanical tripping mechanisms for overload and short circuit protection.
The country of origin for this model is Germany.
It is designed for disassembly, supporting sustainability goals in electrical component lifecycle management.
